Microphone Circuit Between Multi-Display and Navigation ECU: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

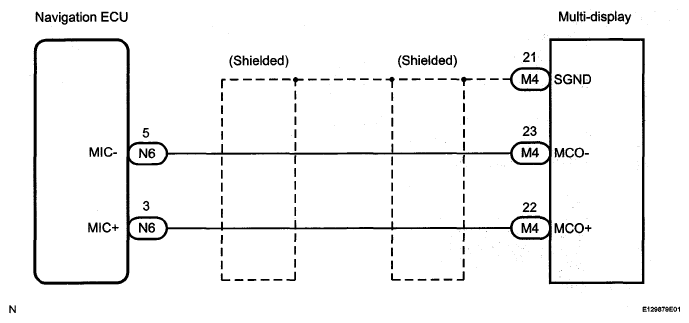

Fig 1: Identifying Microphone Circuit Between Multi-Display & Navigation ECU Wiring Diagram
G05270989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
