Rear Console Panel Upper: Replacement

HINT:

COMPONENTS: See REAR CONSOLE PANEL UPPER

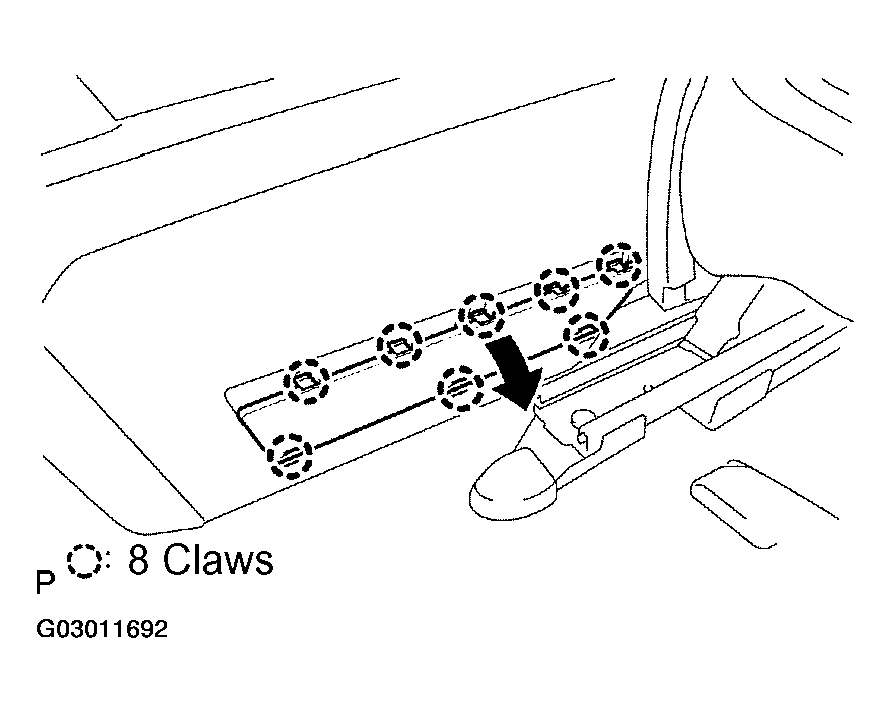

1. REMOVE CONSOLE BOX HOLE COVER
   1. Slide the front seat assy RH and LH forward.
   2. Slide the console box assy fully to the back end and remove the console box hole cover.
      Fig 1: Removing Console Box Hole Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE CONSOLE BOX HOLE COVER NO.2
3. REMOVE CONSOLE BOX ASSY

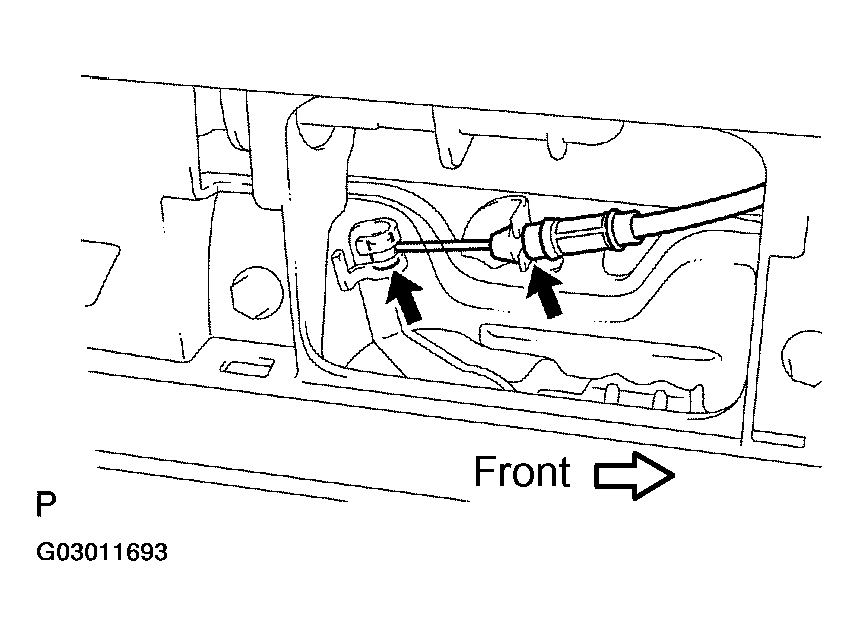

   1. Separate the console box lock control cable assy from the console box assy.
      Fig 2: Separating Console Box Lock Control Cable Assy From Console Box Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

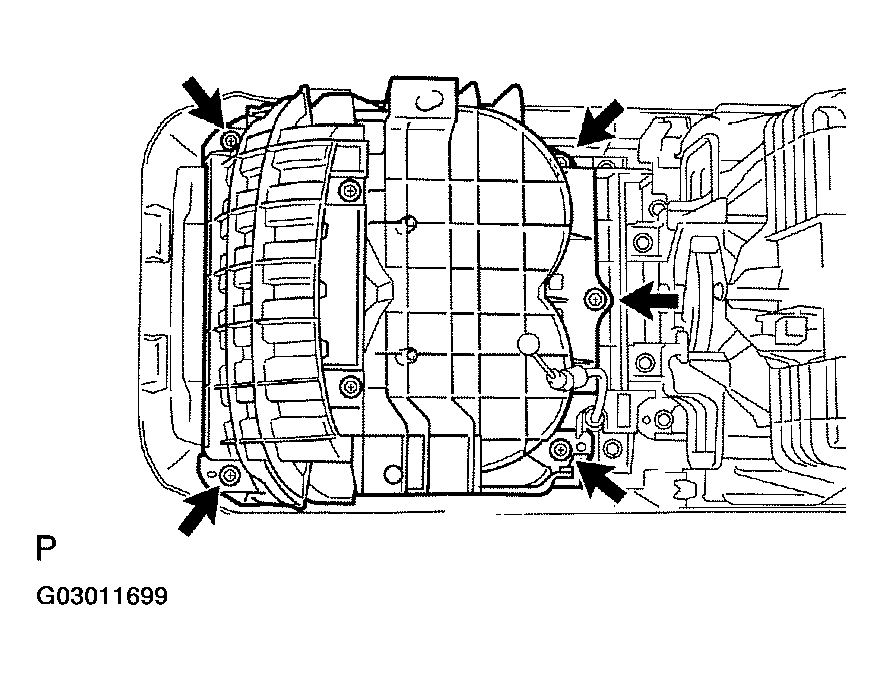

   2. Keeping the console box assy pulled in the rear direction of the vehicle, remove the 6 bolts from the left and right sides.
      Fig 3: Removing Bolts From Left And Right Sides

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

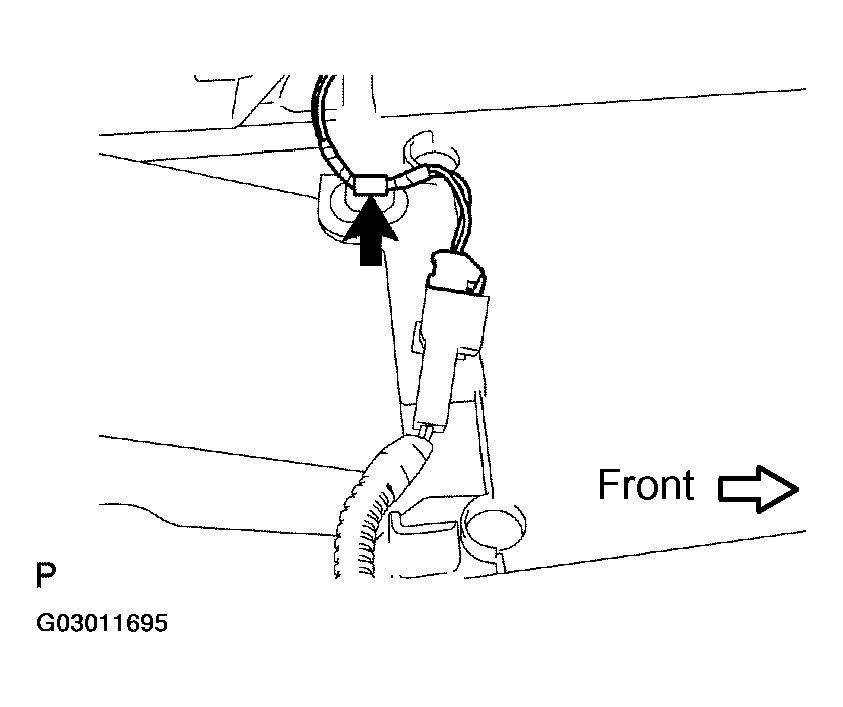

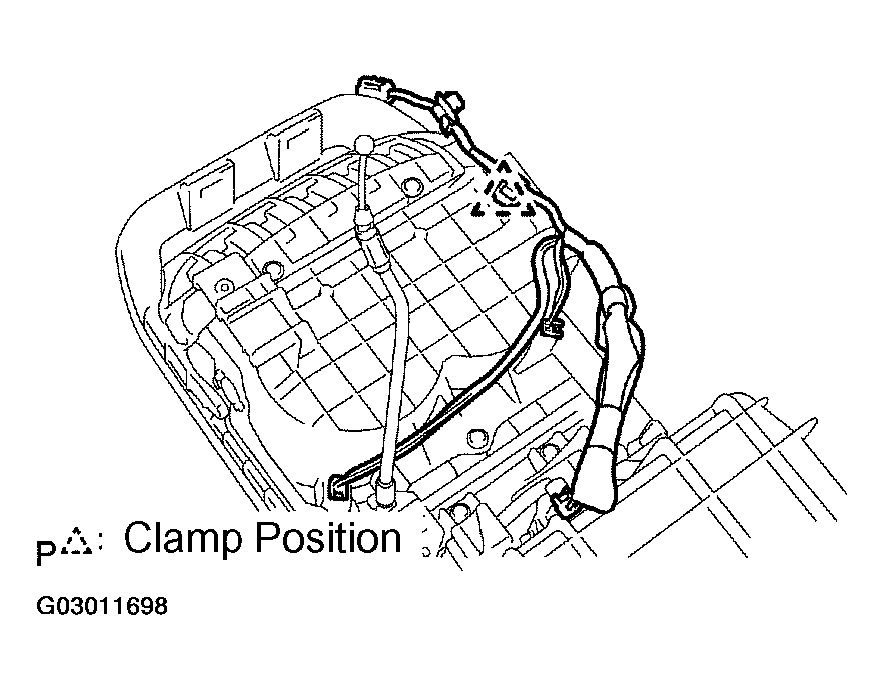

   3. Disconnect each clamp and the connector.
      Fig 4: Disconnecting Clamp And Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove the console box assy.
4. REMOVE CONSOLE BOX CUP HOLDER
   1. Remove the console box cup holder.

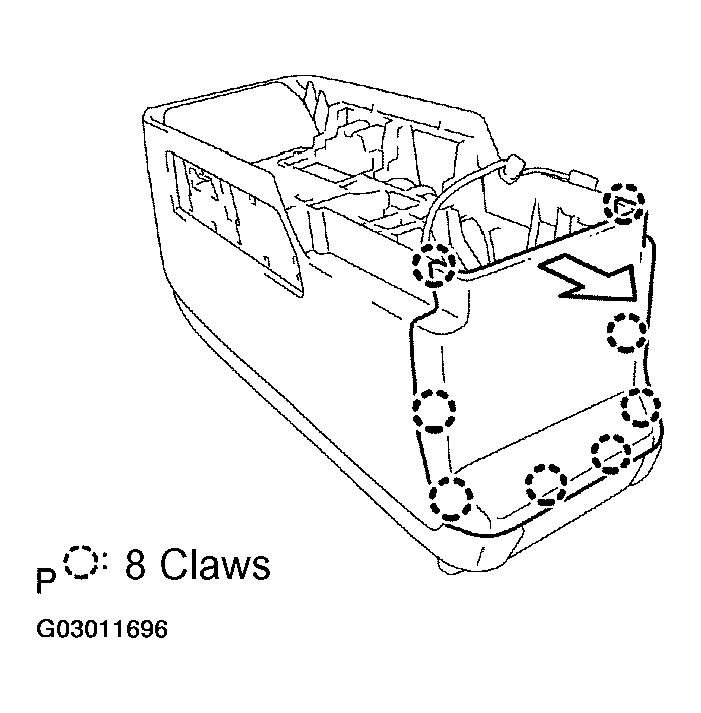

5. REMOVE BOX SIDE PANEL NO.1
   1. Disengage the 8 claws, and remove the box side panel No. 1.
      Fig 5: Removing Box Side Panel No. 1

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE REAR CONSOLE BOX LOWER

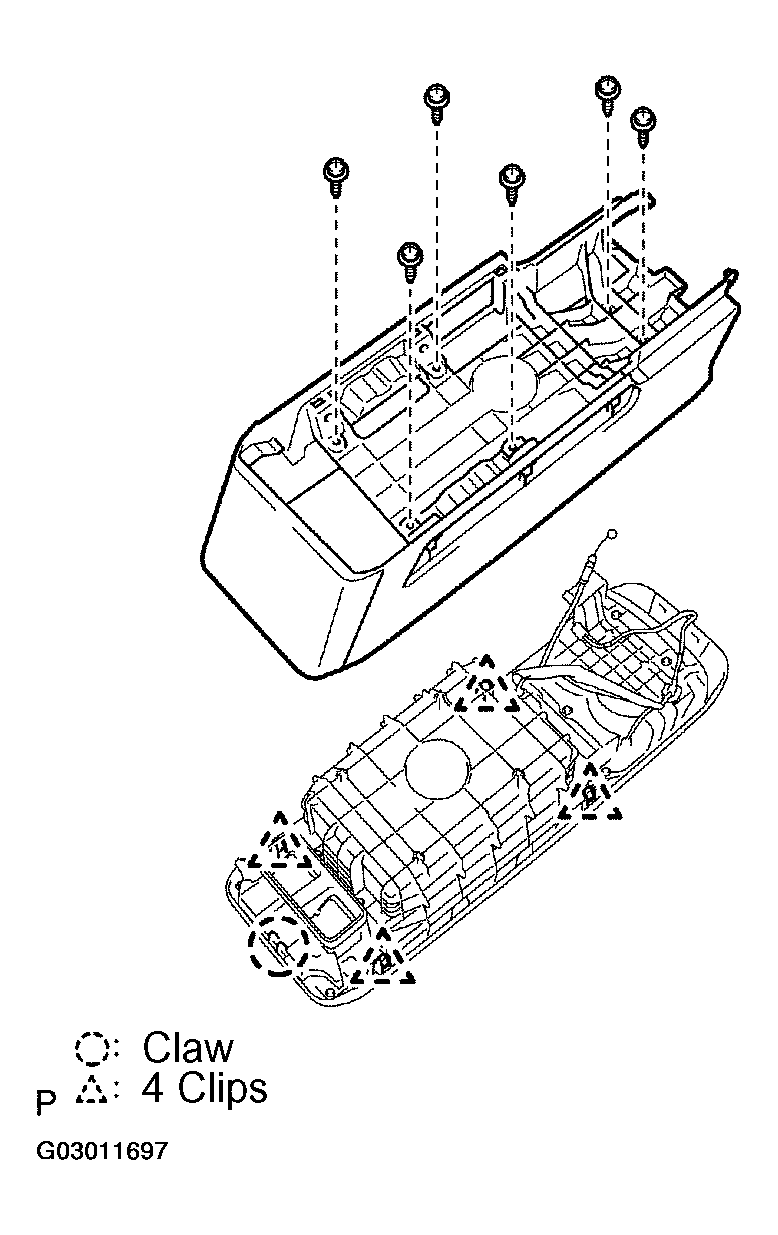

   1. Remove the 6 screws.
   2. Disengage the 4 clips and the claw, and remove the RR console box lower.
      Fig 6: Removing Rear Console Box Lower

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE CONSOLE BOX LAMP SUB-ASSY
   1. Disconnect each of the clamp and the connectors.
   2. Remove the console box lamp sub-assy.
      Fig 7: Disconnecting Of Clamp And Connectors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE REAR CONSOLE BOX HOLDER CUP
   1. Remove the 5 screws and the rear console box cup holder.
      Fig 8: Removing Rear Console Box Cup Holder Cup

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE CONSOLE UPPER PANEL GARNISH FRONT
   1. Remove the 4 screws and the console upper panel garnish front.
      Fig 9: Removing Screws Console Upper Panel Garnish Front

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

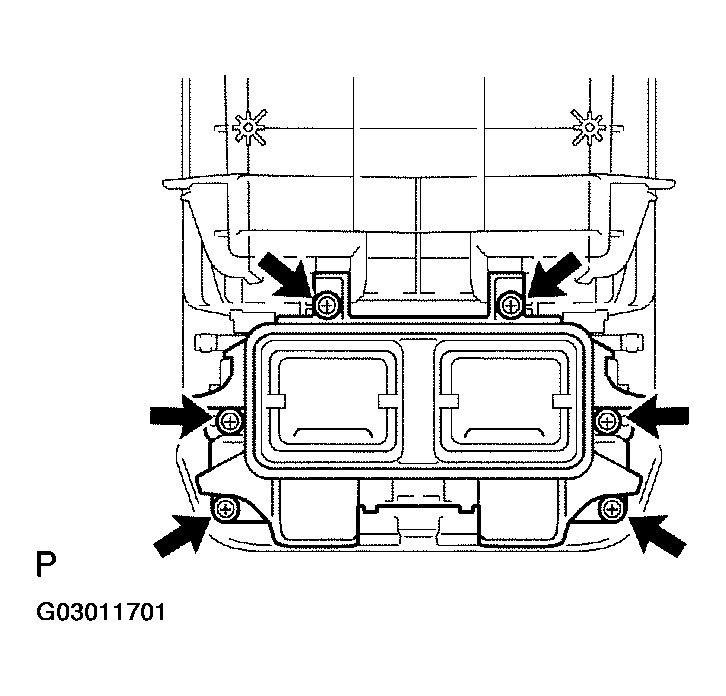

10. REMOVE CONSOLE BOX REGISTER ASSY

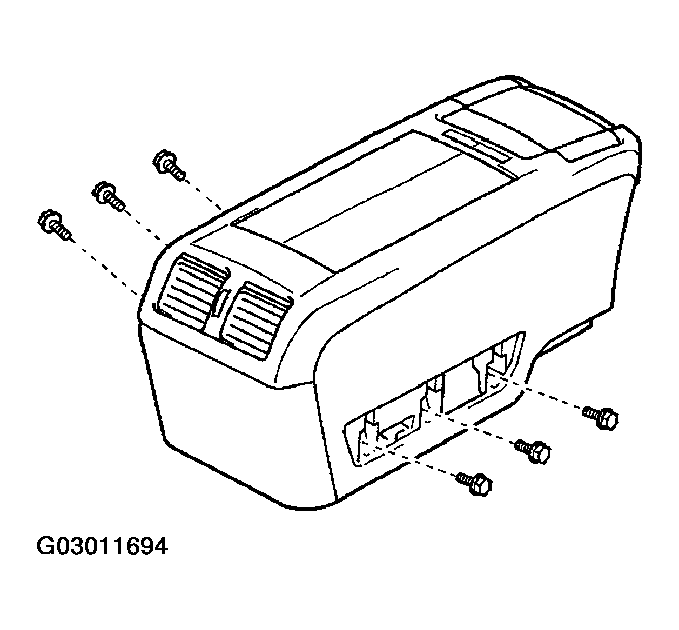

    1. Remove the 6 screws and the console box register assy.
       Fig 10: Removing Screws And Console Box Register Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

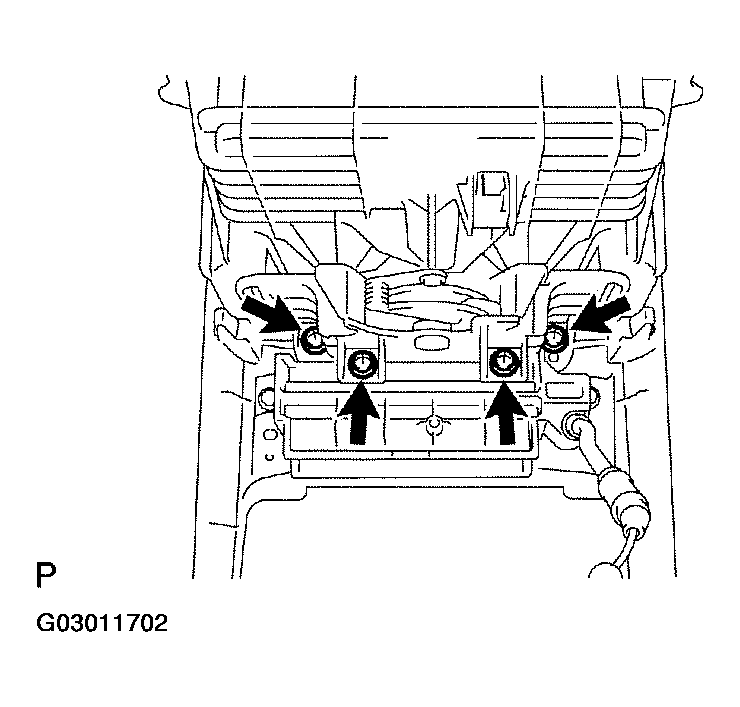

11. REMOVE CONSOLE BOX SUB-ASSY UPPER

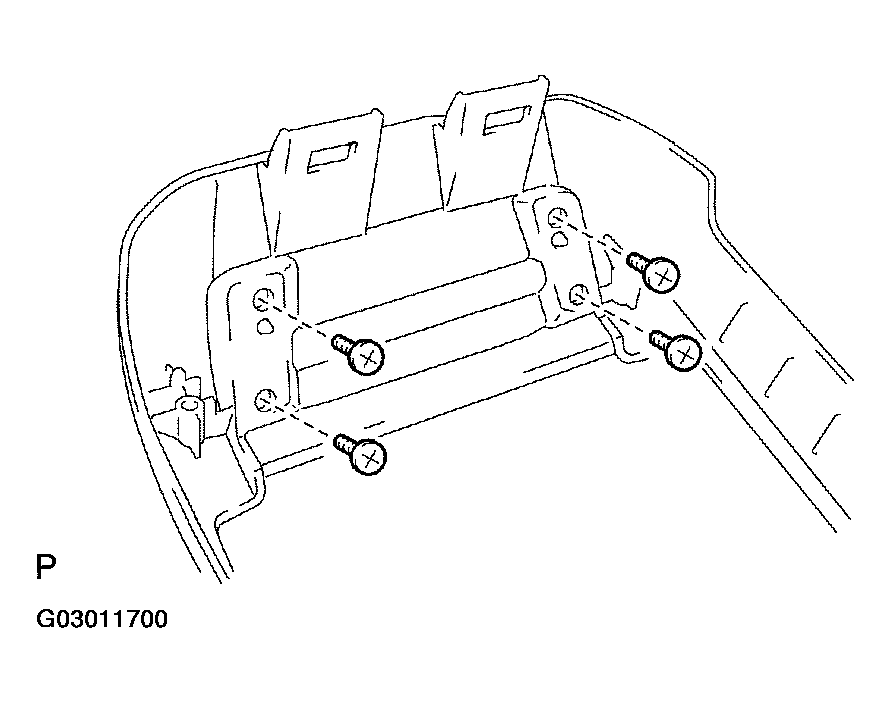

    1. Remove the 4 screws.
       Fig 11: Removing Console Box Sub-Assy Upper 4 Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

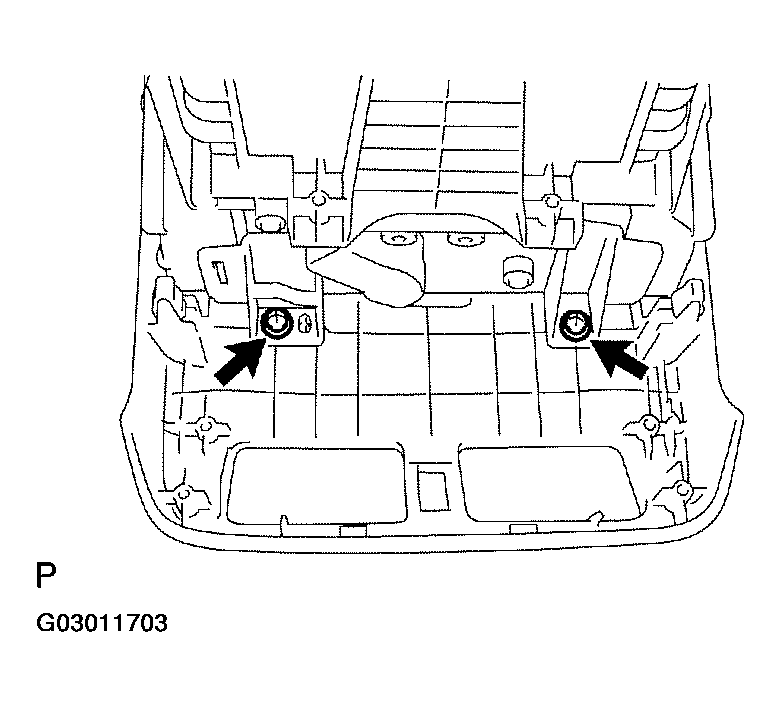

    2. Remove the 2 screws.
       Fig 12: Removing Console Box Sub-Assy Upper 2 Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

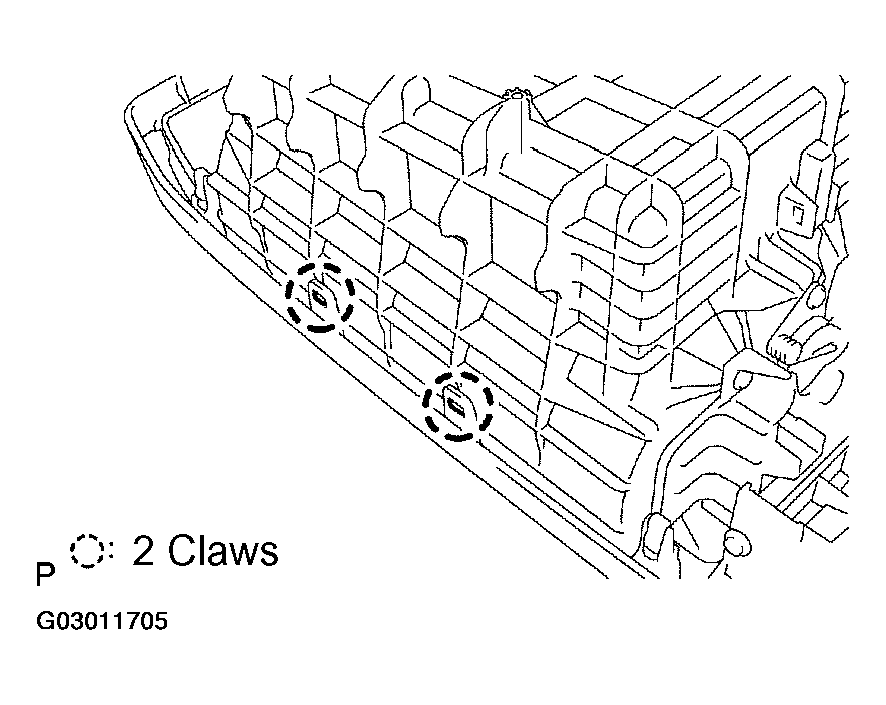

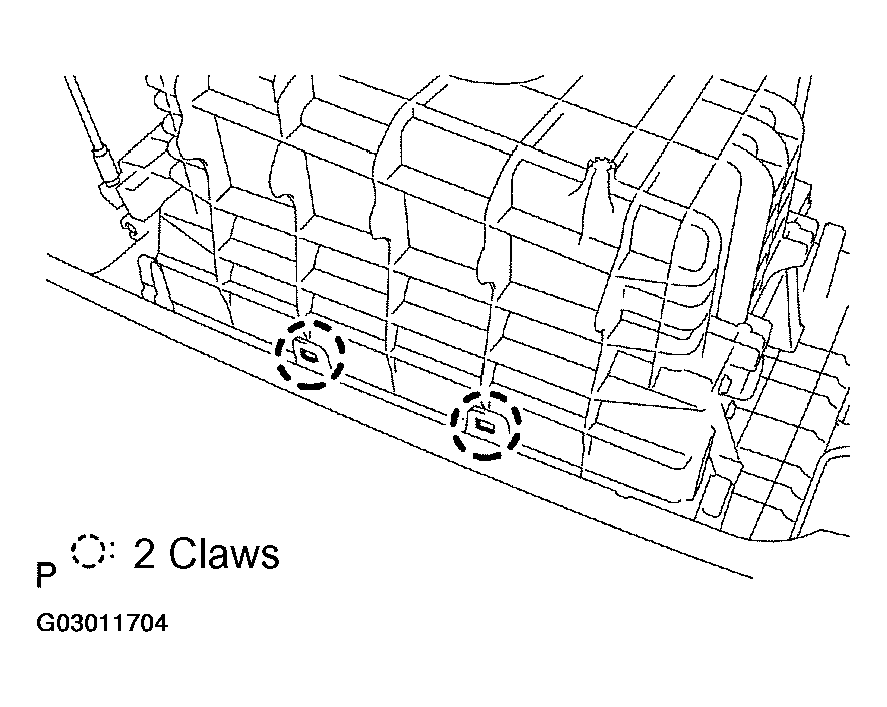

    3. Disengage the 2 claws.
       Fig 13: Disengaging Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 claws, and remove the console box sub-assy upper.
       Fig 14: Removing Console Box Sub-Assy Upper

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE CONSOLE COMPARTMENT DOOR LOCK LEVER

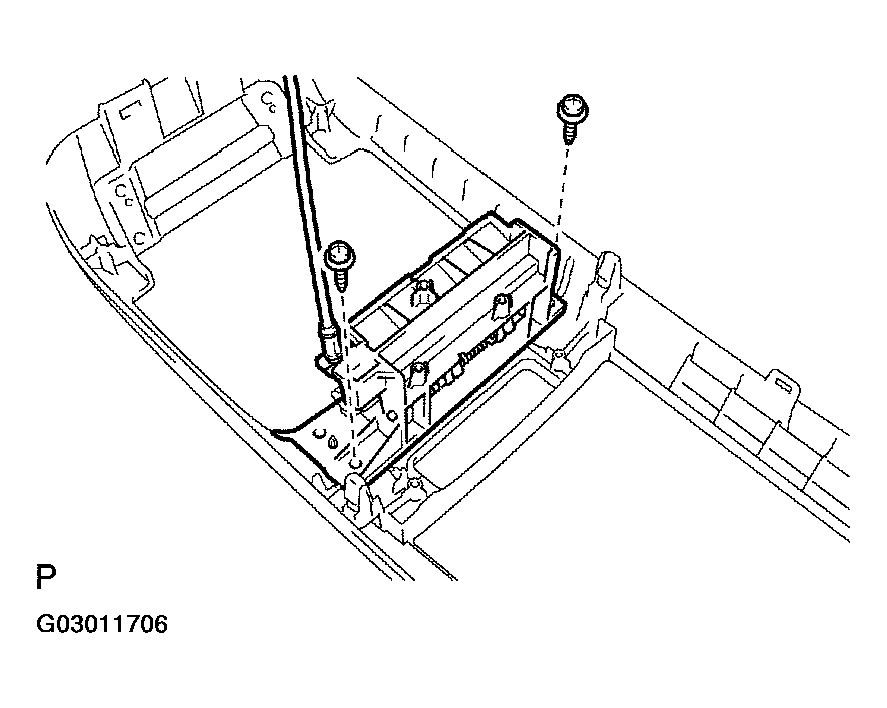

    1. Remove the 2 screws and the console compartment door lock lever.
       Fig 15: Removing Screws And Console Compartment Door Lock Lever

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE CONSOLE UPPER PANEL GARNISH REAR

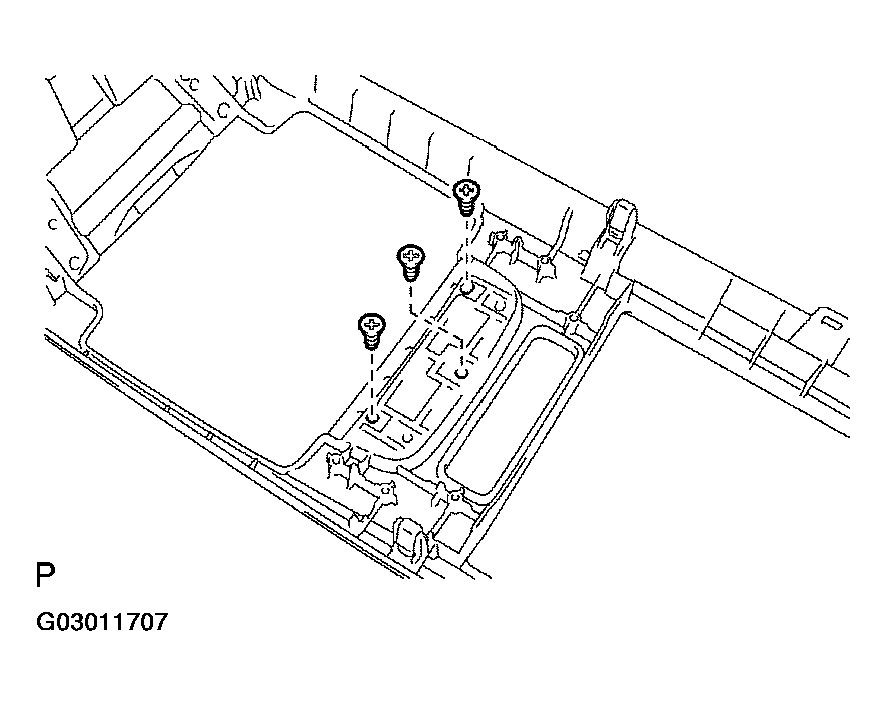

    1. Remove the 3 screws and the console upper panel garnish rear.
       Fig 16: Removing Console Upper Panel Garnish Rear

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. REMOVE REAR CONSOLE PANEL UPPER
