Memory Positioning Switch: Testing and Inspection

INSPECTION

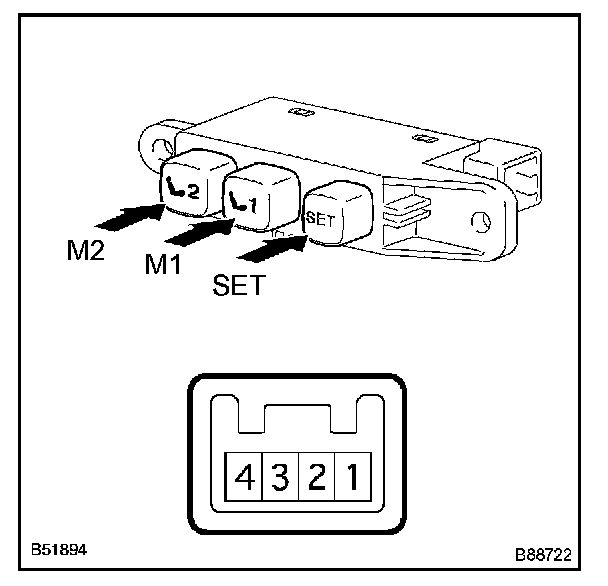

1. INSPECT SEAT MEMORY SWITCH LH

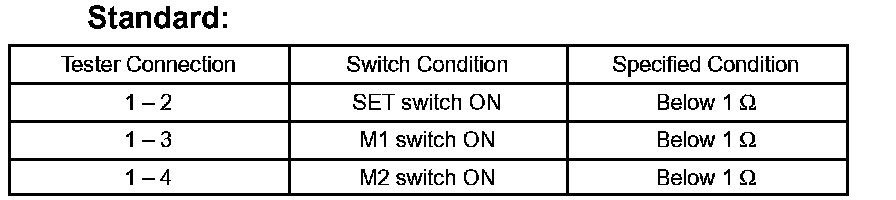

a. Measure the resistance of the switch .




If the result is not as specified, replace the memory switch.

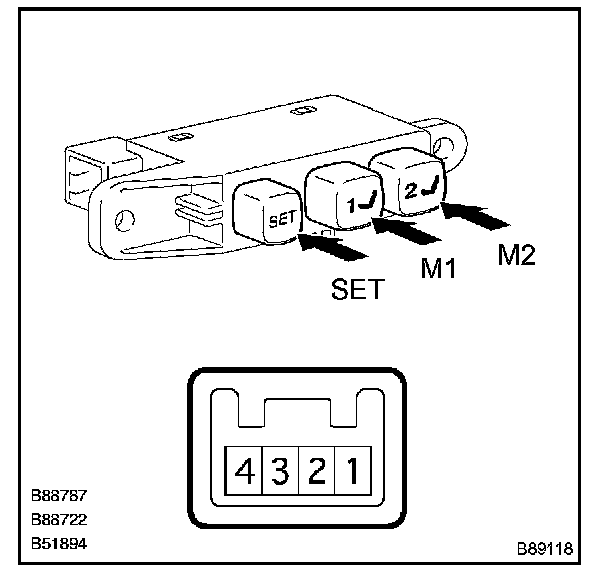

2. INSPECT SEAT MEMORY SWITCH RH

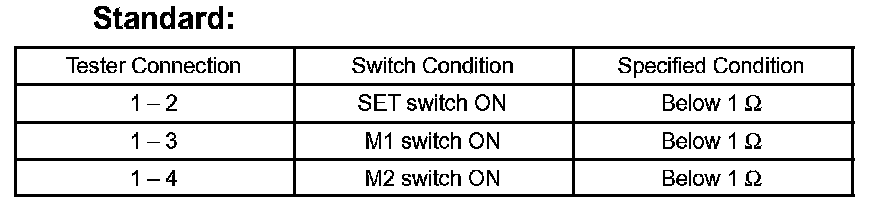

a. Measure the resistance of the switch .




If the result is not as specified, replace the memory switch.
