Steering Column Control Module: Testing and Inspection

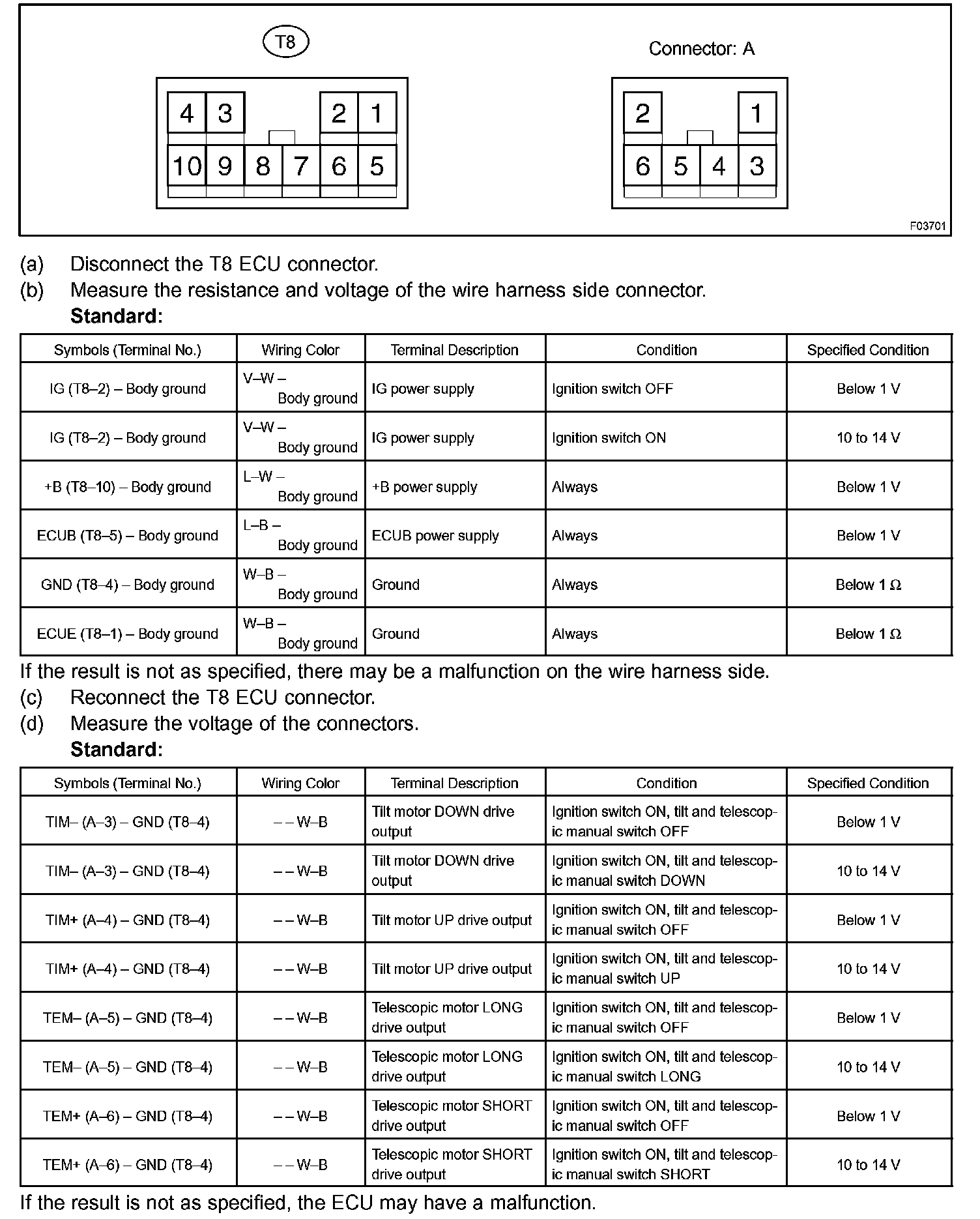

Terminals Of Control Module/Pinouts - Check Multiplex Network Tilt & Telescopic ECU Assy:

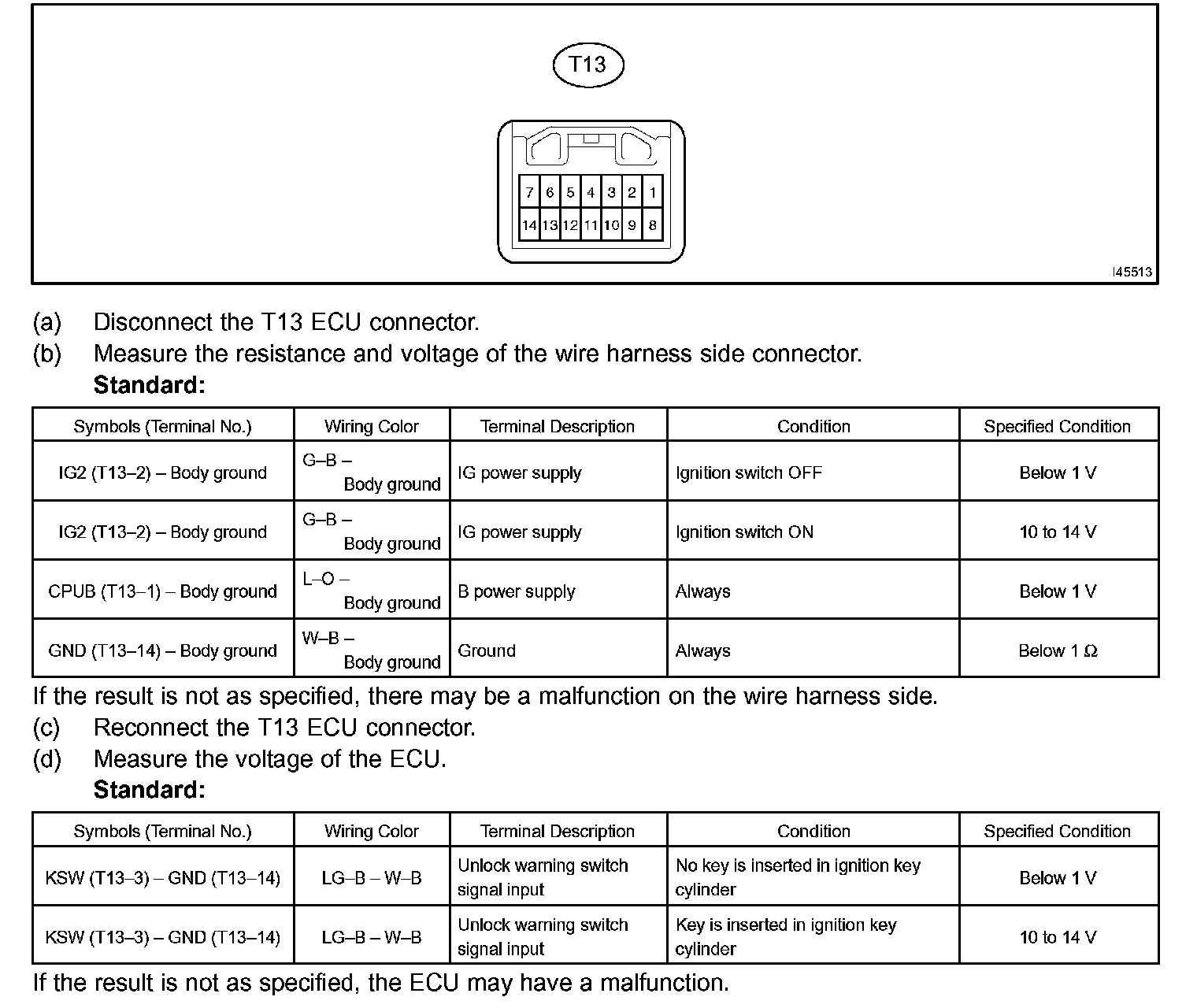

Terminals Of Control Module/Pinouts - Check Transponder Key ECU Assy:
