Key Confinement Prevention Function Does Not Work Properly (Unlock Warning Switch Circuit): Wiring Diagram

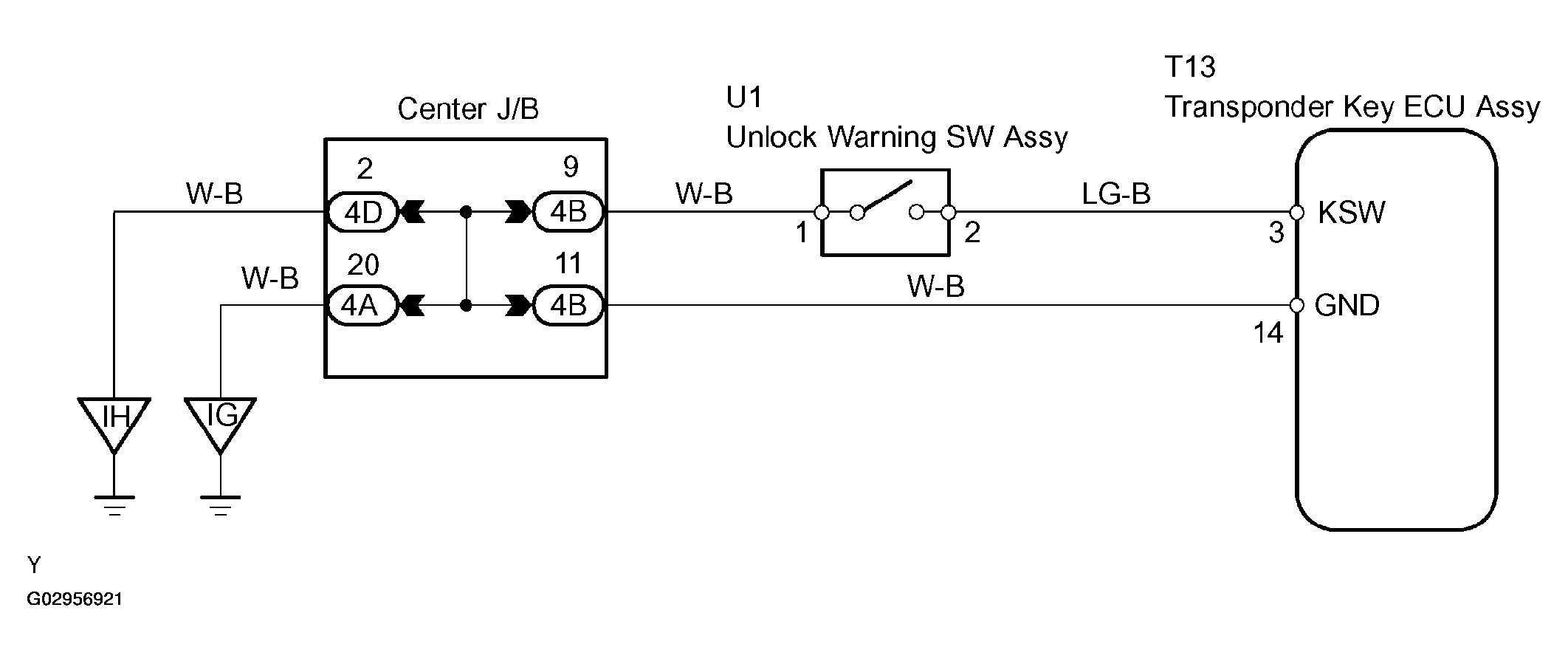

Fig 1: Identifying Warning Switch Wiring Diagram
G02956921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
