Data List/Active Test

HINT:

Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST according to the display on the tester.

   ECM (Cruise control):

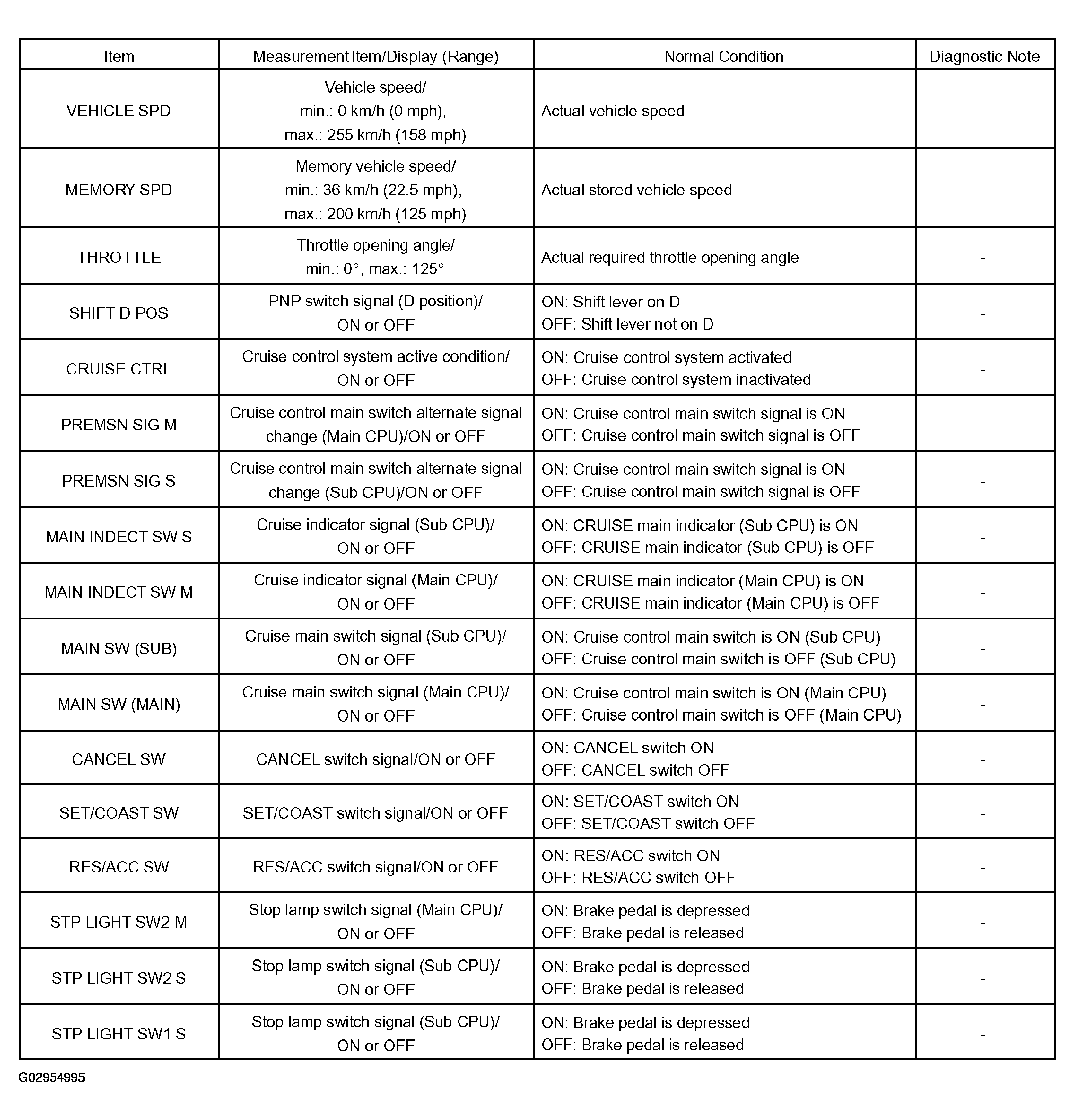

   Fig 1: ECM (Cruise Control) Data List Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the hand-held tester's ACTIVE TEST allows the relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed during the ACTIVE TEST.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Perform the ACTIVE TEST by following the directions on the tester screen.

   Combination meter assy:

   COMBINATION METER ASSY ACTIVE TEST



   Item	Test Details	Diagnostic Note
   CRUISE INDIC	Cruise indicator lamp/ON or OFF	Confirm that vehicle is stopped and engine is idling
