Navigation Check Mode (Parts Information)

HINT:

• This mode displays product information about the navigation systems and discs.
• Illustrations may differ from the actual vehicle depending on the device settings and options.

1. HOW TO PERFORM PARTS INFORMATION CHECK
   1. Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH  ).

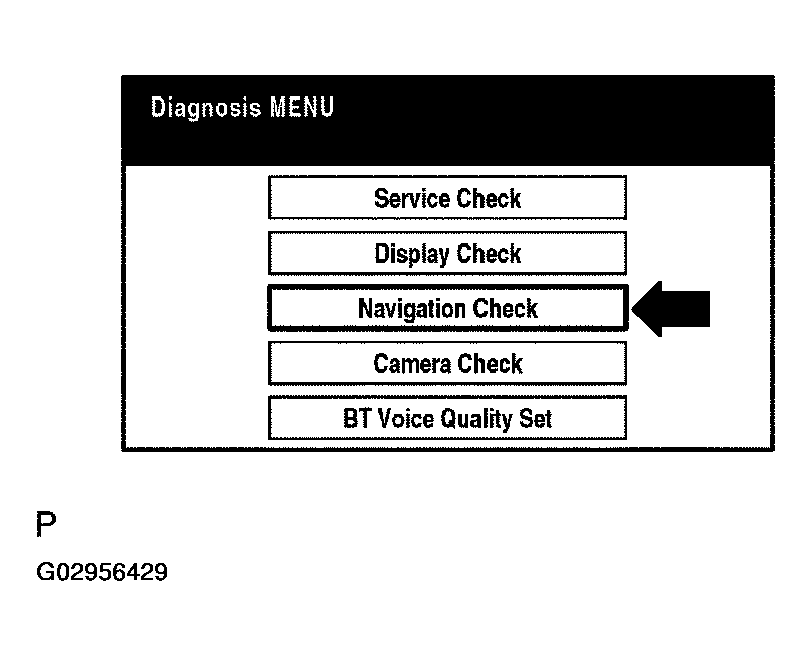

   2. Select "Navigation Check" from the "Diagnosis MENU" screen.
      Fig 1: Selecting "Navigation Check" From "Diagnosis MENU" Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

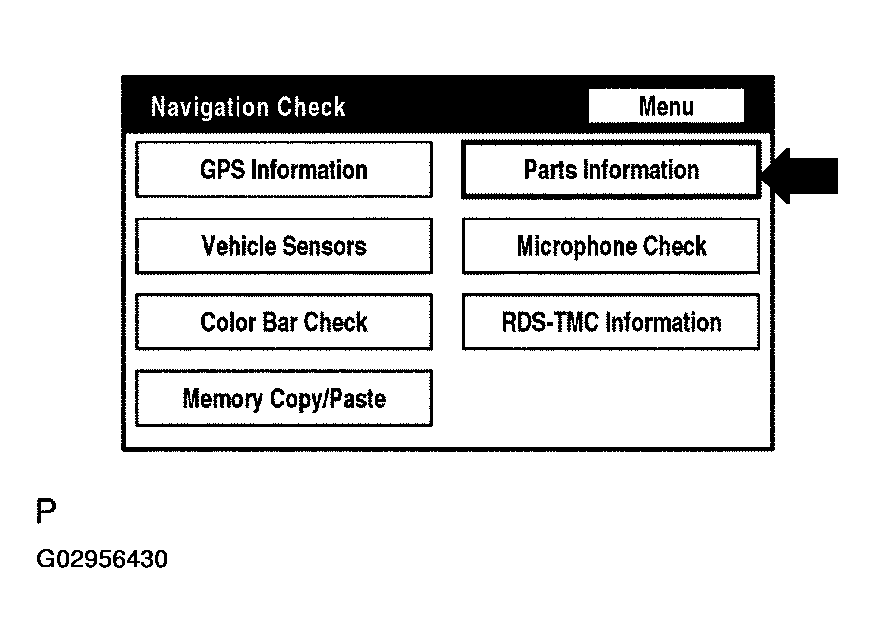

   3. Select "Parts Information" from the "Navigation Check" screen.
      Fig 2: Selecting "Parts Information" From "Navigation Check" Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

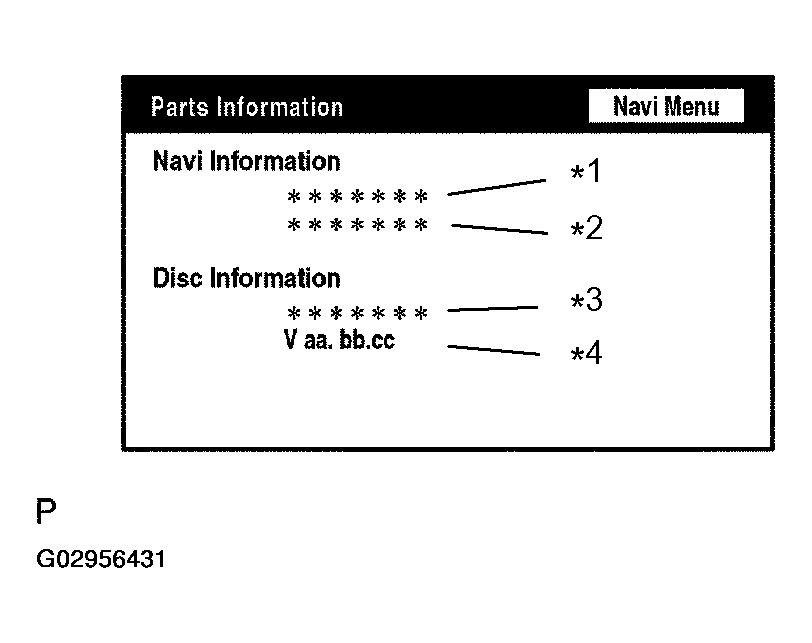

   4. Check the navigation and disc information when the "Parts Information" screen is displayed.
      Fig 3: Identifying "Parts Information" Display Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      DISPLAY CONTENTS



      Display	Contents
      Navigation Manufacturer/*1	Navigation ECU manufacturer name is displayed.
      Navigation Version/*2	Navigation ECU version is displayed.
      Disc Manufacturer/*3	Map disc manufacturer is displayed.
      Disc Version/*4	Map disc version is displayed.
