Inspection Procedure

  1. CHECK FOR ANY FOREIGN OBJECT
    1. Check that no foreign object is in the steering pad switch cover.

      OK: No foreign object.

    1. NG: REMOVE FOREIGN OBJECT
    2. OK: Go to next step.
  2. CHECK WIRE HARNESS (INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER - SPIRAL CABLE SUB-ASSY AND BODY GROUND)
    1. Disconnect the M6 panel connector.
    2. Disconnect the C10 cable connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard:

      INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER - SPIRAL CABLE SUB-ASSY AND BODY GROUND

      Tester Connection Specified Condition
      M6-2 (TLSW) - C10-1 (TLSW) Below 1 ohms
      M6-3 (TLSW-) - C10-4 (ECC) Below 1 ohms
      M6-3 (TLSW-) - Body ground Below 1 ohms

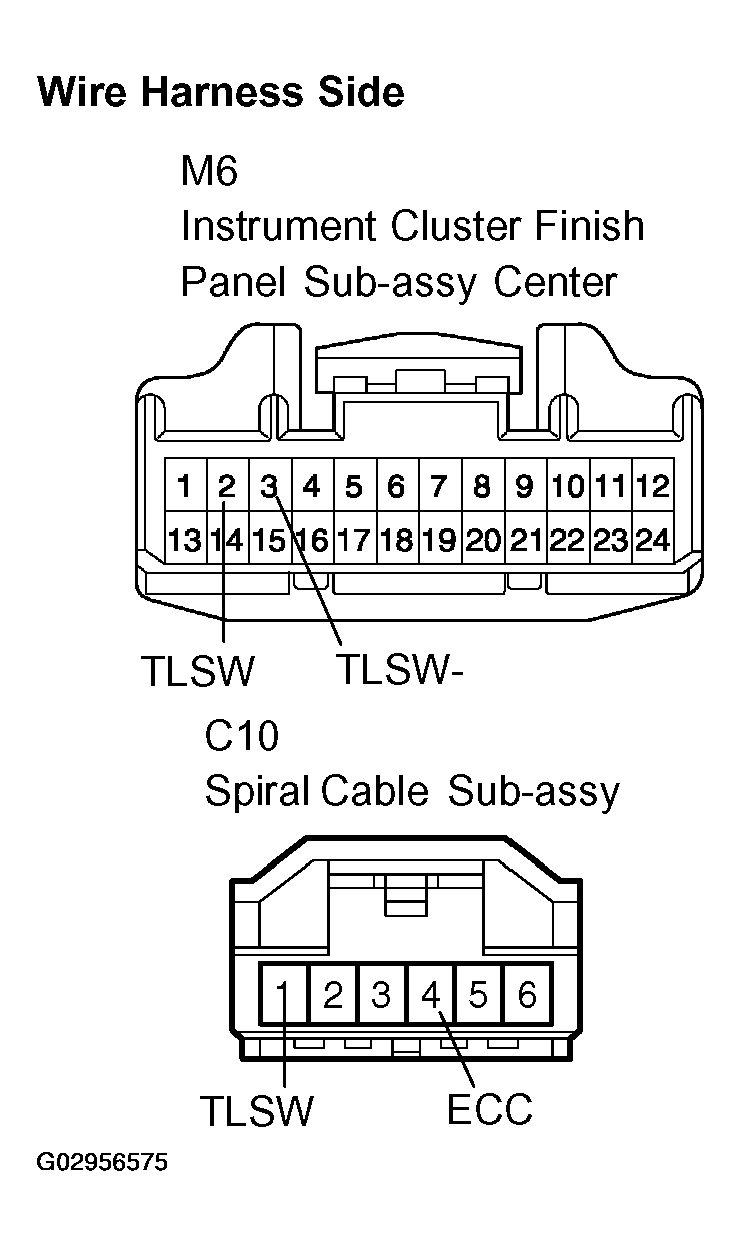

      Fig 1: Checking Wire Harness (Instrument Cluster Finish Panel Sub-Assy Center - Spiral Cable Sub-Assy & Body Ground)
      G02956575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: Go to next step.
  3. CHECK STEERING PAD SWITCH MODULATOR (TEL 2 VOLTAGE)
    1. Measure the voltage of the switch.

      Standard:

      STEERING PAD SWITCH MODULATOR (TEL 2 VOLTAGE)

      Tester Connection Condition Specified Condition
      4 (TLSW) - 6 (ECC) Steering pad TEL switch not pushed Below 5 V
      4 (TLSW) - 6 (ECC) Steering pad TEL switch pushed Below 1 V

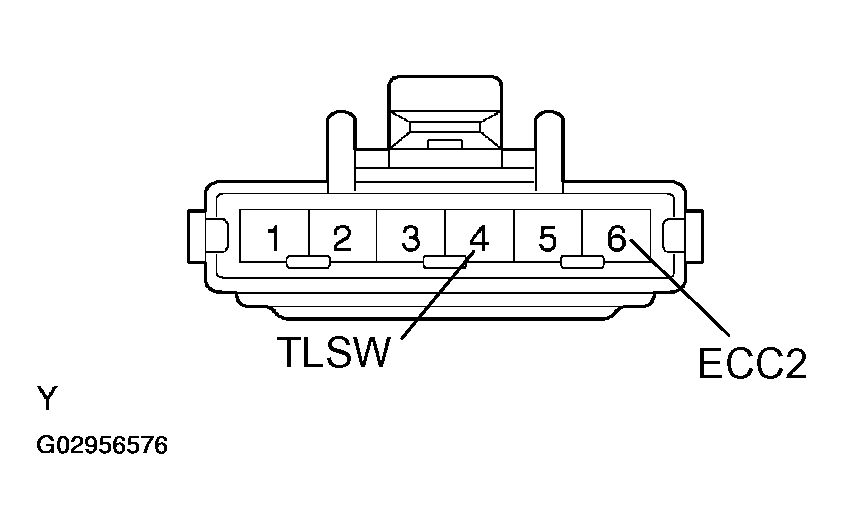

      Fig 2: Checking Steering Pad Switch Modulator (Tel 2 Voltage)
      G02956576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE STEERING PAD SWITCH MODULATOR (See  OVERHAUL  )
    2. OK: Go to next step.
  4. CHECK CRUISE CONTROL MAIN SWITCH ASSY
    1. Disconnect the switch connectors.
    2. Measure the resistance of the switch.

      Standard:

      CRUISE CONTROL MAIN SWITCH ASSY

      Tester Connection Specified Condition
      A-1 (TLSW) - B-6 (TLSW) Below 1 ohms
      A-4 (ECC) - B-4 (ECC2) Below 1 ohms

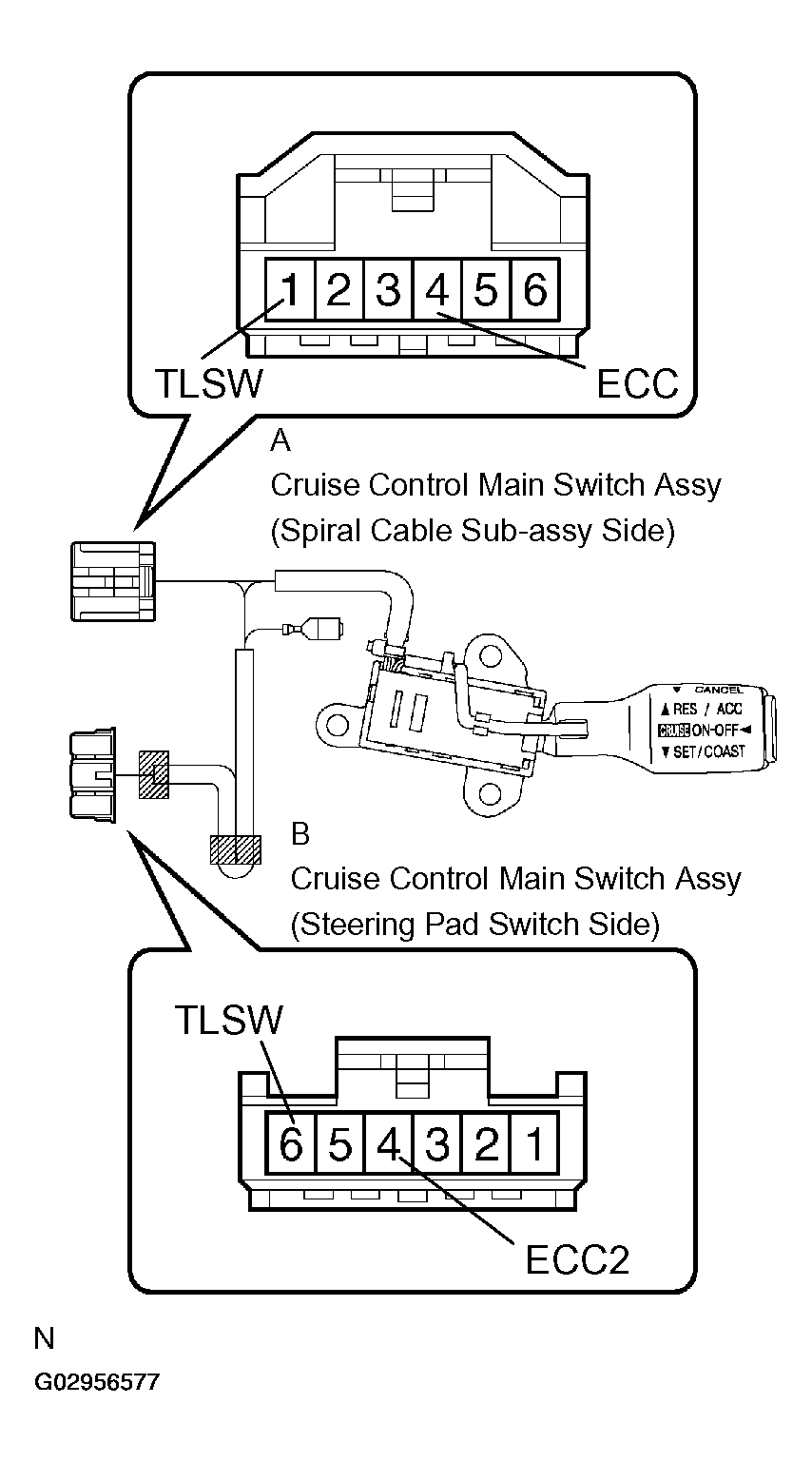

      Fig 3: Checking Cruise Control Main Switch Assy
      G02956577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE CRUISE CONTROL MAIN SWITCH ASSY (See  REPLACEMENT  )
    2. OK: Go to next step.
  5. INSPECT SPIRAL CABLE SUB-ASSY
    1. Disconnect the cable connectors.
    2. Measure the resistance of the cable.

      Standard:

      SPIRAL CABLE SUB-ASSY

      Tester Connection Specified Condition
      C10-4 (ECC) - A-4 (ECC) Below 1 ohms
      C10-1 (TLSW) - A-1 (TLSW) Below 1 ohms

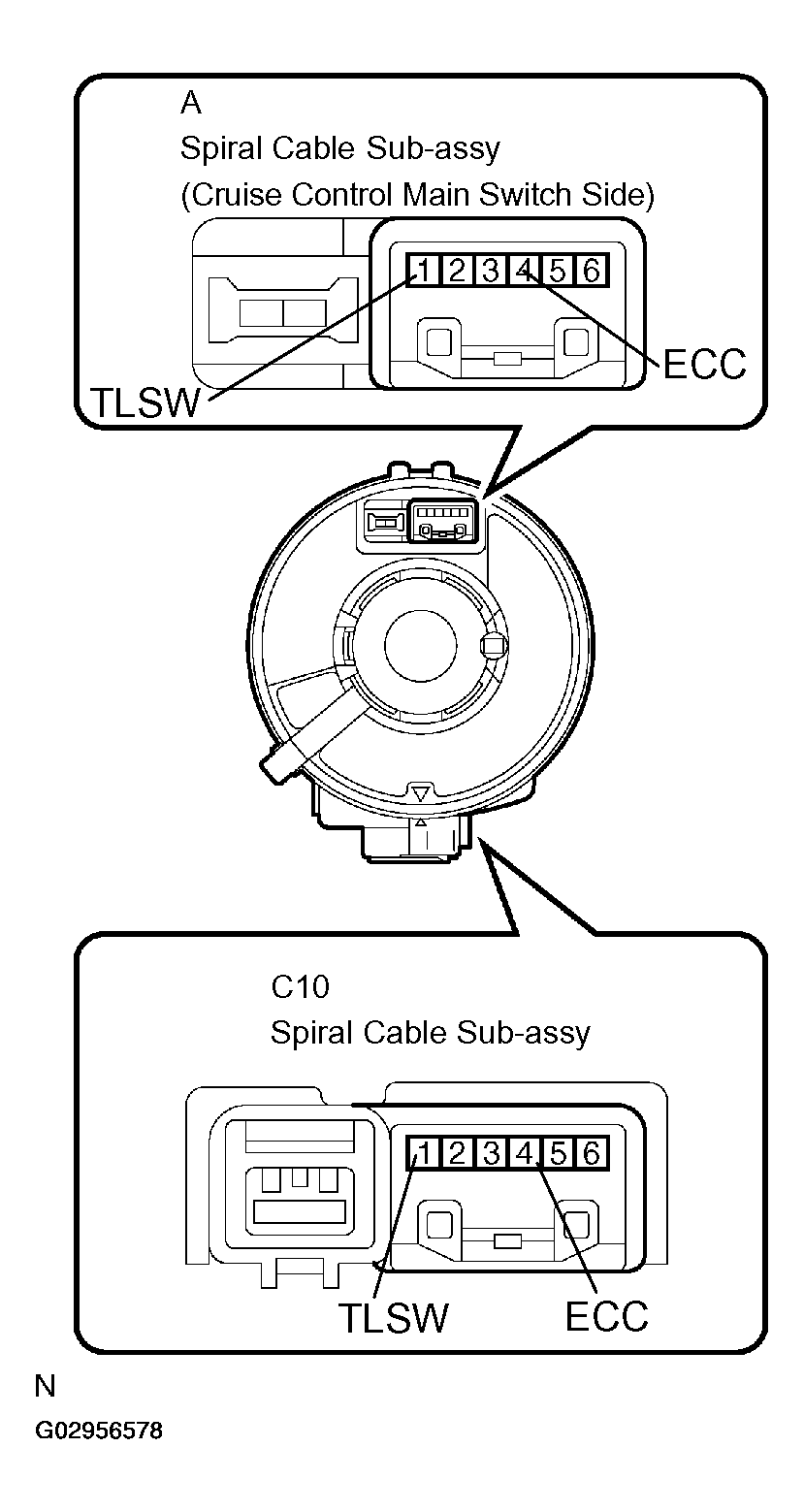

      Fig 4: Inspecting Spiral Cable Sub-Assy
      G02956578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE SPIRAL CABLE SUB-ASSY (See  OVERHAUL  )
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE   )
