Inspection Procedure

CHECK CONDITION
1. Check if the system's voice recognition ability is low with only one person's voice.
  OK: System's voice recognition ability is low with only one person's voice.
1. OK: Go to step 2
2. NG: SYSTEMS VOICE RECOGNITION LEVEL VARIES DEPENDING ON VOICE AND PRONUNCIATION. THIS IS NOT A MALFUNCTION
CHECK MAP DISC
1. Check that the map disc is not deformed or cracked.
  OK: No deformations or cracks on map disc.

  Fig 1: Identifying Deformed Or Cracked Map Disc
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE MAP DISC
2. OK: Go to next step.
CHECK MAP DISC
1. Check for dirt on the map disc surface.
  OK: No dirt is on map disc surface.

  HINT:

  If the disc is dirty, clean the disc by wiping the disc's surface radially with a soft cloth.

  NOTE: Do not use a conventional record cleaner or anti-static preservative.

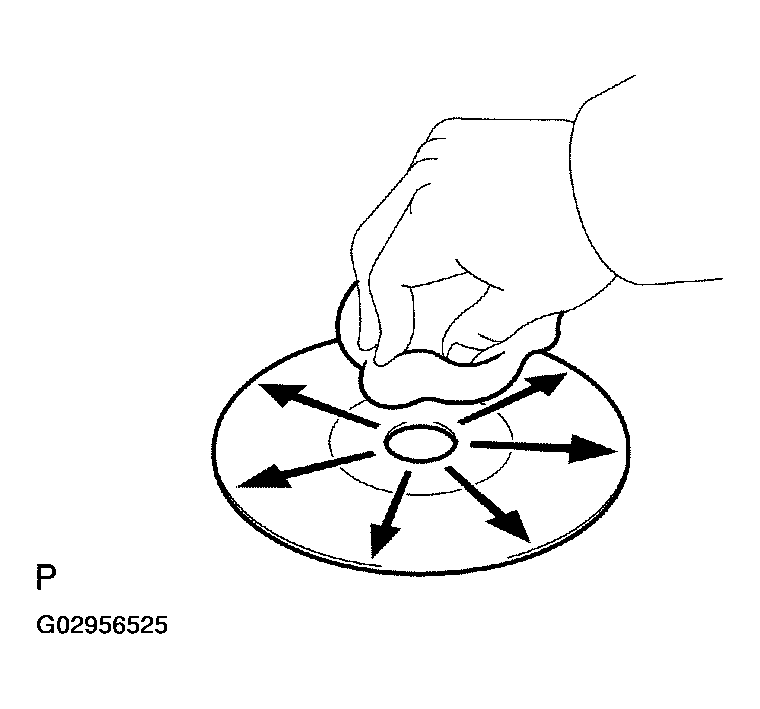

  Fig 2: Checking Map Disc Surface
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: CLEAN MAP DISC
2. OK: Go to next step.
CHECK MICROPHONE (NAVIGATION CHECK MODE)
1. Enter the NAVIGATION CHECK MODE (MICROPHONE CHECK) .
2. Follow the directions on the screen. Check that the word recognition indicator is displayed in green in each item.
  OK: All check items are recognized.

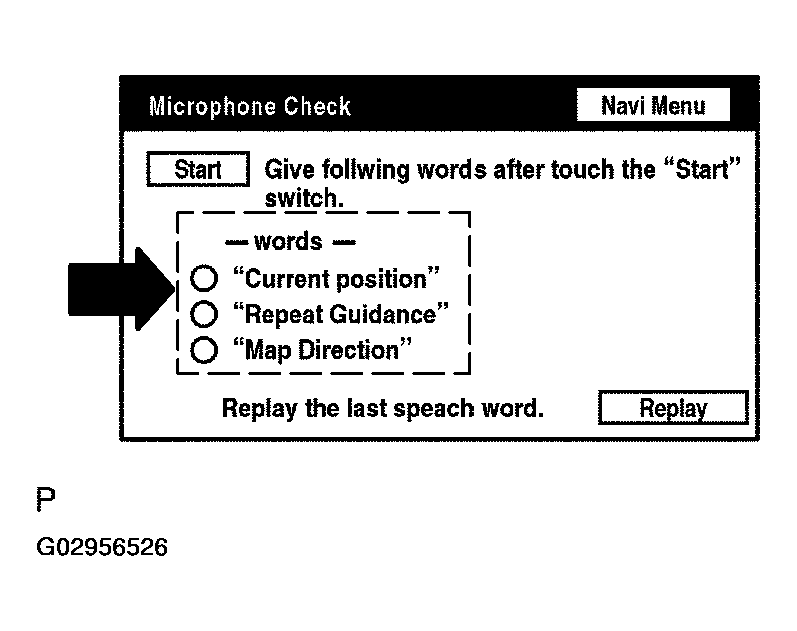

  Fig 3: Checking Microphone (Navigation Check Mode)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
2. OK: NORMAL OPERATION
