Key Reminder Warning System - Diagnostics: Inspection

INSPECT UNLOCK WARNING SWITCH ASSY

Standard:

UNLOCK WARNING SWITCH ASSY

Tester Connection	Switch Condition	Specified Condition
1 - 2	Not pushed	10 k ohms or higher
1 - 2	Pushed	Below 1 ohms

If the result is not as specified, replace unlock warning switch assy.

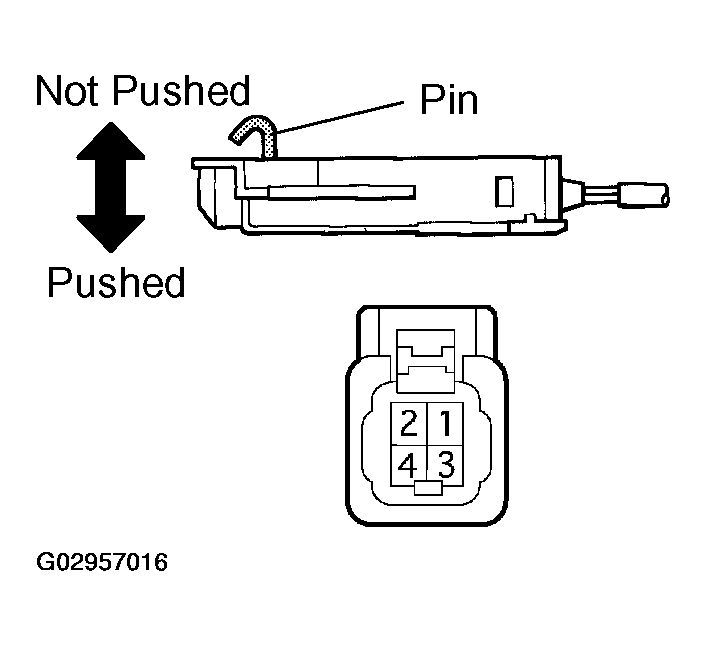

Fig 1: Inspecting Unlock Warning Switch Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE)

Standard:

FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE)

Tester Connection	Switch Condition	Specified Condition
1 - Body ground	Not pushed (ON)	Below 1 Ω
1 - Body ground	Pushed (OFF)	10 kΩ or higher

If the result is not as specified, replace front door courtesy lamp switch assy (driver side).

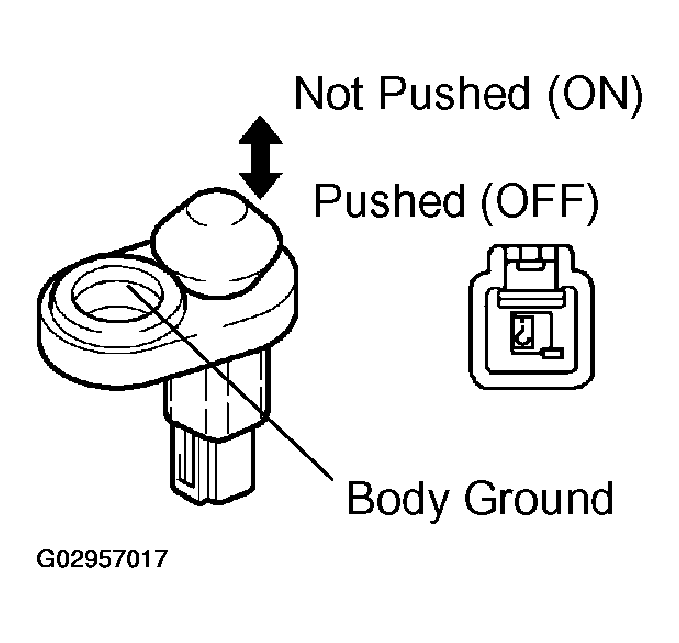

Fig 2: Inspecting Front Door Courtesy Lamp Switch Assy (Driver Side)
