Data List/Active Test

HINT:

Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST.

   Theft warning ECU assy:

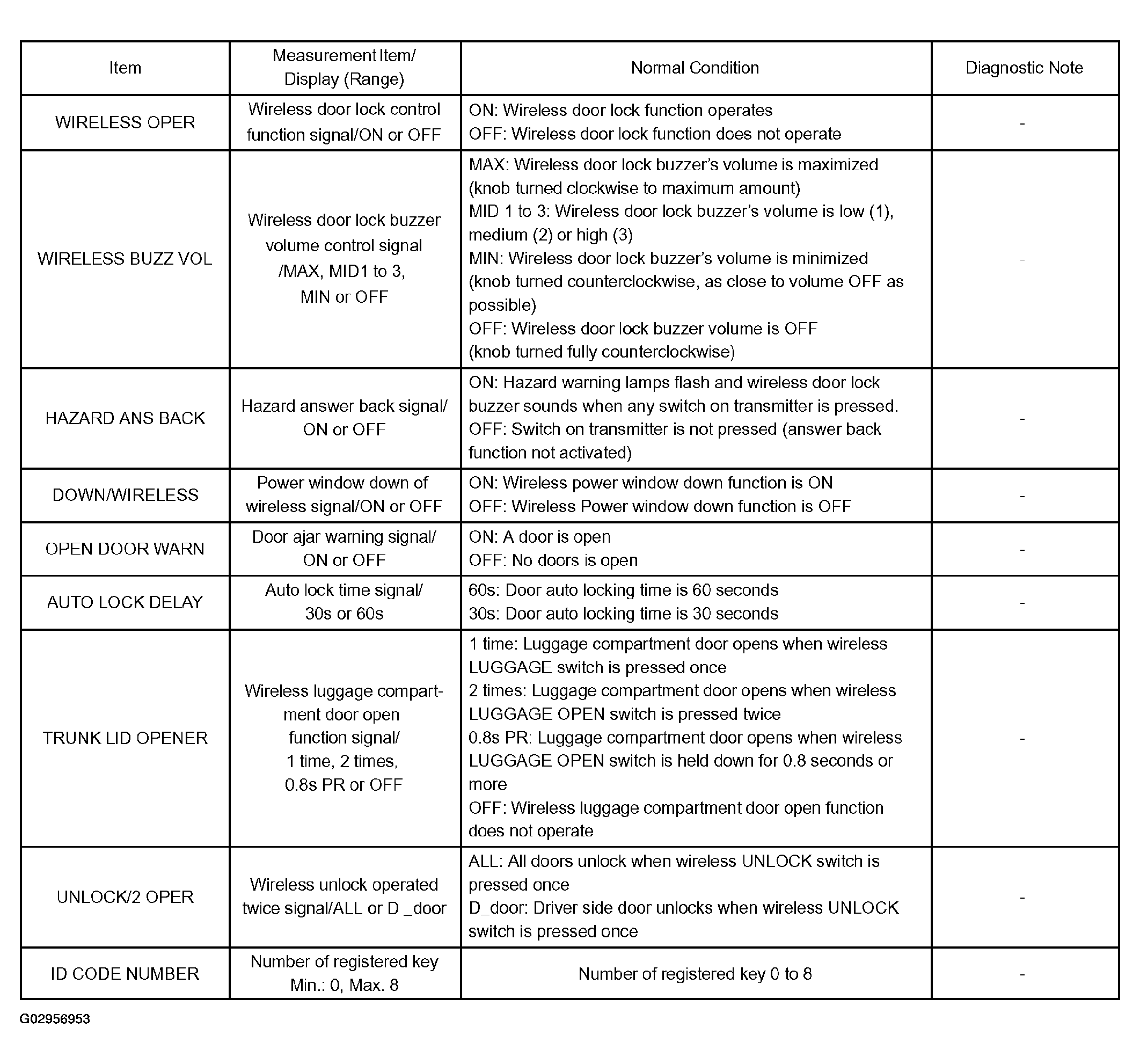

   Fig 1: Theft Warning ECU Assy - Data List Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Transponder key ECU assy:

   TRANSPONDER KEY ECU ASSY



   Item	Measurement Item/Display (Range)	Normal Condition	Diagnostic Note
   KEY UNLK WRN SW	Unlock warning switch signal/ON or OFF	ON: Key is in ignition key cylinder OFF: No key is in ignition key cylinder	-

HINT:

Performing the hand-held tester's ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed during the ACTIVE TEST.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Perform the ACTIVE TEST.

   Theft warning ECU assy:

   THEFT WARNING ECU ASSY



   Item	Test Details	Diagnostic Note
   OVERHEAD TURNER	Turn flasher relay ON/OFF	-
   BUZ RESP SOUND	Turn wireless door lock buzzer ON/OFF	-
