Diagnostic Trouble Code Table

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in Fig 1, and then proceed to the DTC No. given for that code.

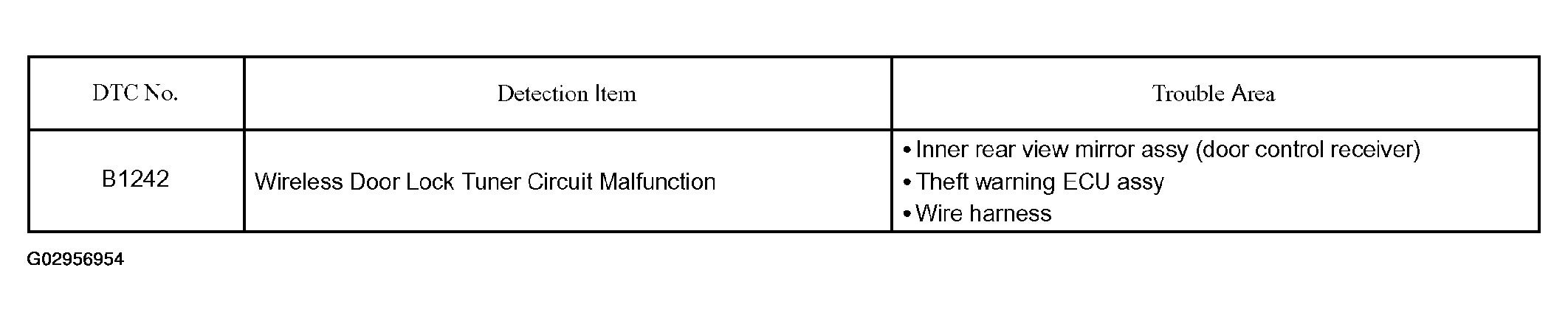

Fig 1: Diagnostic Trouble Code Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
