Driver Side Junction Block

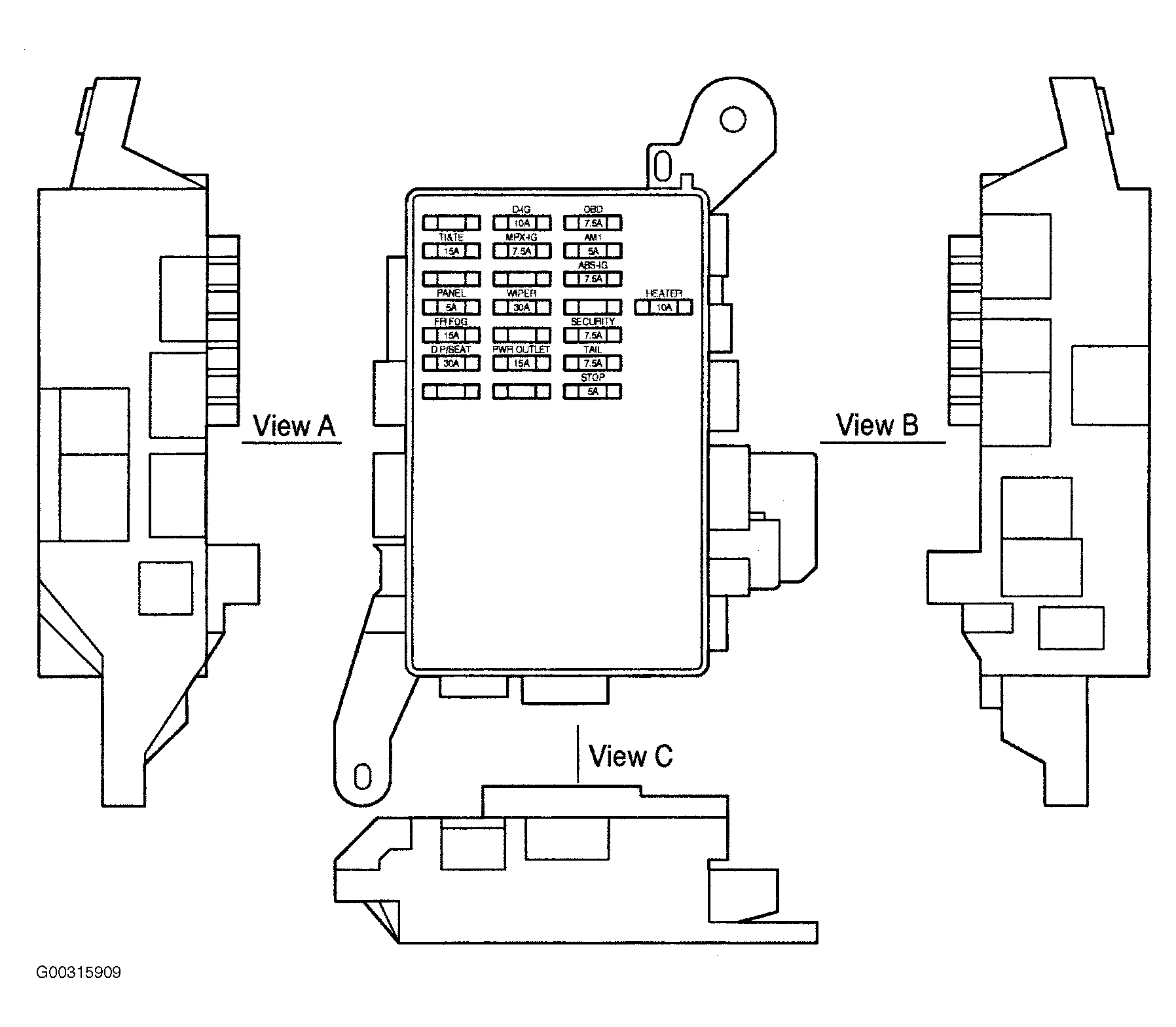

Driver's side junction block is located behind left kick panel. See Fig 1.
DRIVER SIDE JUNCTION BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 5A | AM1 | Multiplex Communication System (J/B ECU) |
| 5A | PANEL | Illumination Multiplex Communication System (J/B ECU) |
| 5A | STOP | Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control Multiplex Communication System (J/B ECU) Shift Lock Stop Light VSC and PPS |
| 7.5A | ABS-IG | VSC and PPS |
| 7.5A | MPX-IG | Automatic Air Conditioning Automatic Light Control Front Fog Light Headlight Illumination Light Auto Turn Off System Mirror Heater Multiplex Communication System (Communication Bus) Multiplex Communication System (Door ECU) Multiplex Communication System (J/B ECU) Power Seat Power Tilt and Power Telescopic Power Window Remote Control Mirror Retractable Hardtop SRS Taillight Theft Deterrent and Door Lock Control Turn Signal and Hazard Waring Light Wiper and Washer Wireless Door Lock Control |
| 7.5A | OBD | Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control SRS VSC and PPS |
| 7.5A | SECURITY | Audio System Horn Multiplex Communication System (Door ECU) Multiplex Communication System (J/B ECU) Power Window Theft Deterrent and Door Lock Control Wireless Door Lock Control |
| 7.5A | TAIL | Automatic Light Control Light Auto Turn Off System Multiplex Communication System (J/B ECU) Taillight Theft Deterrent and Door Lock Control |
| 10A | D-IG | Audio System Automatic Air Conditioning Back-Up Light Charging Combination Meter Cruise Control Electric Tension Reducer Electronically Controlled Transmission and A/T Indicator Engine Control Front Fog Light Headlight Headlight Beam Level Control Headlight Cleaner Illumination Interior Light Key Reminder and Seat Belt Warning LEXUS Navigation System Luggage Compartment Door Opener Multiplex Communication System (J/B ECU) Power Tilt and Power Telescopic Remote Control Mirror Retractable Hardtop SRS Stop Light Taillight Tire Pressure Warning System VSC and PPS Wiper and Washer |
| 10A | HEATER | Automatic Air Conditioning Multiplex Communication System (J/B ECU) Radiator Fan |
| 15A | FR FOG | Front Fog Light Multiplex Communication System (J/B ECU) |
| 15A | PWR OUTLET | Cigarette Lighter and Power Outlet |
| 15A | TI & TE | Power Tilt and Power Telescopic |
| 30A | D P/SEAT | Power Seat |
| 30A | WIPER | Multiplex Communication System (J/B ECU) Wiper and Washer |

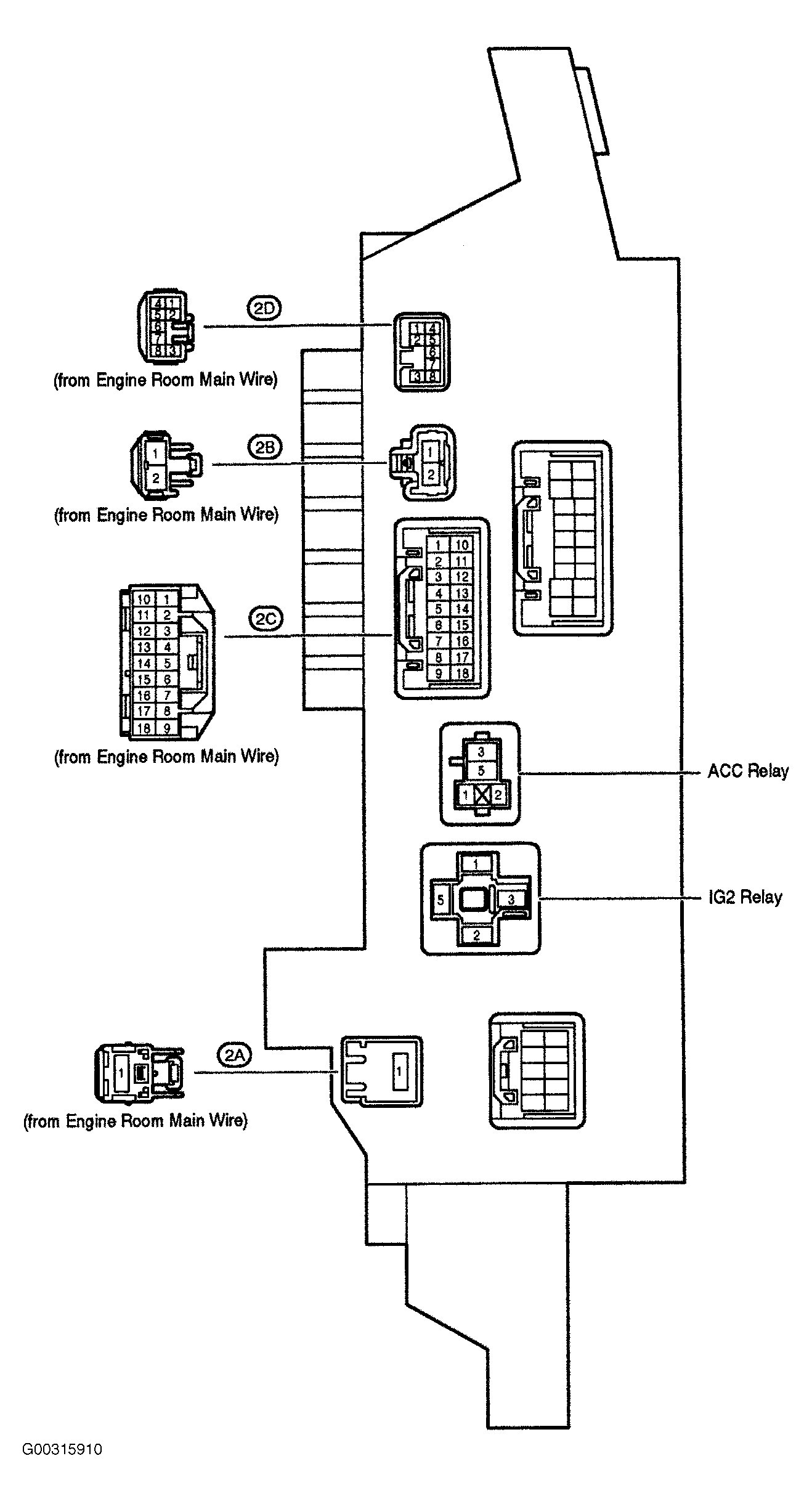

DRIVER SIDE JUNCTION BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ACC Relay |
| IG2 Relay |
