Diagnostic Trouble Code Table
If a DTC is displayed during the DTC check, check the circuit listed in DIAGNOSTIC TROUBLE CODE TABLE .

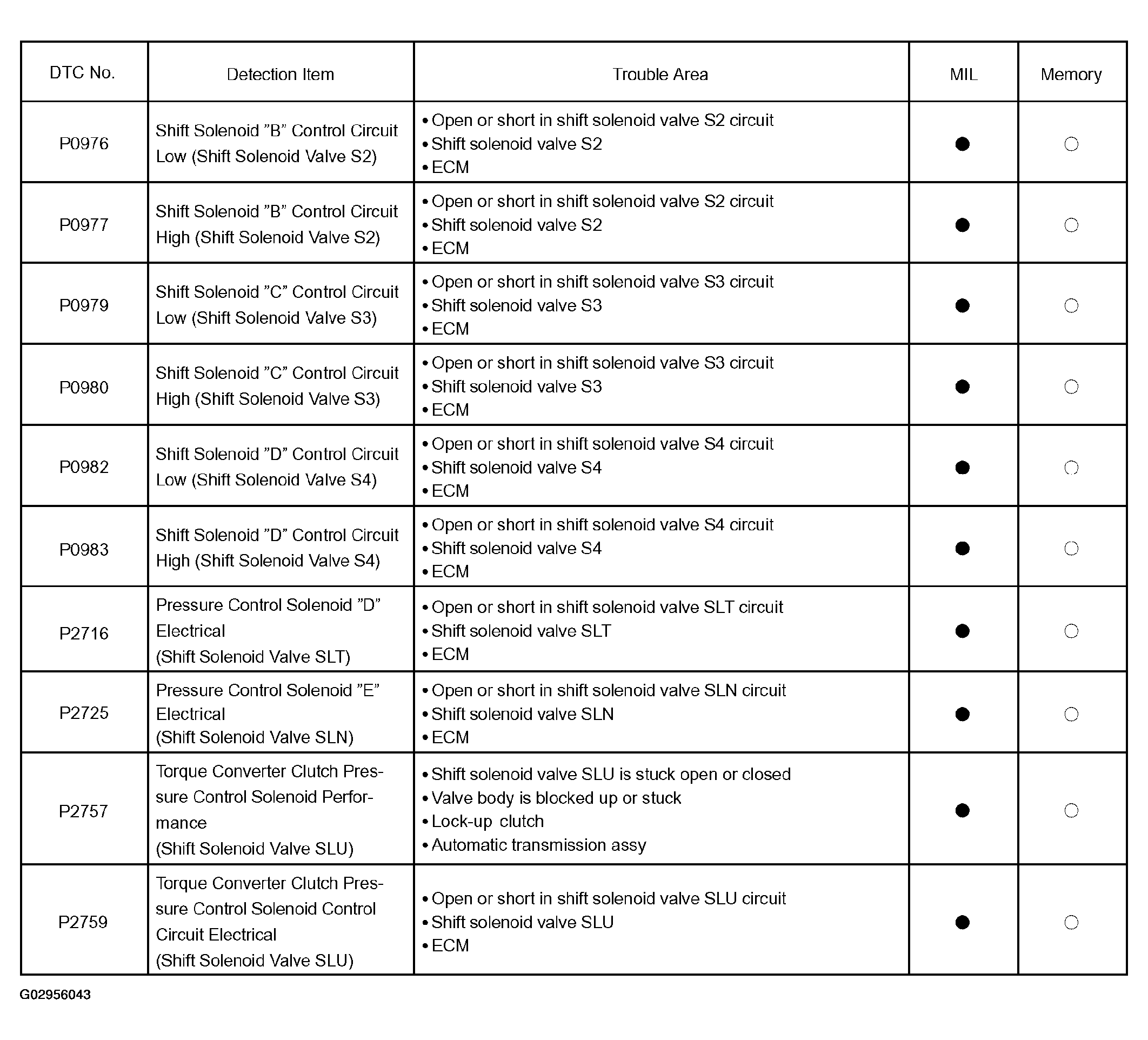

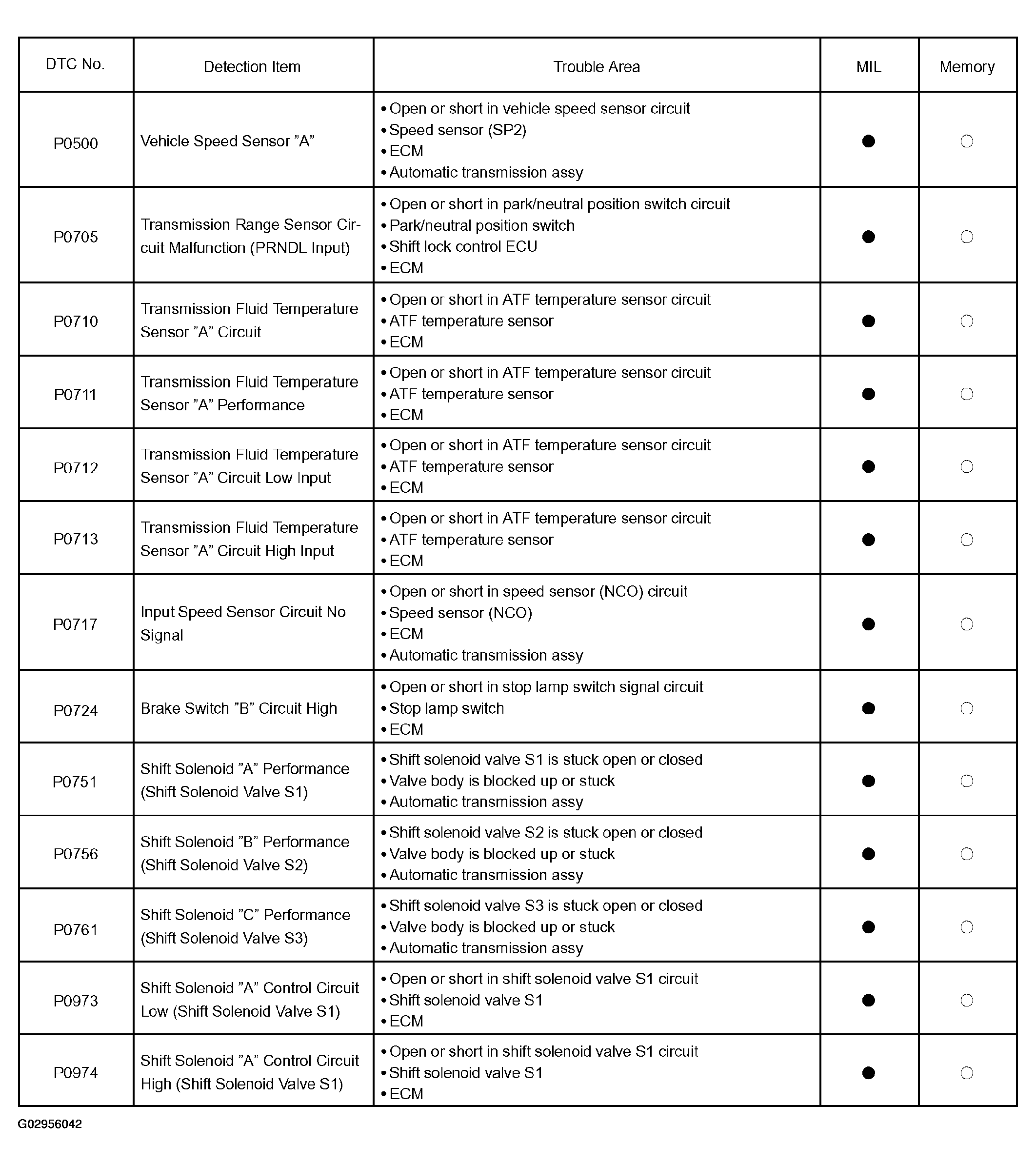

DIAGNOSTIC TROUBLE CODE TABLE
| DTC | Description |
|---|---|
| DTC P0705 | TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION (PRNDL INPUT) |
| DTC P0710, P0712, P0713 | TRANSMISSION FLUID TEMPERATURE SENSOR "A" CIRCUIT, DTC TRANSMISSION FLUID TEMPERATURE SENSOR "A" CIRCUIT LOW/HIGH INPUT |
| DTC P0711 | TRANSMISSION FLUID TEMPERATURE SENSOR "A" PERFORMANCE |
| DTC P0717 | INPUT SPEED SENSOR CIRCUIT NO SIGNAL |
| DTC P0724 | BRAKE SWITCH "B" CIRCUIT HIGH |
| DTC P0751, P0756, P0761 | SHIFT SOLENOID "A" PERFORMANCE (SHIFT SOLENOID VALVE S1)/(SHIFT SOLENOID VALVE S2)/(SHIFT SOLENOID VALVE S3) |
| DTC P0973, P0974, P0976, P0977, P0979, P0980 | SHIFT SOLENOID "A" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE S1), SHIFT SOLENOID "B" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE S2) SHIFT SOLENOID "C" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE S3) |
| DTC P0982, P0983 | SHIFT SOLENOID "D" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE S4) |
| DTC P2716 | PRESSURE CONTROL SOLENOID "D" ELECTRICAL (SHIFT SOLENOID SLT) |
| DTC P2725 | PRESSURE CONTROL SOLENOID "E" ELECTRICAL (SHIFT SOLENOID VALVE SLN) |
| DTC P2757 | TORQUE CONVERTER CLUTCH PRESSURE CONTROL SOLENOID PERFORMANCE (SHIFT SOLENOID VALVE SLU) |
| DTC P2759 | TORQUE CONVERTER CLUTCH PRESSURE CONTROL SOLENOID CONTROL CIRCUIT ELECTRICAL (SHIFT SOLENOID VALVE SLU) |
HINT:
- The "•" mark means that the Malfunction Indicator Lamp (MIL) will illuminate.
- The "O" mark means that the ECM memorizes the malfunction code if the DTC detection conditions are met.
- The DTCs may be output when the clutch, brake, gear components inside the automatic transmission are damaged.
