Ignition Switch: Service and Repair

REPLACEMENT

1. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY LOWER




2. REMOVE IGNITION OR STARTER SWITCH ASSEMBLY

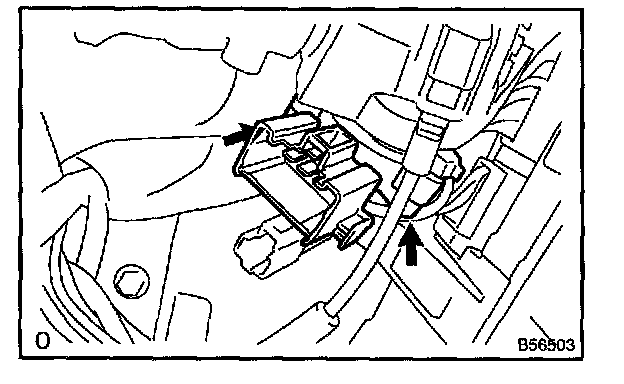

a. Disconnect the ignition switch connector and unlock warning switch connector.
b. Remove the clamp.
c. Remove the 2 screws and ignition switch.
