Inspection Procedure

1. CHECK MAP DISC
   1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks appear on the map disc.

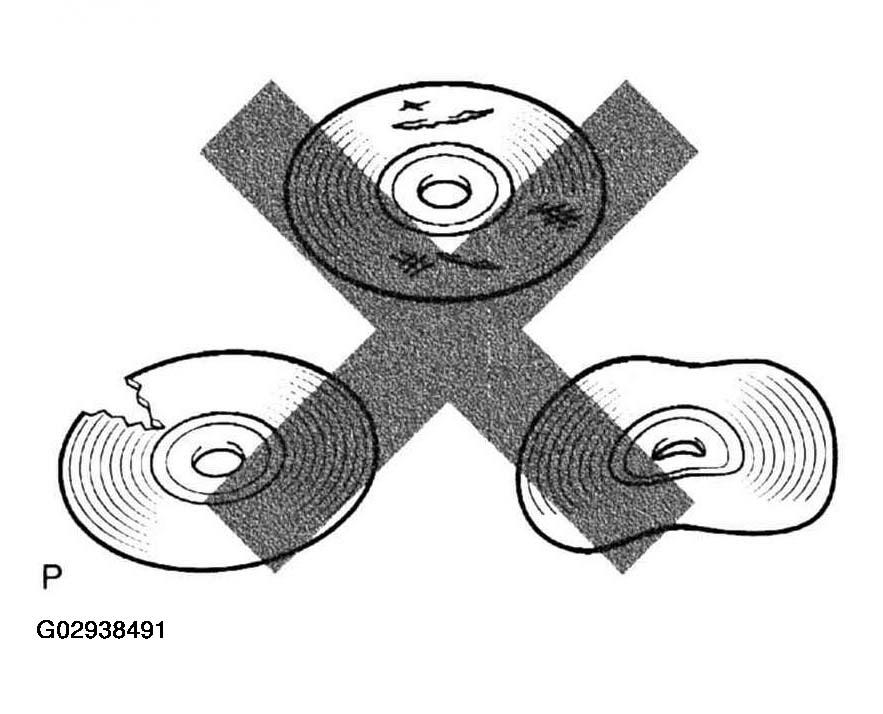

   Fig 1: Identifying Damage Disc

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE MAP DISC

   OK: Go To Next Step.

2. CHECK RADIO AND NAVIGATION ASSY

1. Check if the "MAP" indicator near the disc slot is on.

OK: It is not on.

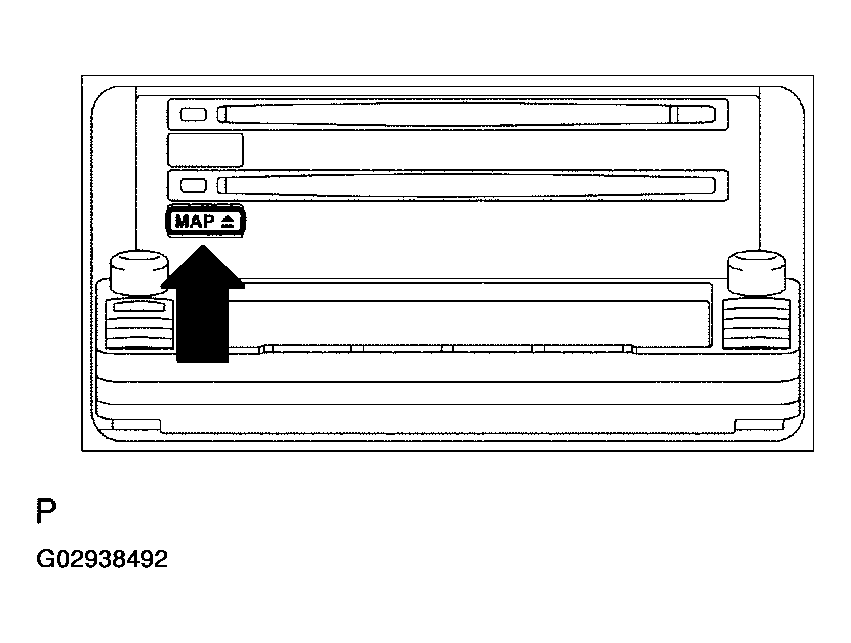

Fig 2: Locating "MAP" Indicator Near Disc Slot On

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: PRESS EJECT SWITCH TO EJECT DISC

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
