Inspection Procedure

1. CHECK MAP DISC
   1. Check for dirt on the map disc surface.

   OK: No dirt is on the map disc surface.

   HINT:

   If dirt is on the map disc surface, wipe it with a soft cloth from inside to outside in a radial direction.

   NOTE: Do not use conventional record cleaner or anti-static preservative.

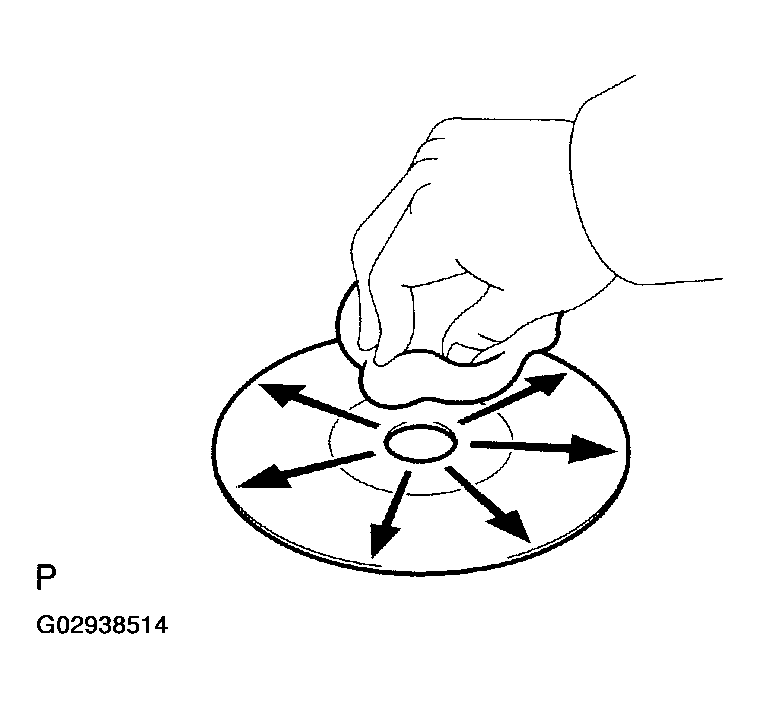

   Fig 1: Wiping Disc

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: CLEAN MAP DISC

   OK: Go To Next Step.

2. CHECK MAP DISC

1. Check that the map disc is not deformed or cracked.

OK: No deformations or cracks appear on the map disc.

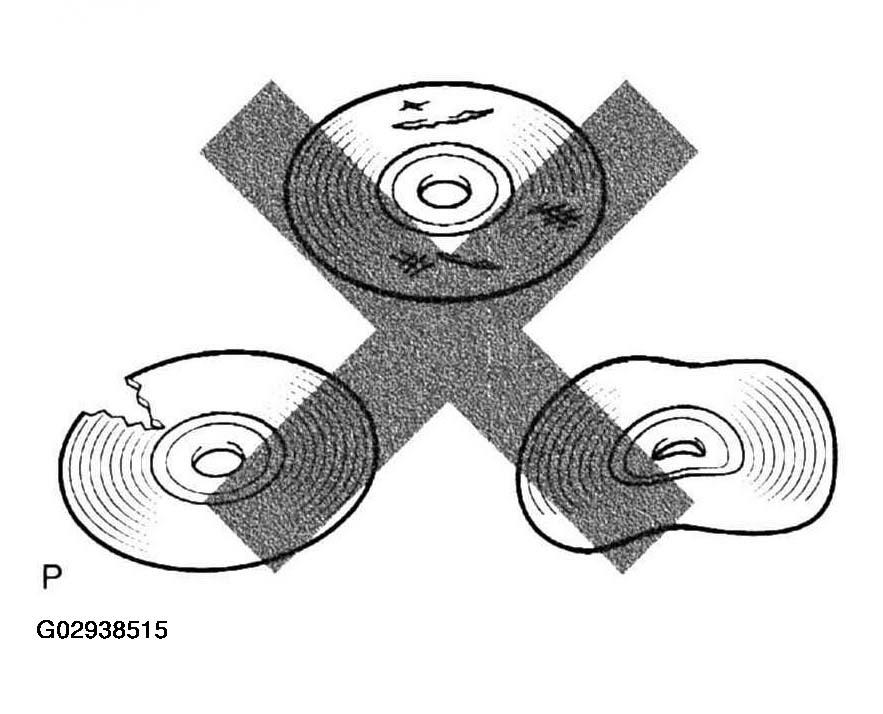

Fig 2: Identifying Damage Disc

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MAP DISC

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  DIAGNOSTIC TROUBLE CODE CHART
