Inspection Procedure

1. CHECK MAP DISC
   1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks appear on the map disc.

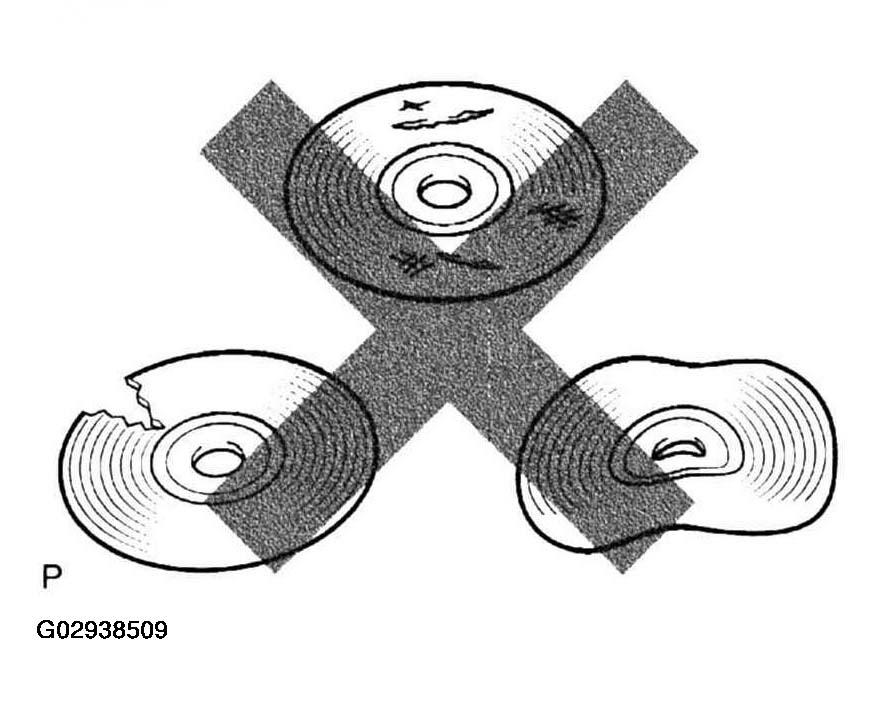

   Fig 1: Identifying Damage Disc

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE MAP DISC

   OK: Go To Next Step.

2. CHECK DISPLAY

1. Check that displays other than the navigation display are complete.

OK: No other incomplete displays are found.

NG: REPLACE RADIO AND NAVIGATION ASSY (SEE  RADIO RECEIVER ASSY  )

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
