Navigation Check Mode (Microphone Check)

HINT:

• The microphone is checked in the "Navigation Check (Microphone Check)" mode.
• Illustrations may differ from the actual vehicle depending on vehicle specifications.

1. Enter diagnostic mode (see  DIAGNOSTIC START-UP/FINISH   )

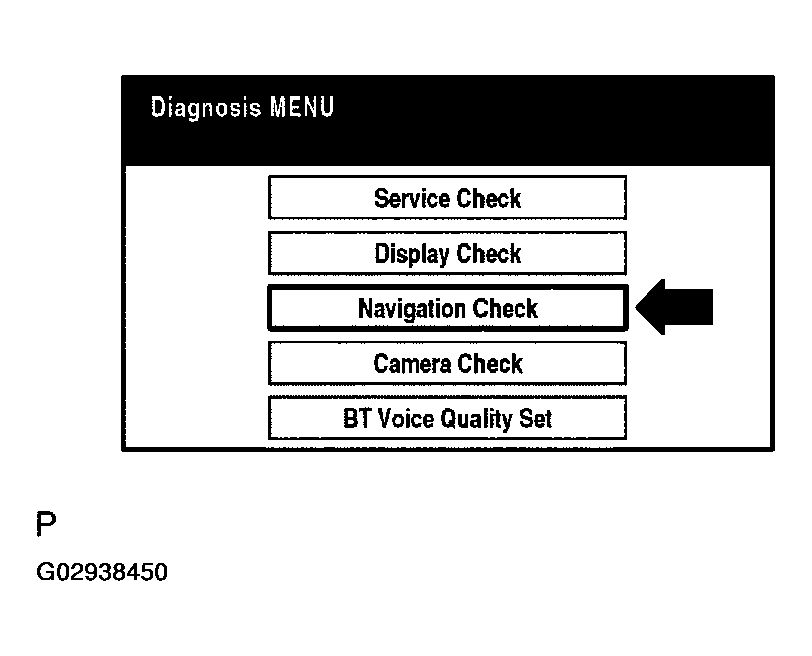

2. Select "Navigation Check" from the "Diagnosis MENU" screen.
   Fig 1: Service Check Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

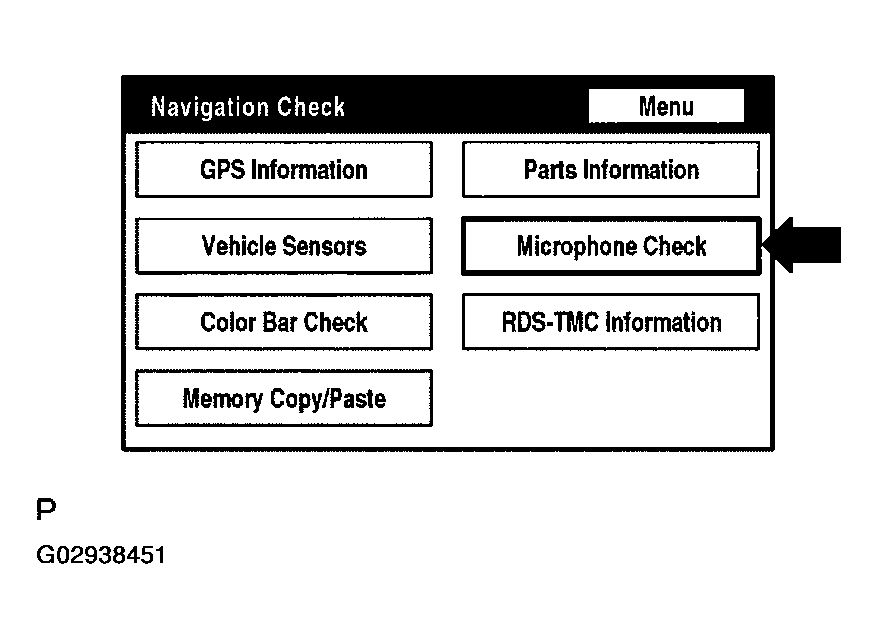

3. Select "Microphone Check" from the "Navigation Check" screen.
   Fig 2: Service Check Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

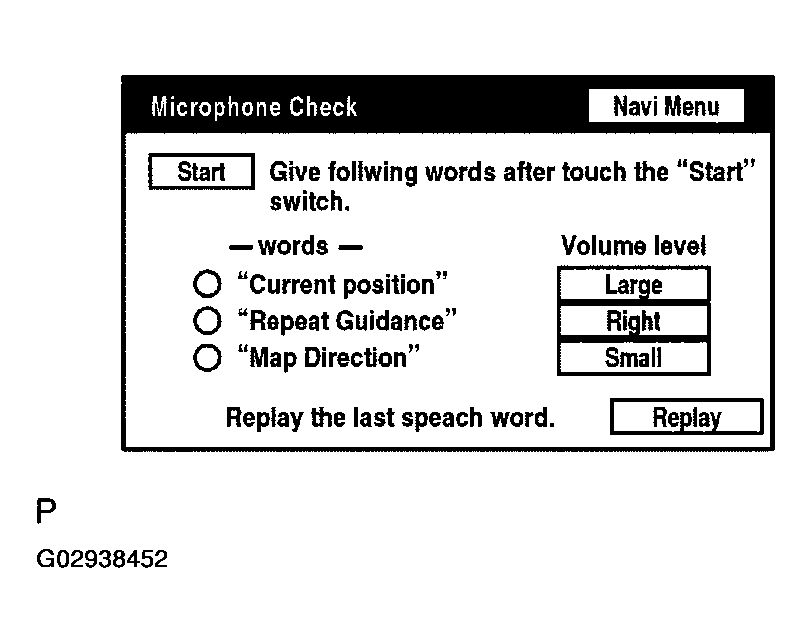

4. Perform the microphone check by following the directions on the "Microphone Check" screen.
   Fig 3: Service Check Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
