Inspection Procedure
- CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH - EACH OF ECU)

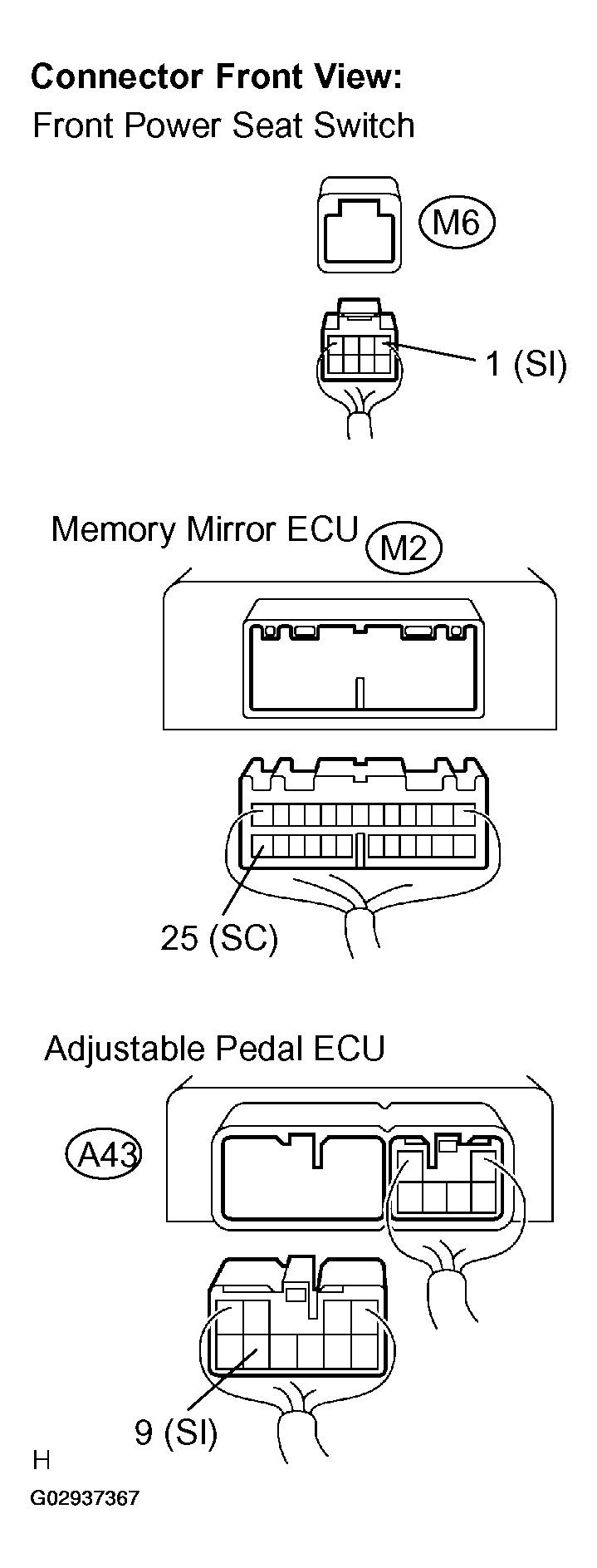

- Disconnect the front power seat switch connector, memory mirror ECU connector and adjustable pedal ECU connector.
- Measure the resistance according to the value (s) in the table below.
Standard:
CHECKING RESISTANCETester Connection Condition Specified Condition M6-1 (SI) - M2-25 (SC) Always Below 1 Ω M6-1 (SI) - A43-9 (SI) Always Below 1 Ω M6-1 (SI) - Body ground Always 10 kΩ or higher NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
