Inspection Procedure

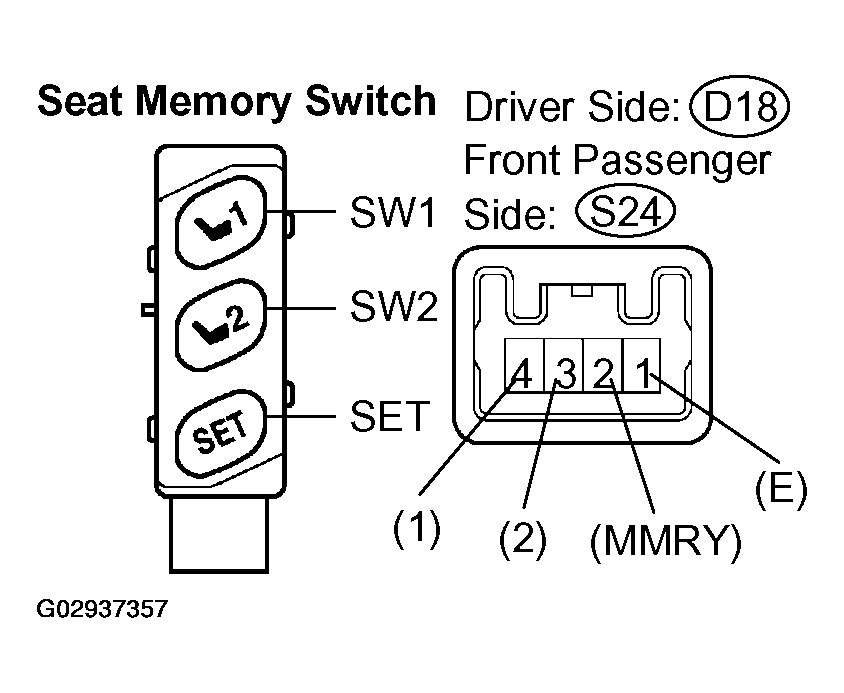

- INSPECT SEAT MEMORY SWITCH
- Disconnect the seat memory switch connector.
- Measure the resistance according to the value (s) in the table below.
Standard:
CHECKING RESISTANCETester Connection Condition Specified Condition 1 (E) -4 (1) SW1 switch pushed Below 1 Ω 1 (E) -3 (2) SW2 switch pushed Below 1 Ω 1 (E) -2 (MMRY) SET switch pushed Below 1 Ω NG: REPLACE SEAT MEMORY SWITCH

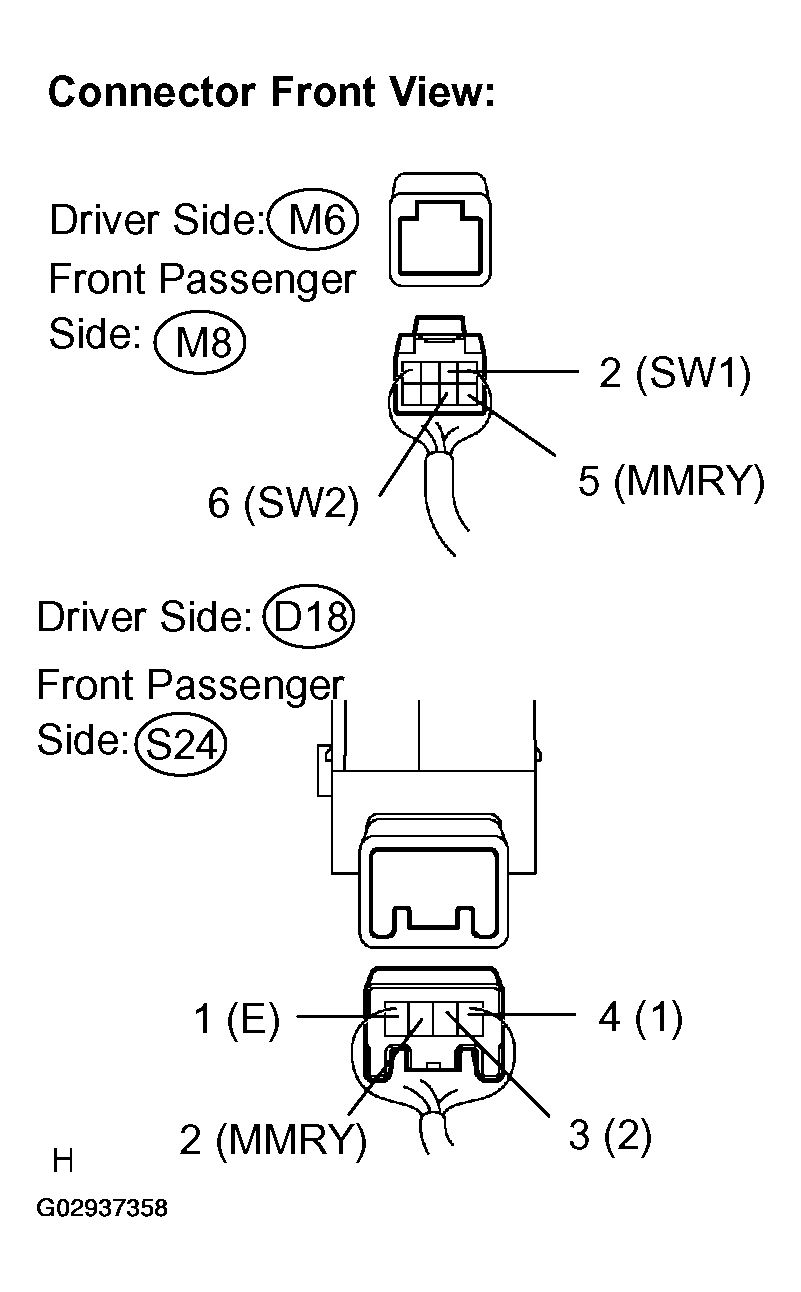

- CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH - SEAT MEMORY SWITCH)
- Disconnect the front power seat switch connector.
- Measure the resistance according to the value (s) in the table below.
Standard:
Driver Side:
CHECKING RESISTANCETester Connection Condition Specified Condition D18-1 (E) - Body ground Always Below 1 Ω D18-2 (MMRY) - M6-5 (MMRY) Always Below 1 Ω D18-3 (2) - M6-6 (SW2) Always Below 1 Ω D18-4 (1) - M6-2 (SW1) Always Below 1 Ω Front Passenger Side:
CHECKING RESISTANCETester Connection Condition Specified Condition S24-1 (E) - Body ground Always Below 1 Ω S24-2 (MMRY) - M8-5 (MMRY) Always Below 1 Ω S24-3 (2) - M8-6 (SW2) Always Below 1 Ω S24-4 (1) - M8-2 (SW1) Always Below 1 Ω NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
