Headlight without Daytime Running Light: Notes

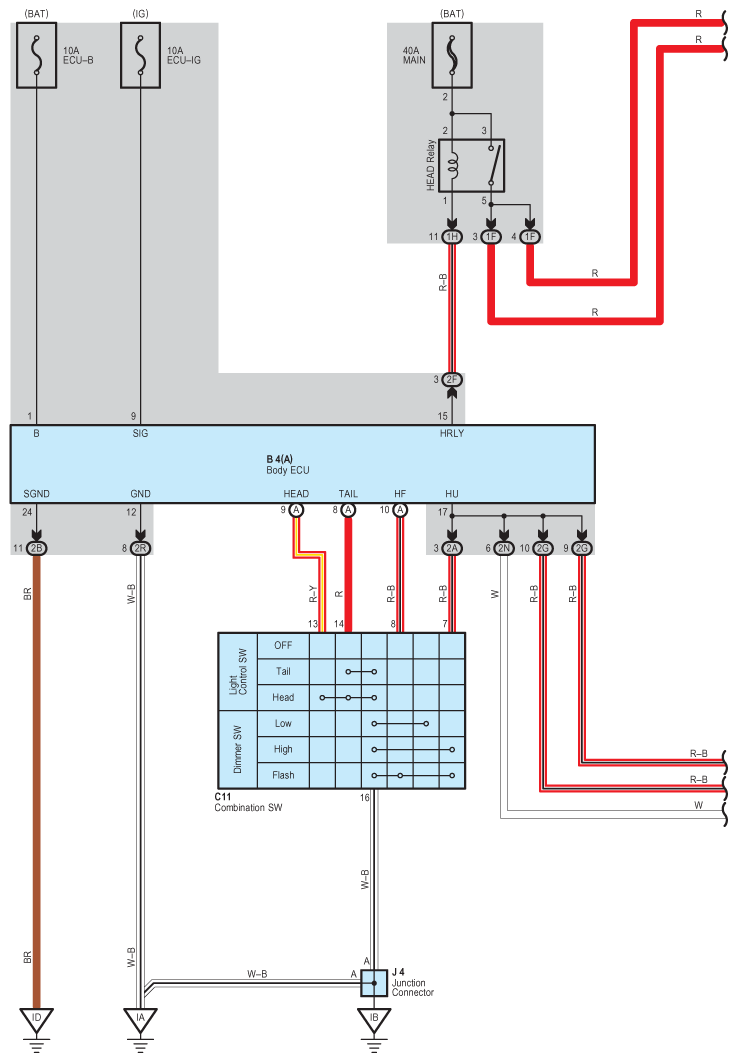

Fig 1: Headlight Without Daytime Running Light - Wiring Diagram (1 Of 2)
G08930022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

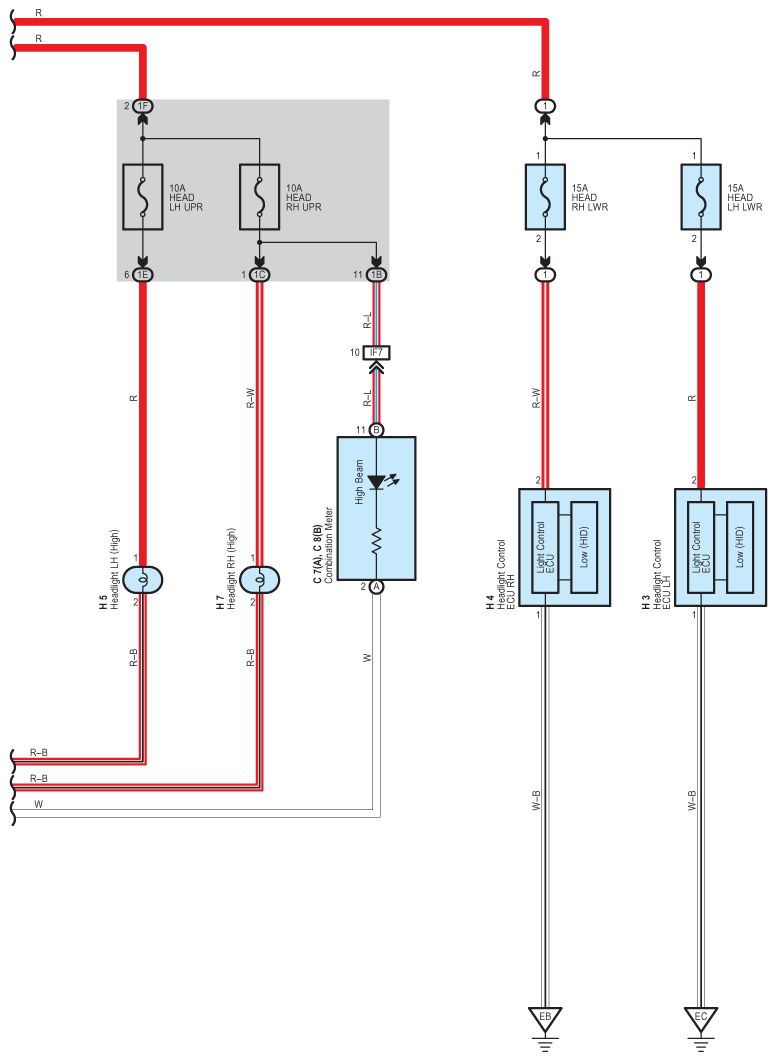

Fig 2: Headlight Without Daytime Running Light - Wiring Diagram (2 Of 2)
G08930023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
