Wiper and Washer without Auto Wiper System: Notes

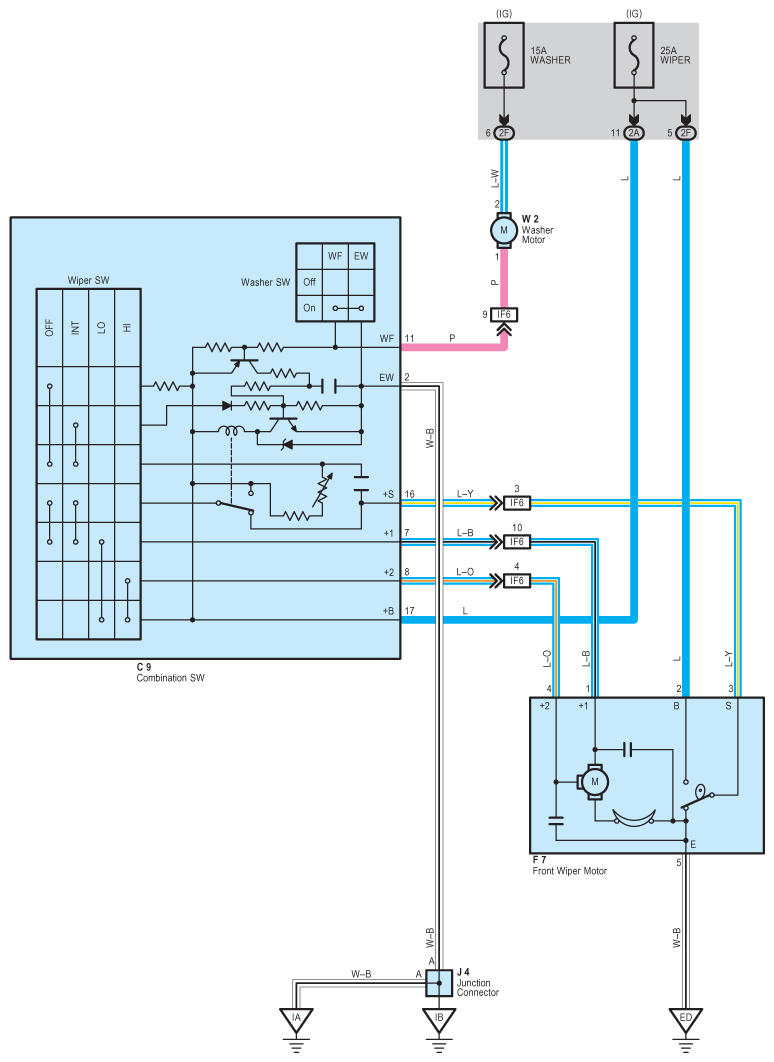

Fig 1: Wiper And Washer Without Auto Wiper System - Wiring Diagram
G08930083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
