Power Source: Location

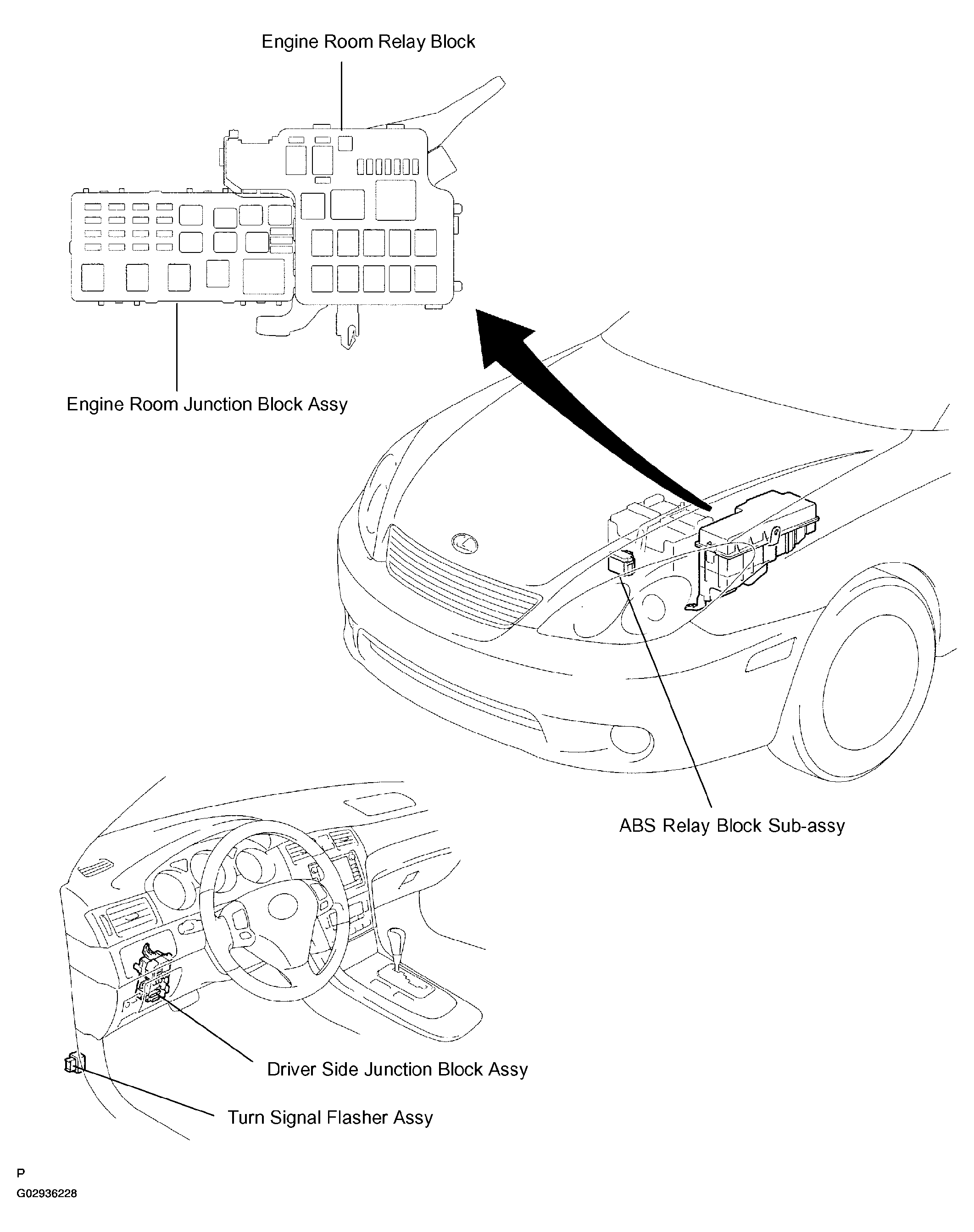

Fig 1: Locating Relay Blocks
G02936228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

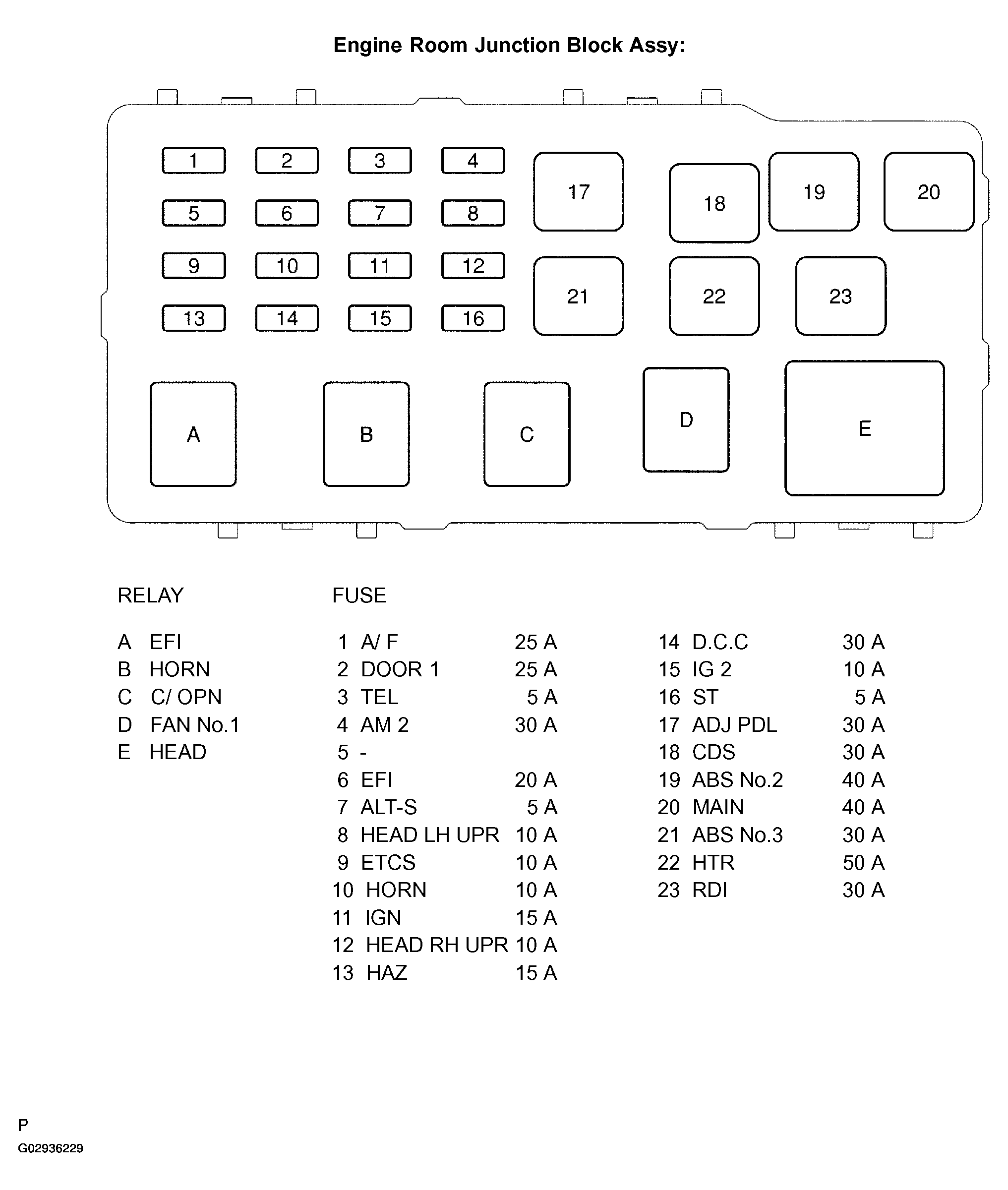

Fig 2: Locating Engine Room Junction Block Assy Components
G02936229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

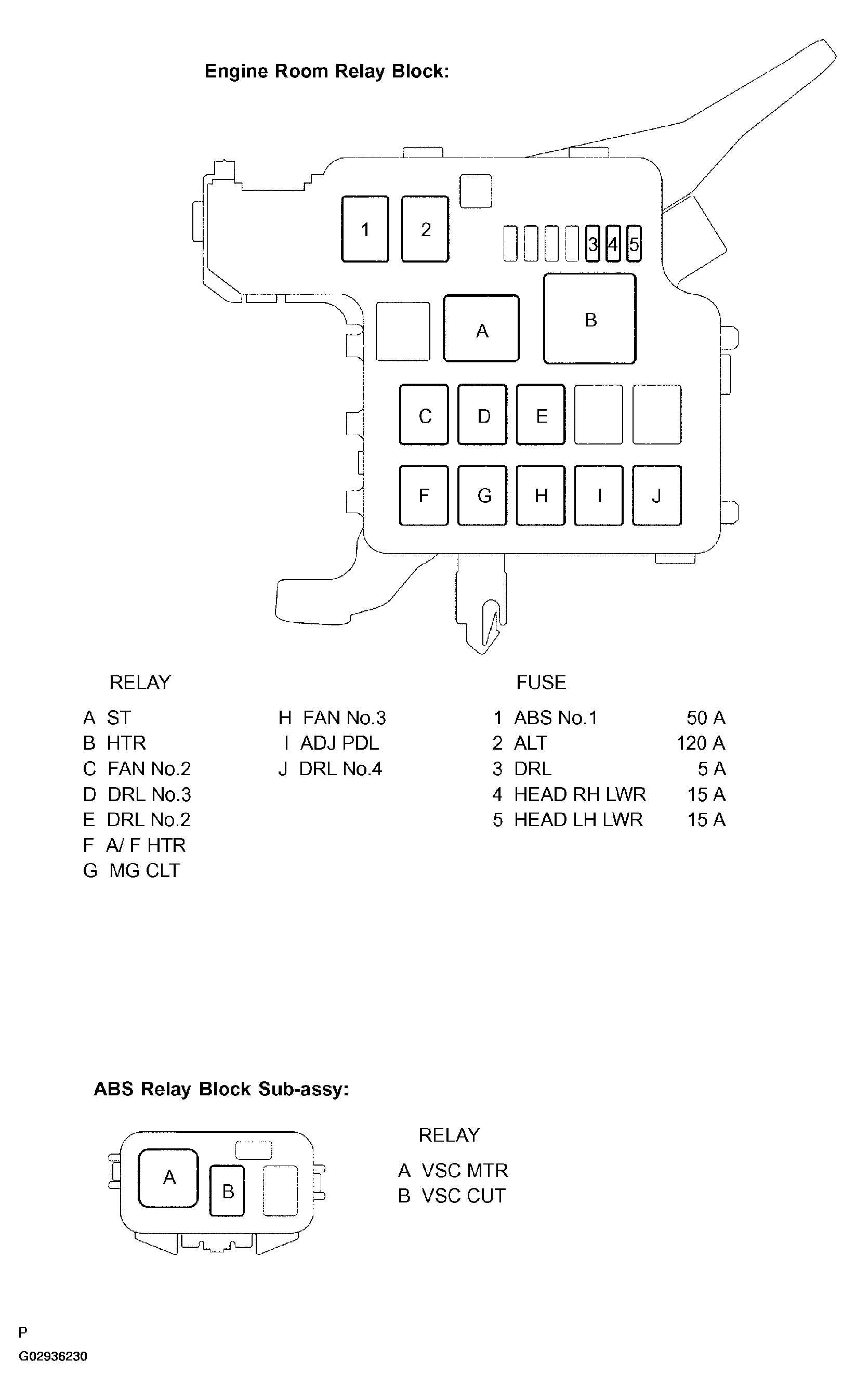

Fig 3: Locating Engine Room Relay Block Components
G02936230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

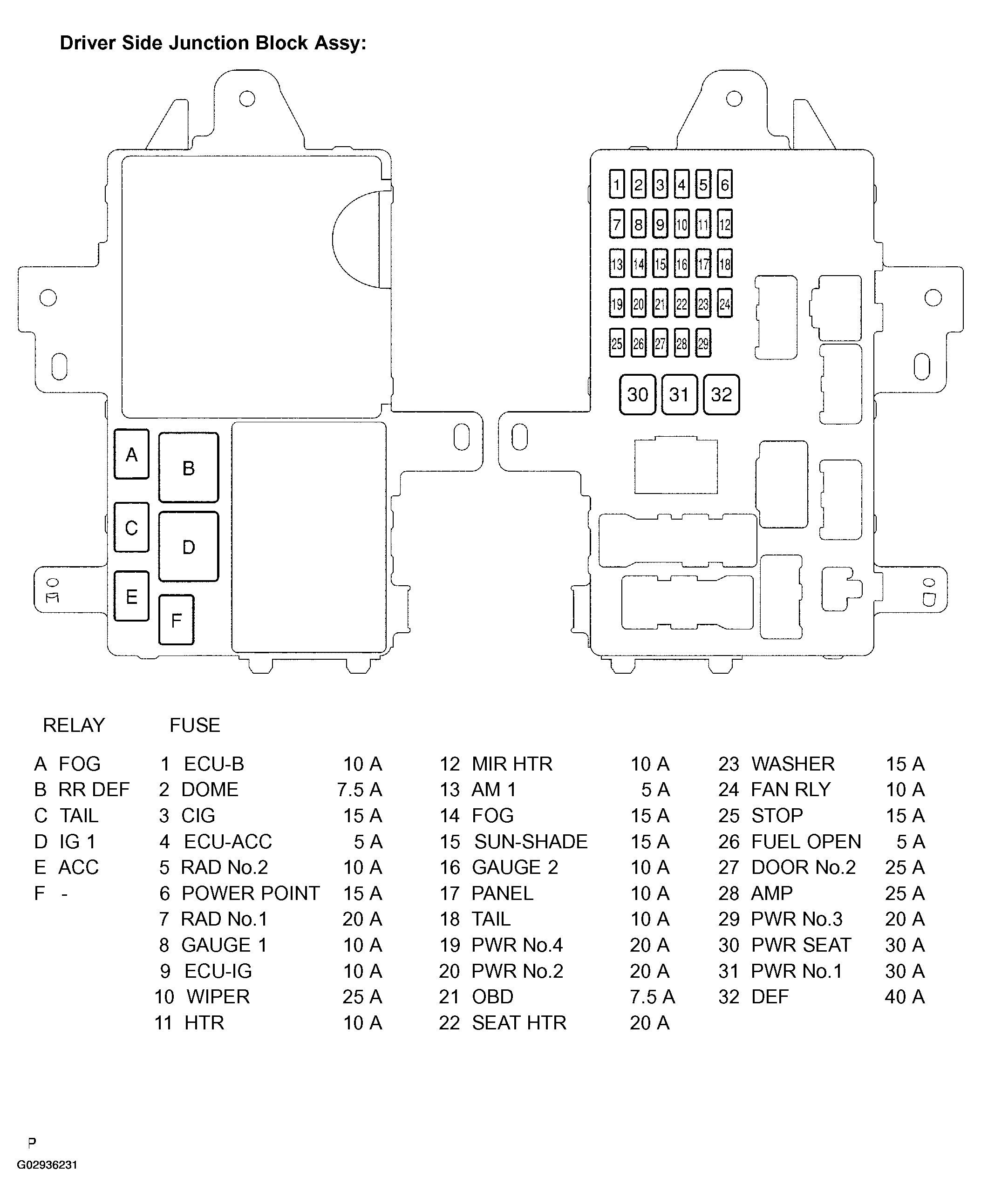

Fig 4: Locating Driver Side Junction Block Assy Components
G02936231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
