Torque Specifications

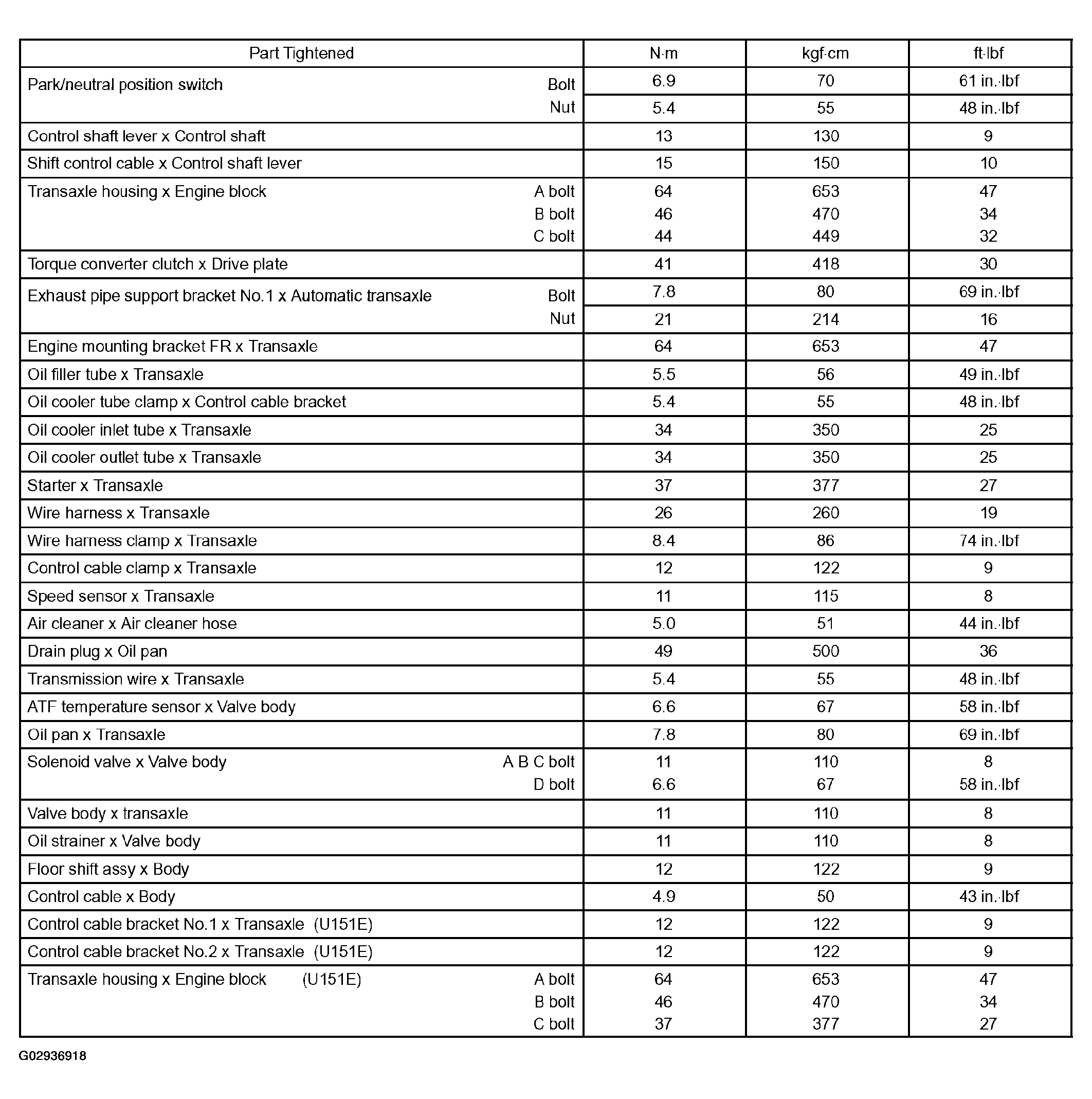

Fig 1: Automatic Transmission/Transaxle Torque Specifications Table
G02936918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
