Engine Switch: Components

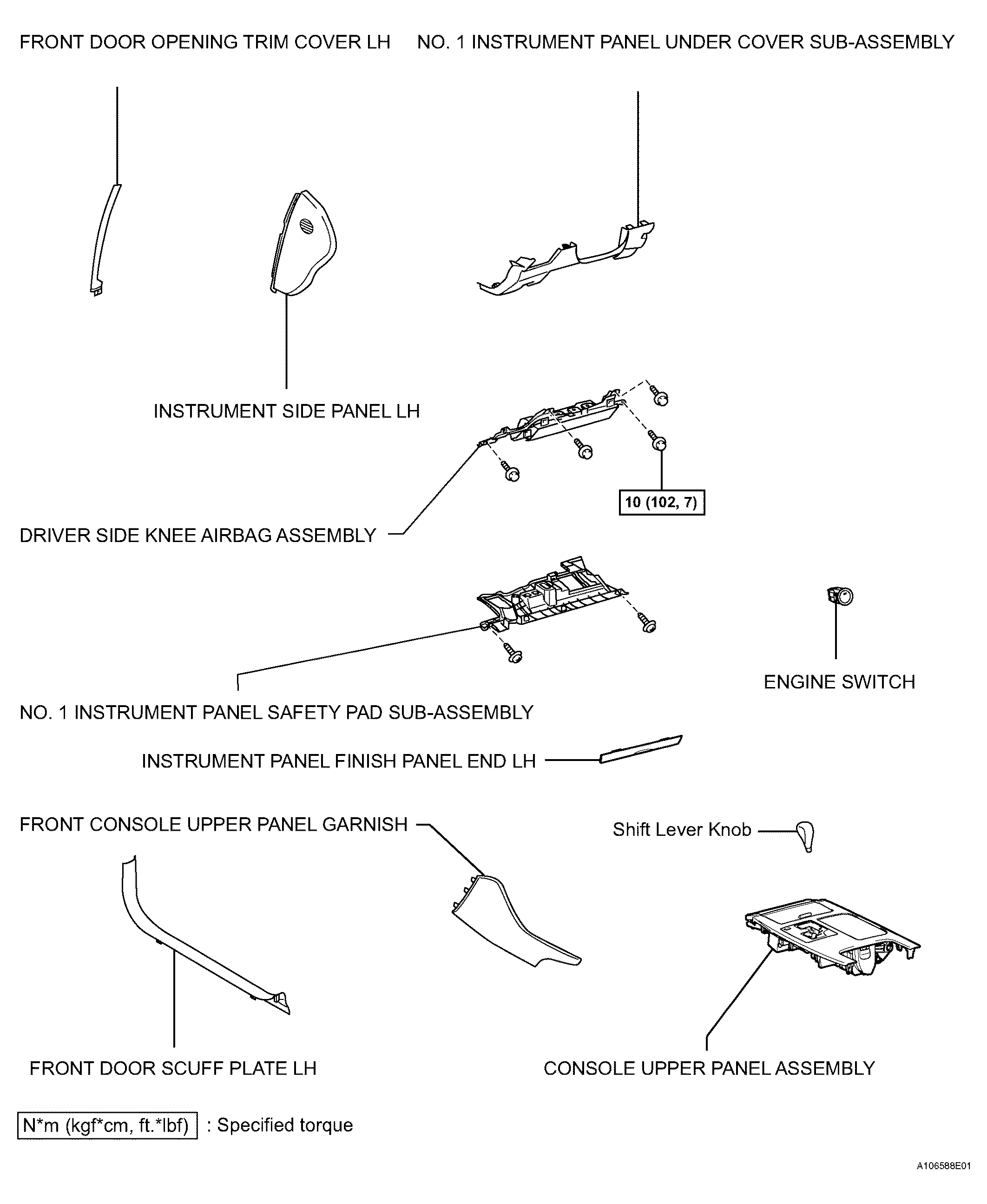

Fig 1: Engine Switch Replacement Components With Torque Specifications
G04019044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
