Parts Location

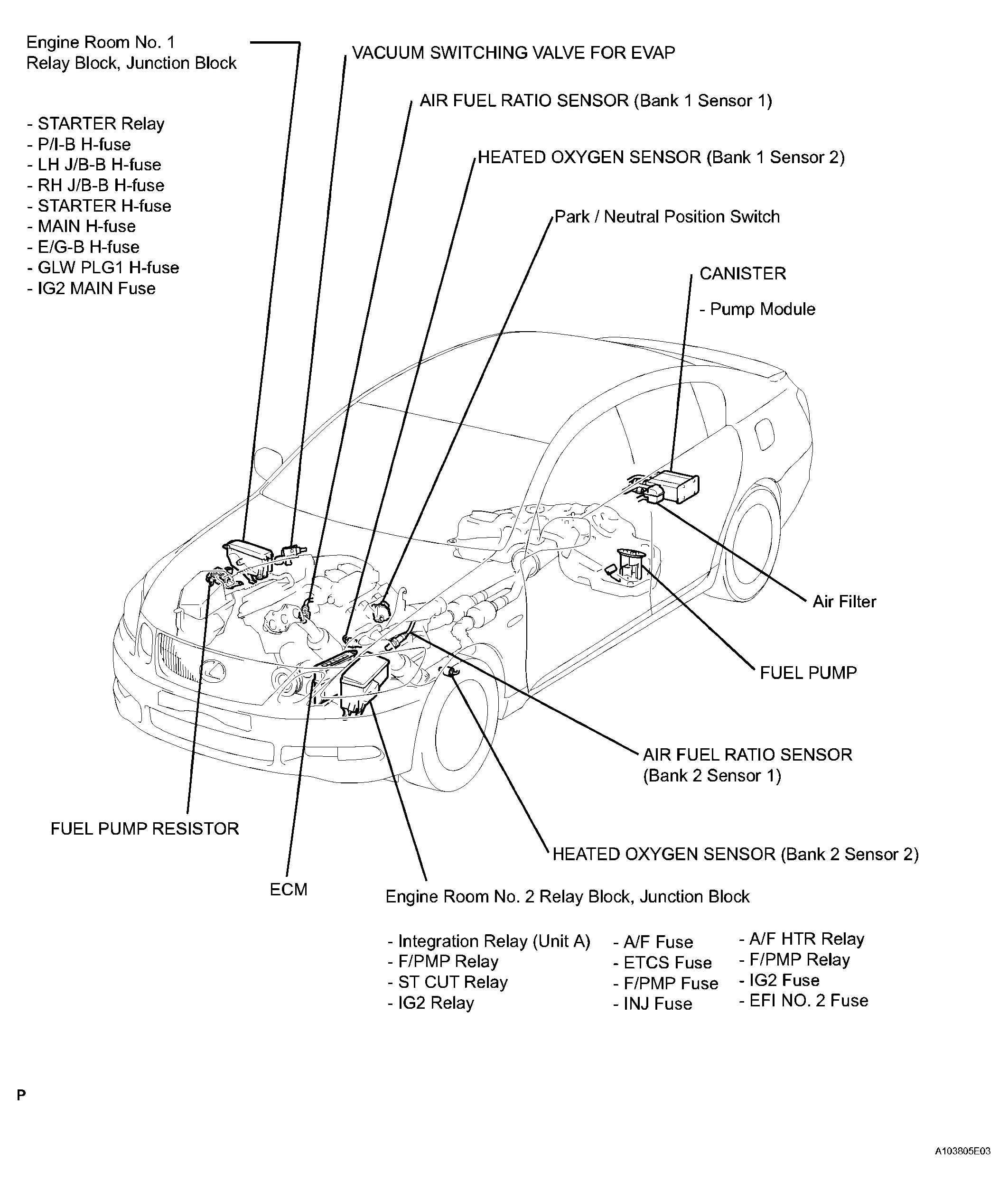

Fig 1: Identifying Engine Control System Parts Location (3GR-FSE) (1 Of 3)
G04017705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

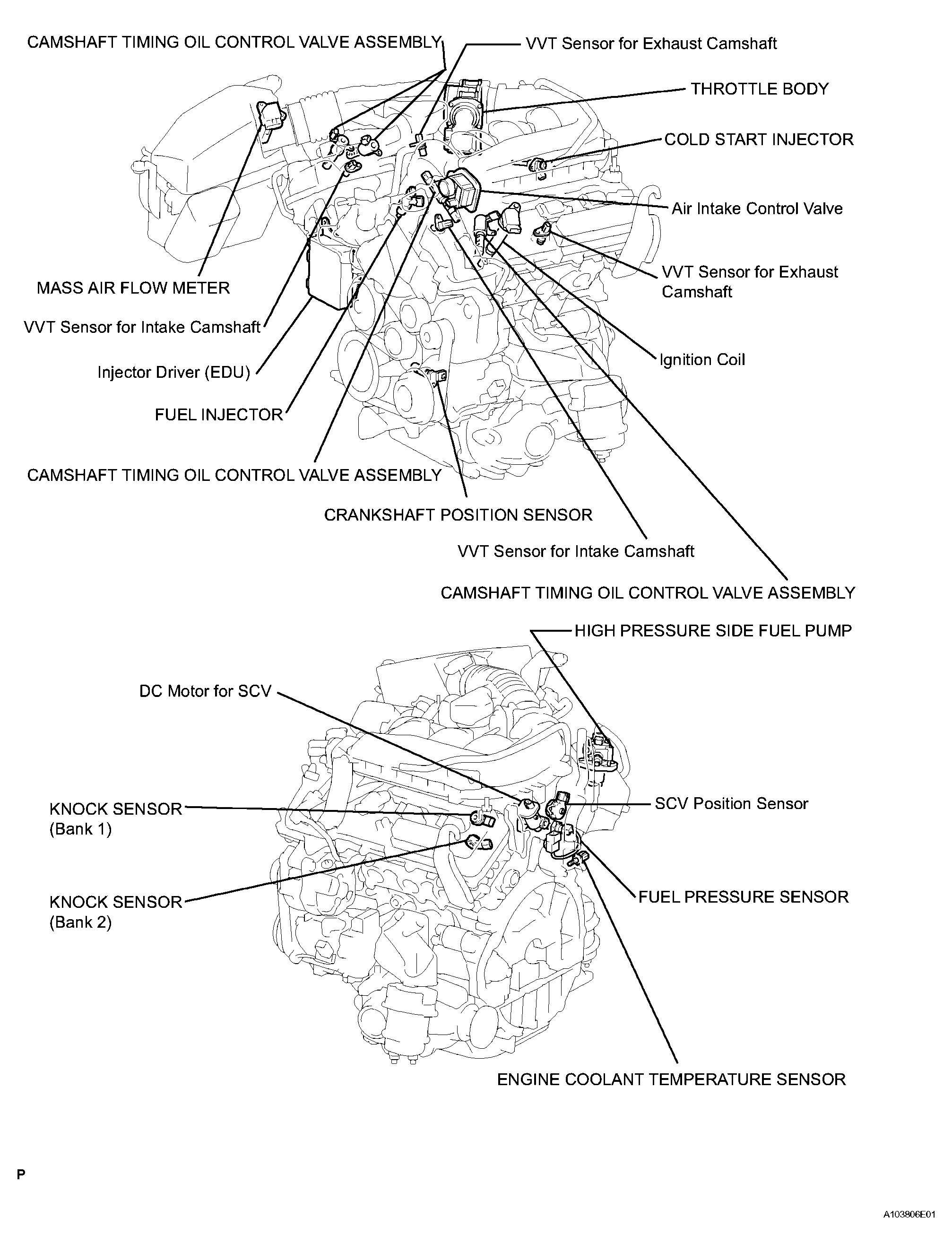

Fig 2: Identifying Engine Control System Parts Location (3GR-FSE) (2 Of 3)
G04017706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

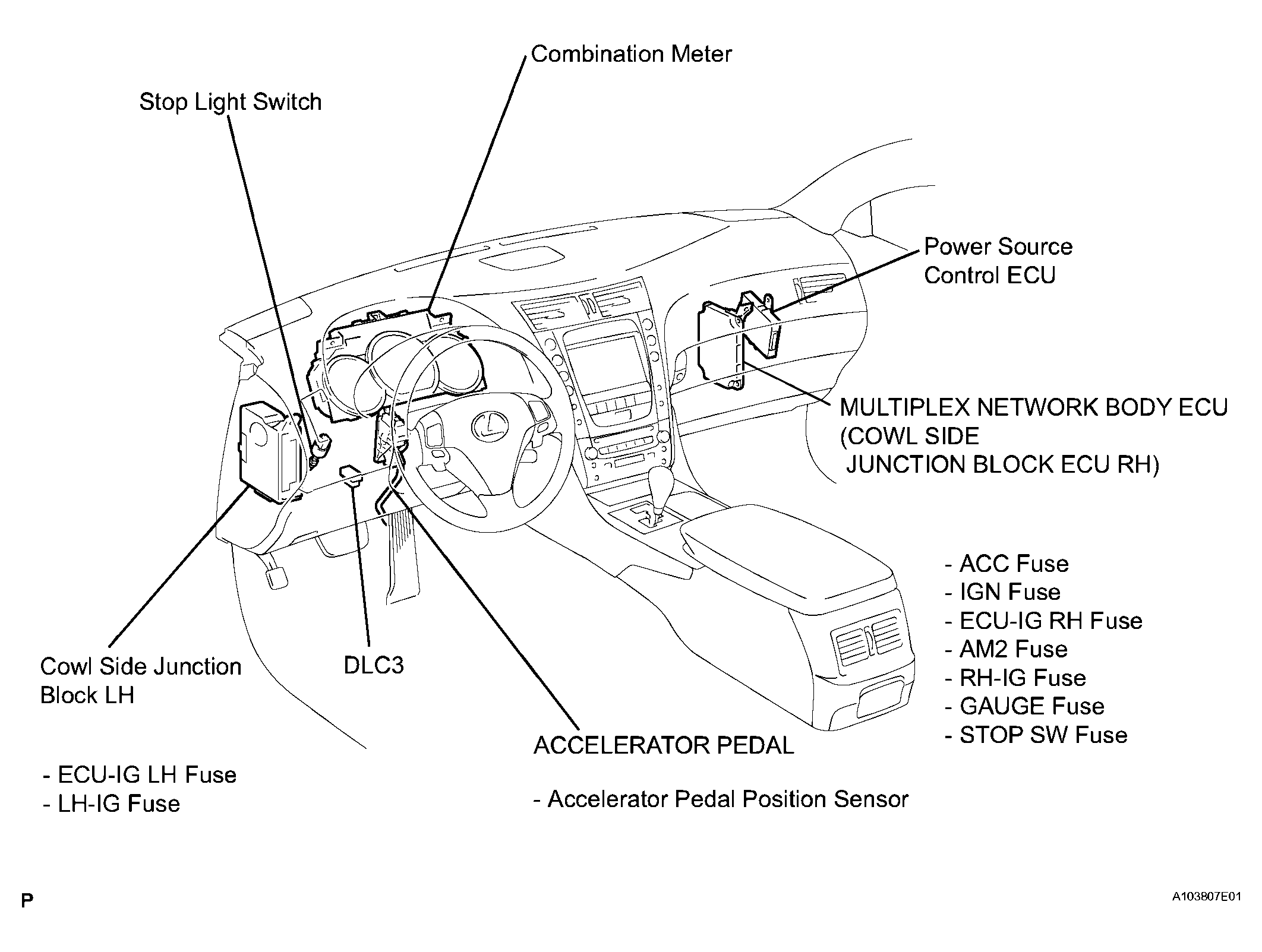

Fig 3: Identifying Engine Control System Parts Location (3GR-FSE) (3 Of 3)
G04017707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
