Engine Coolant Temperature Sensor: Inspection

  1. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

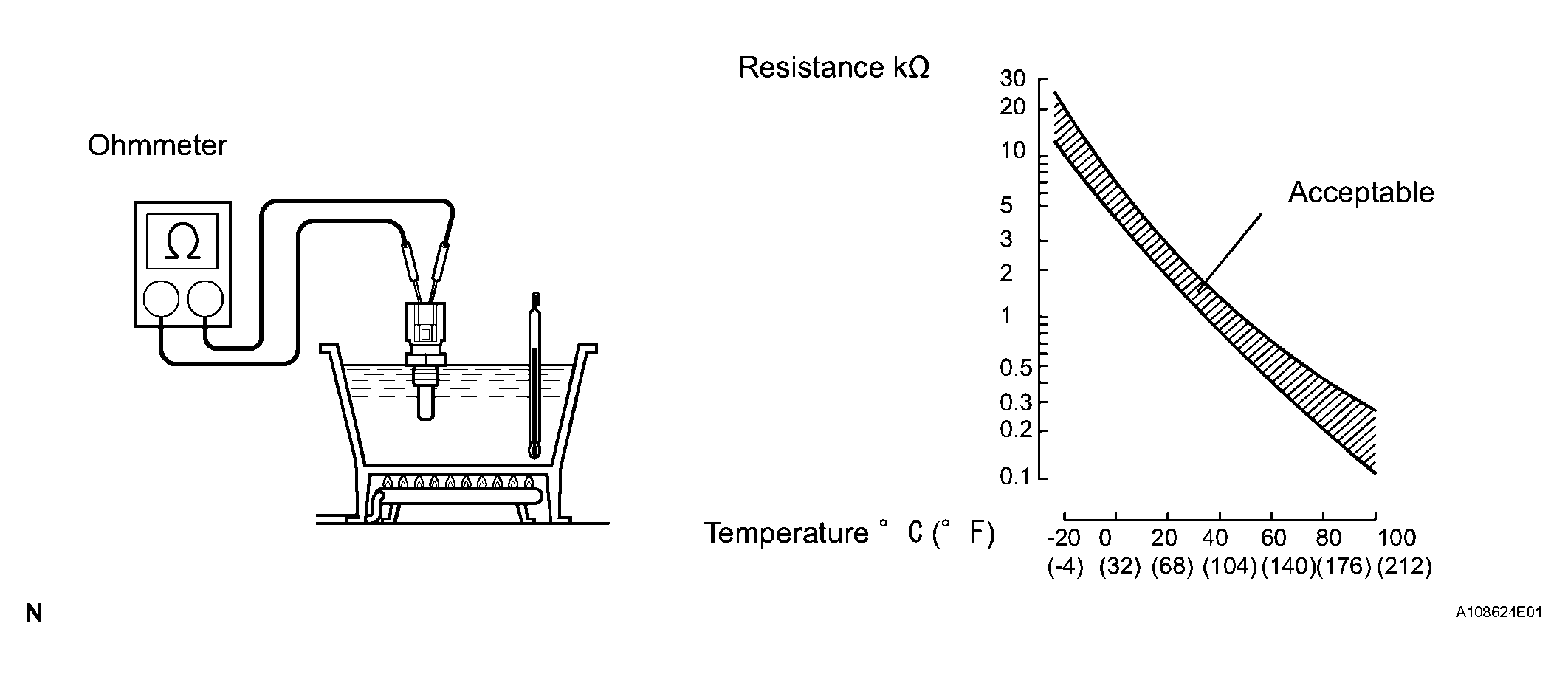

    Fig 1: Measuring Resistance Between Engine Coolant Temperature Sensor Terminals
    G04018074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Partially soak the sensor in the water and warm up the water.
    2. Measure the resistance between the terminals.

      Standard resistance

      ENGINE COOLANT TEMPERATURE SENSOR TERMINALS RESISTANCE SPECIFICATIONS

      Condition Specified Condition
      Approx. 20°C (68°F)  2.32 to 2.59 kΩ
      Approx. 80°C (176°F)  0.310 to 0.326 kΩ

      If the result is not as specified, replace the sensor.

      NOTE: When checking the sensor in the water, keep the terminals dry. After the check, wipe the sensor dry.
