Knock Sensor: Testing and Inspection
INSPECTIONINSPECT KNOCK SENSOR

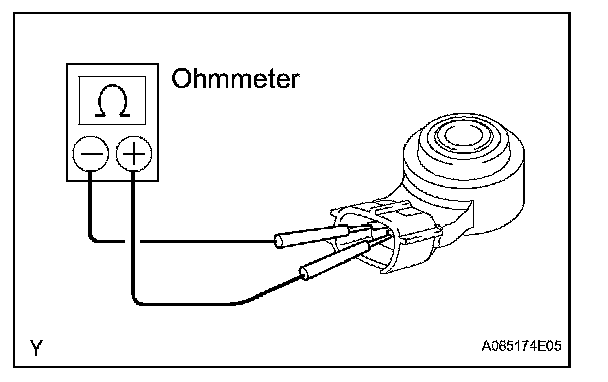

a. Measure the resistance between the terminals.
Standard resistance: 120 to 280 kOhms at 20 degrees C (68 degrees F)
If the result is not as specified, replace the sensor.
INSPECT KNOCK SENSOR

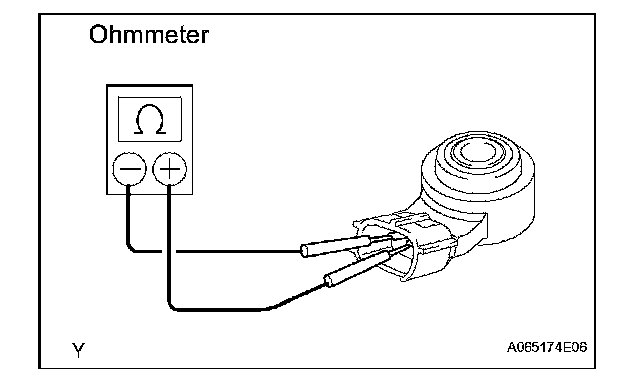

a. Measure the resistance between the terminals.
Standard resistance: 120 to 280 kOhms at 20 degrees C (68 degrees F)
If the result is not as specified, replace the sensor.
