Road Test

PROBLEM SYMPTOM CONFIRMATION
1. Inspect SET function.
  1. Turn the main switch ON.
  2. Drive at the required speed (40 km/h (25 mph) or higher).
  3. Push the cruise control main switch to SET / COAST.
  4. After releasing the switch, check that the vehicle cruises at the set speed.

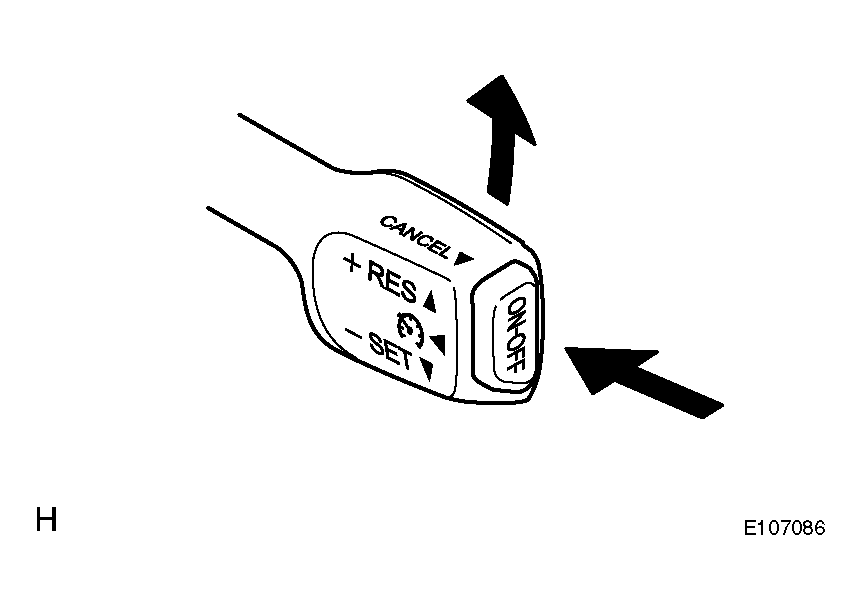

    Fig 1: Inspecting Cruise Control Switch Function
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the ACCELERATION function.
  1. Turn the main switch ON.
  2. Drive at the required speed (40 km/h (25 mph) or higher).
  3. Push the cruise control main switch to SET / COAST.
  4. Check that vehicle speed increases while the cruise control main switch is pushed to RES / ACC, and that the vehicle cruises at the newly set speed when the switch is released.
  5. Momentarily push the cruise control main switch to RES / ACC and then immediately release it. Check that vehicle speed increases by approximately 1.6 km/h (1.0 mph) (tap-up control).

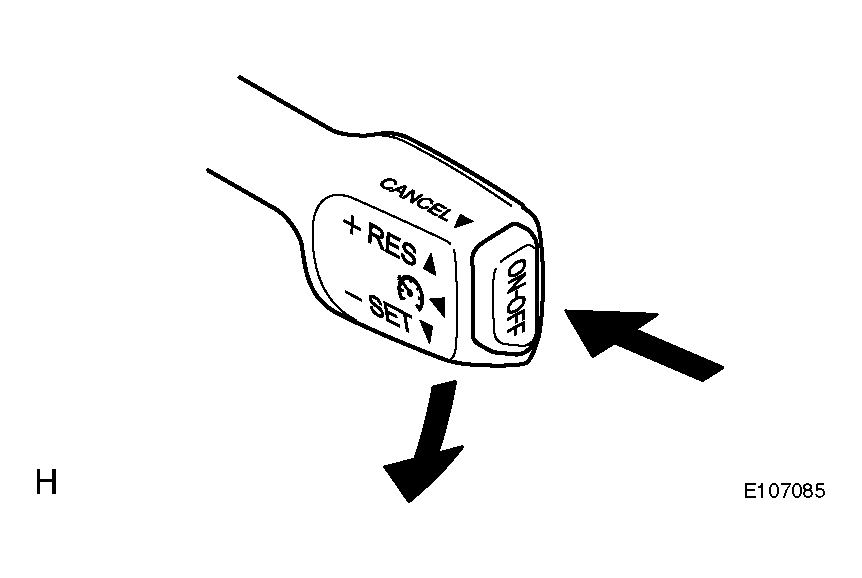

    Fig 2: Inspecting Cruise Control Switch Function
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Inspect the COAST function.
  1. Turn the main switch ON.
  2. Drive at the required speed (40 km/h (25 mph) or higher).
  3. Push the cruise control main switch to SET / COAST.
  4. Check that vehicle speed decreases while the cruise control main switch is pushed to SET/ COAST, and the vehicle cruises at the newly set speed when the switch is released.
  5. Momentarily push the cruise control main switch to SET / COAST, and then immediately release it. Check that vehicle speed decreases by approximately 1.6 km/h (1.0 mph) (tap-down control).

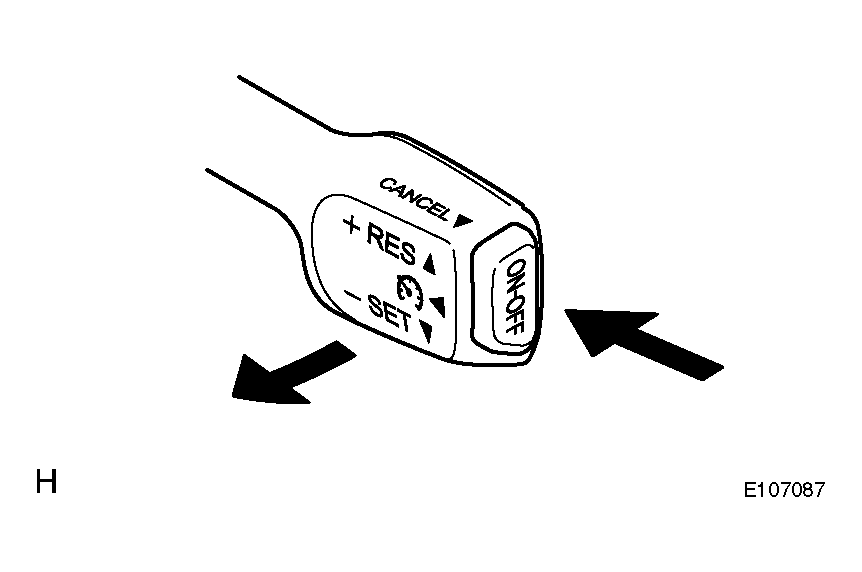

    Fig 3: Inspecting Cruise Control Switch Function
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Inspect the CANCEL function.
  1. Turn the main switch ON.
  2. Drive at the required speed (40 km/h (25 mph) or higher).
  3. Push the cruise control main switch to SET / COAST.
  4. When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.
    - Depressing the brake pedal
    - Moving the shift lever to any position except D (6th, 5th, and 4th gears)
    - Turning the main switch OFF
    - Pulling the cruise control main switch to CANCEL

      Fig 4: Inspecting CANCEL Function
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Inspect the RES (RESUME) function.
  1. Turn the main switch ON.
  2. Drive at the required speed (40 km/h (25 mph) or higher).
  3. Push the cruise control main switch to SET / COAST.
  4. Cancel the cruise control system according to any of the above operations (other than turning the main switch OFF).
  5. After pushing the cruise control main switch to RES / ACC at a driving speed of more than 40 km/h (25 mph), check that the vehicle drives at the set speed.

    Fig 5: Inspecting Cruise Control Switch Function
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
