System Diagram

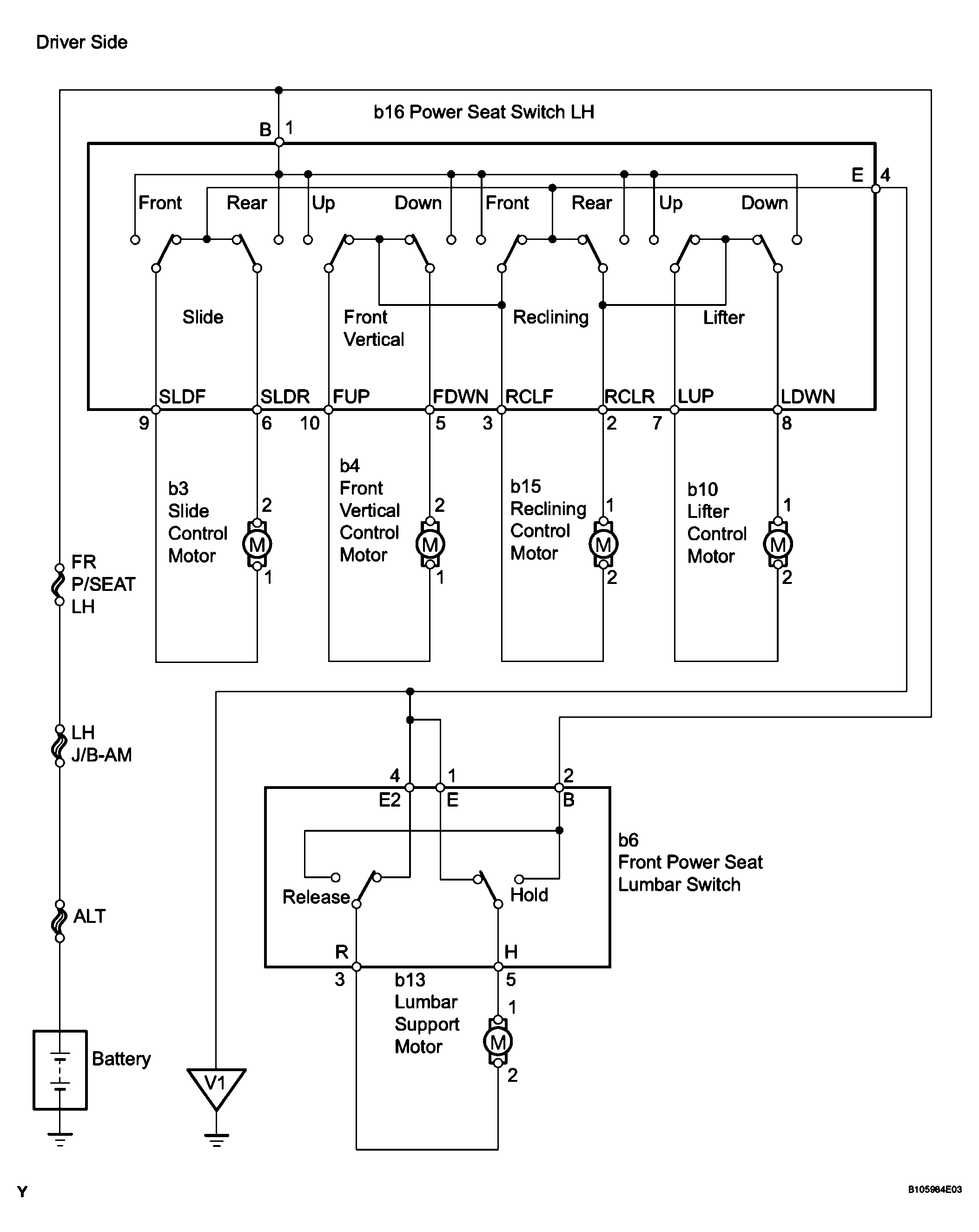

Fig 1: System Diagram - Front Power Seat Control (1 Of 2)
G04023289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

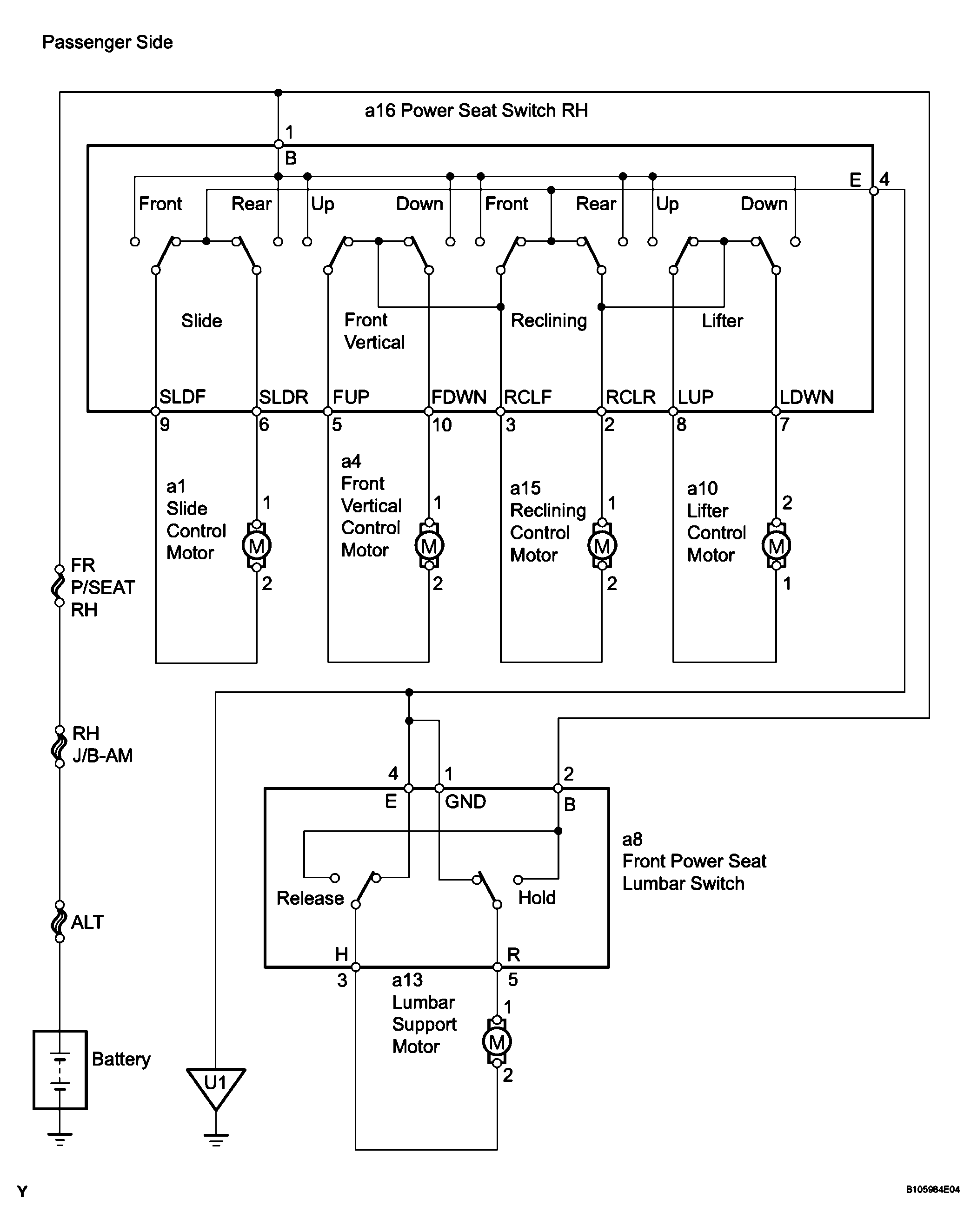

Fig 2: System Diagram - Front Power Seat Control (2 Of 2)
G04023290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
