Ignition for 3GR-FSE: Notes

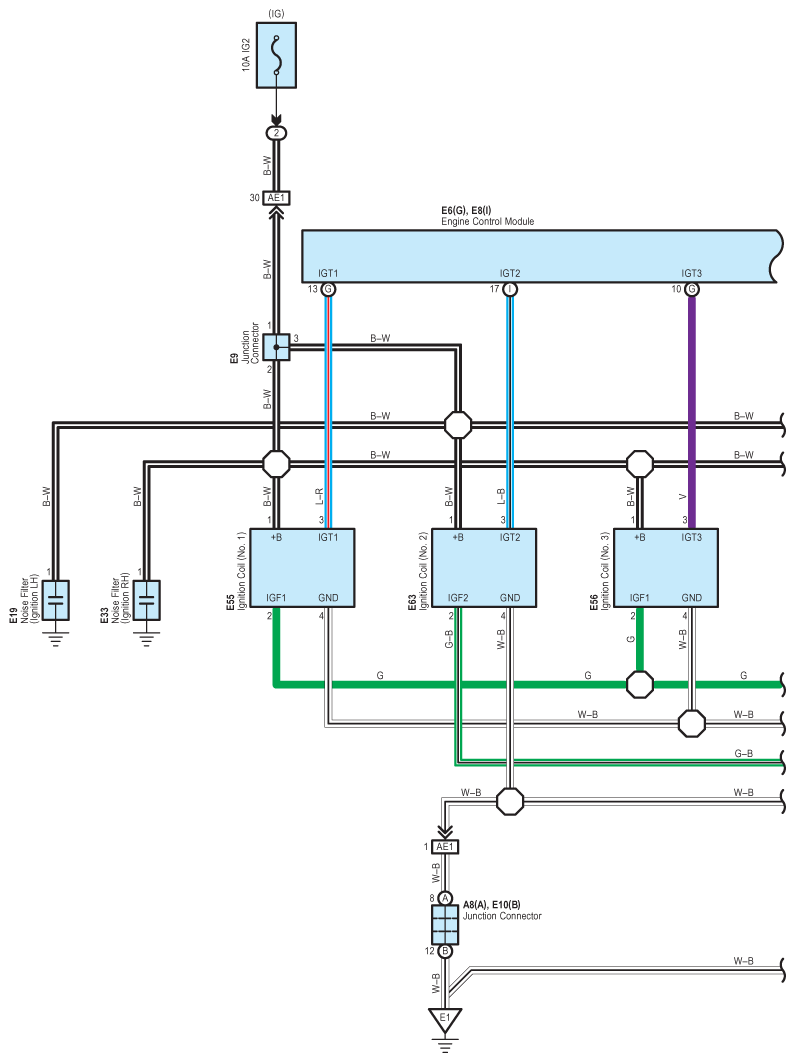

Fig 1: Ignition System Wiring Diagram - 3GR-FSE (1 Of 2)
G08910246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

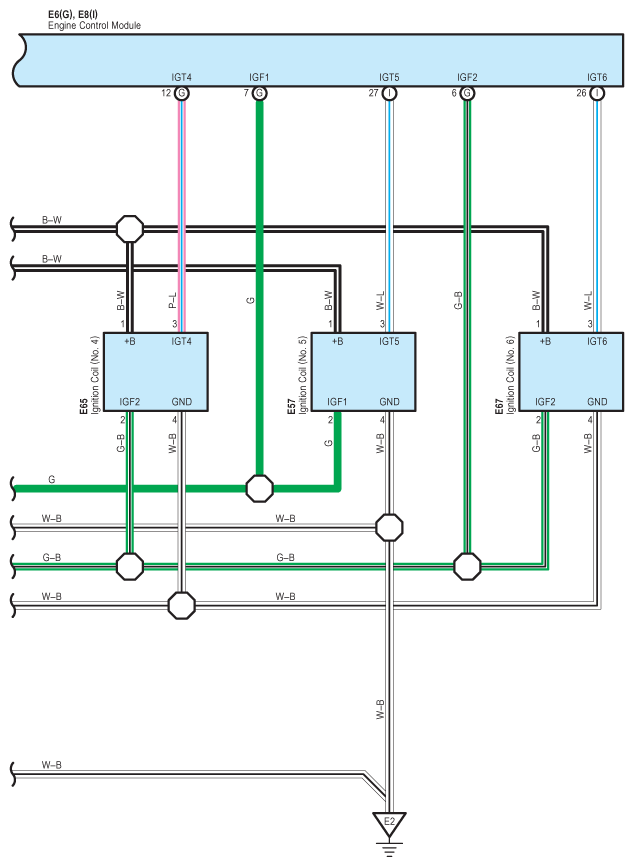

Fig 2: Ignition System Wiring Diagram - 3GR-FSE (2 Of 2)
G08910247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
