Child Restraint Seat Anchor Bracket: Installation

INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY
1. Instal the anchor bracket.

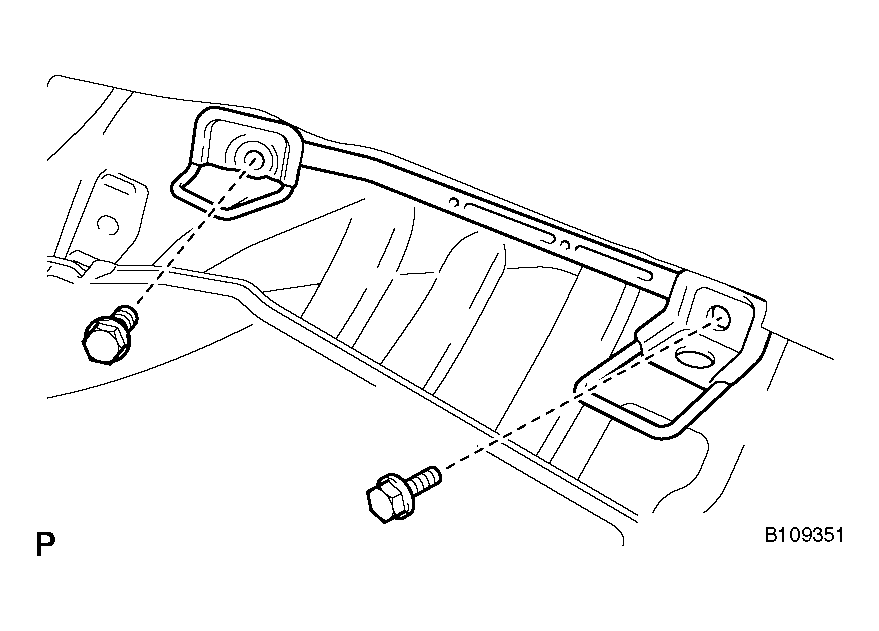

  Fig 1: Identifying Anchor Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 31 N*m (316 kgf*cm, 23 ft.*lbf)
INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )
