System Diagram

The configuration of the electronic control system in the A761E automatic transmission is as shown in the following chart.

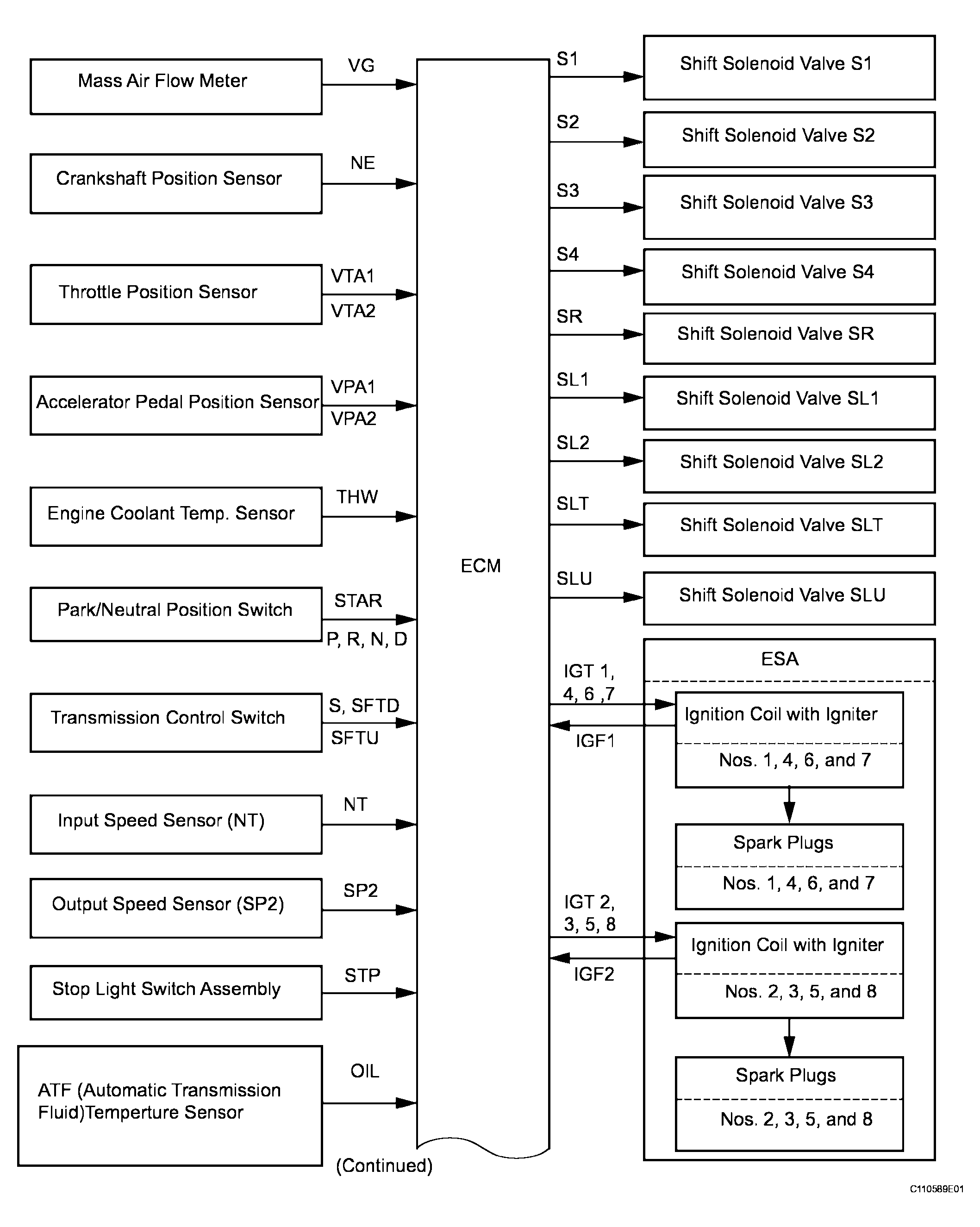

Fig 1: System Diagram - Electronic Controlled Automatic Transmission System (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

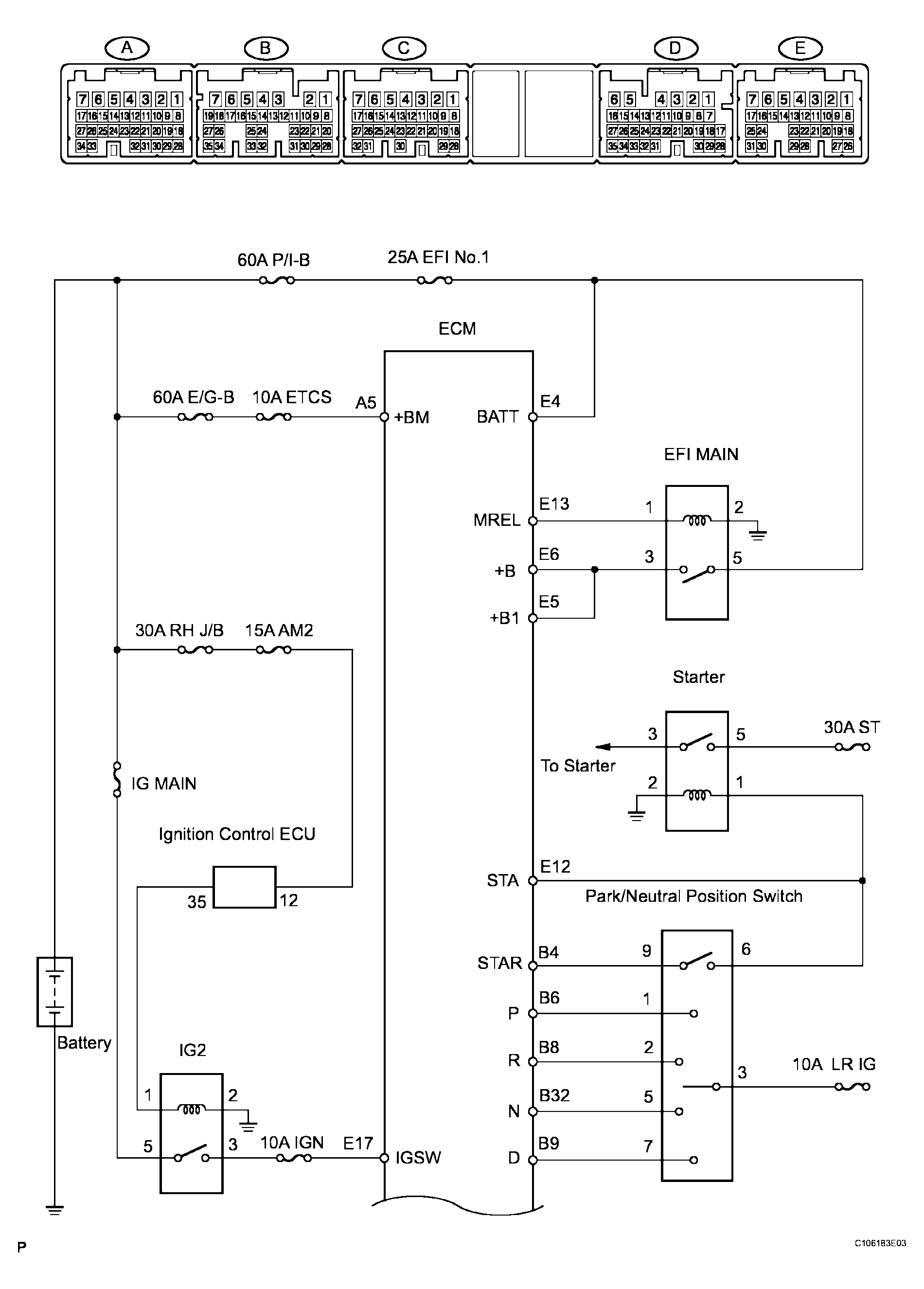

Fig 2: System Diagram - Electronic Controlled Automatic Transmission System (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

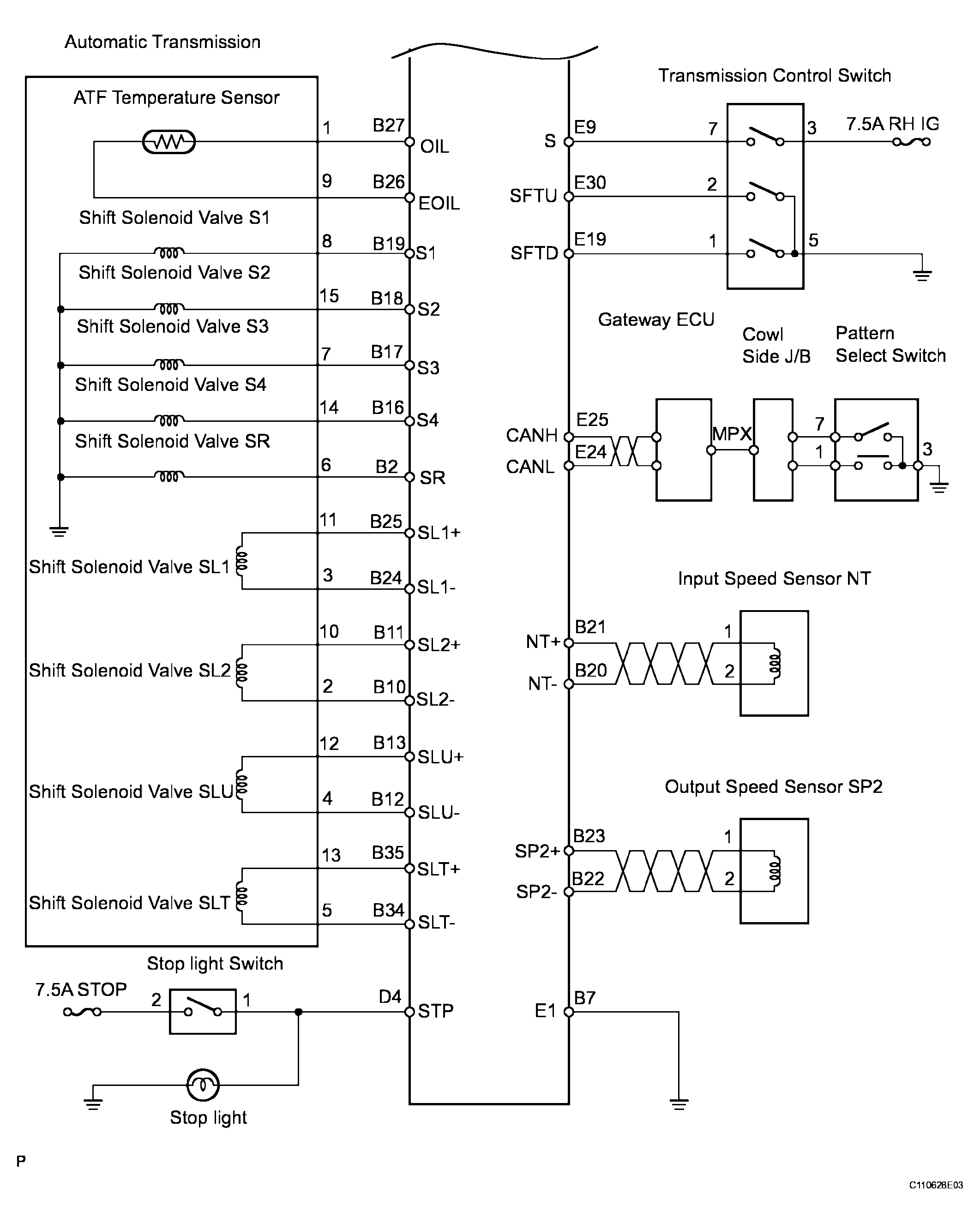

Fig 3: System Diagram - Electronic Controlled Automatic Transmission System (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

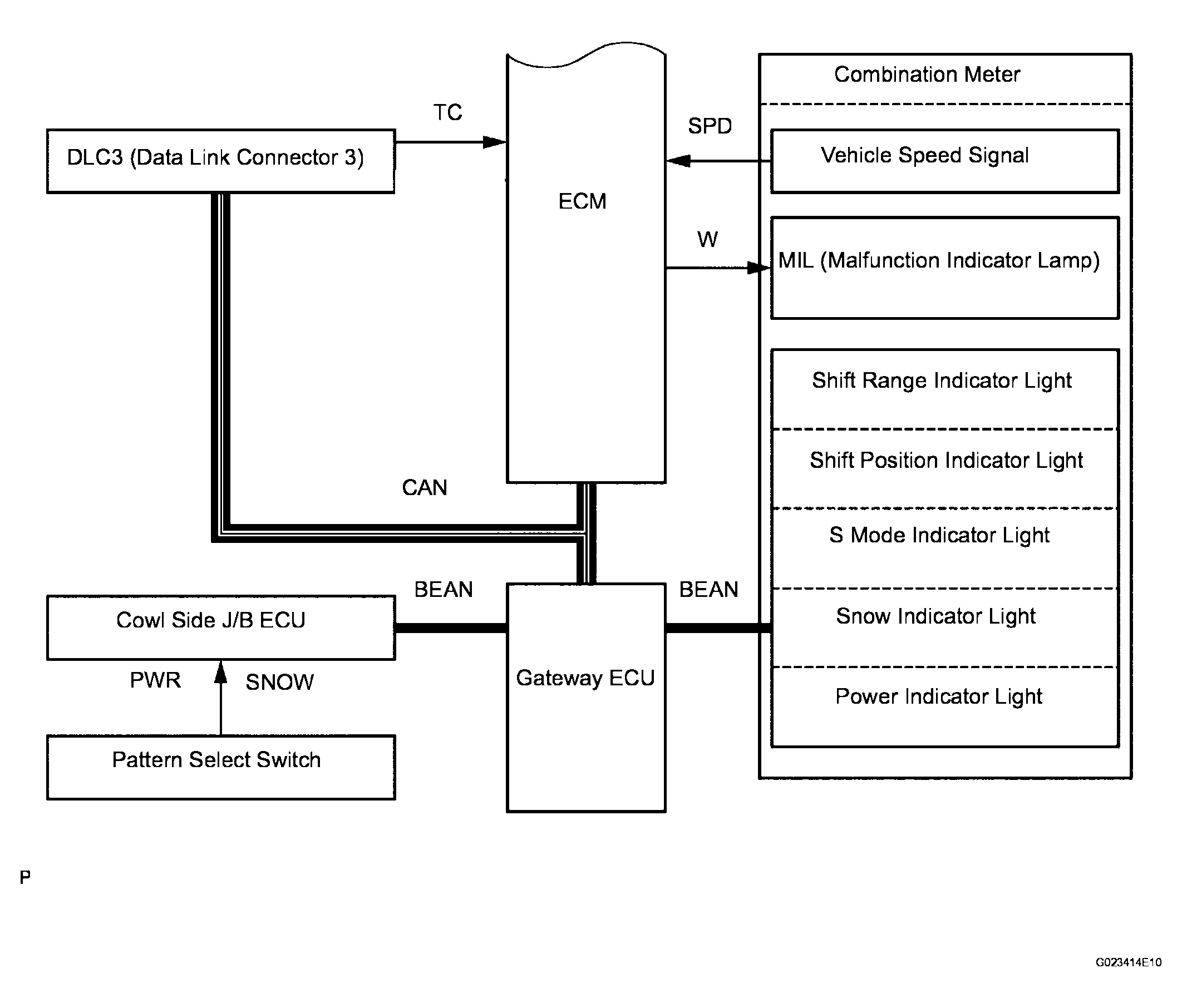

Fig 4: System Diagram - Electronic Controlled Automatic Transmission System (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
