Valve Body Assembly: Installation

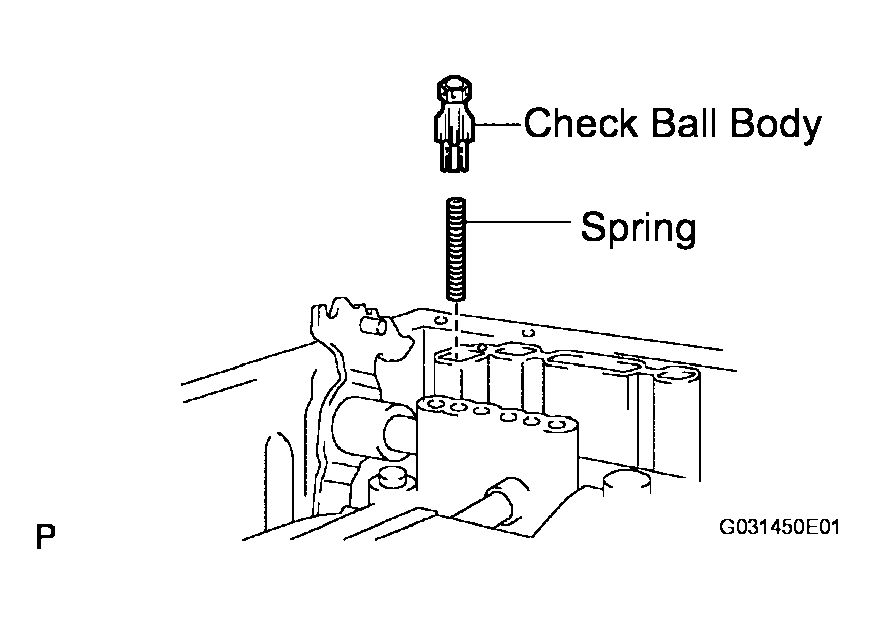

1. Install the check ball body and spring.
   NOTE: Do not drop the check ball body and spring.
   Fig 1: Identifying Check Ball Body And Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

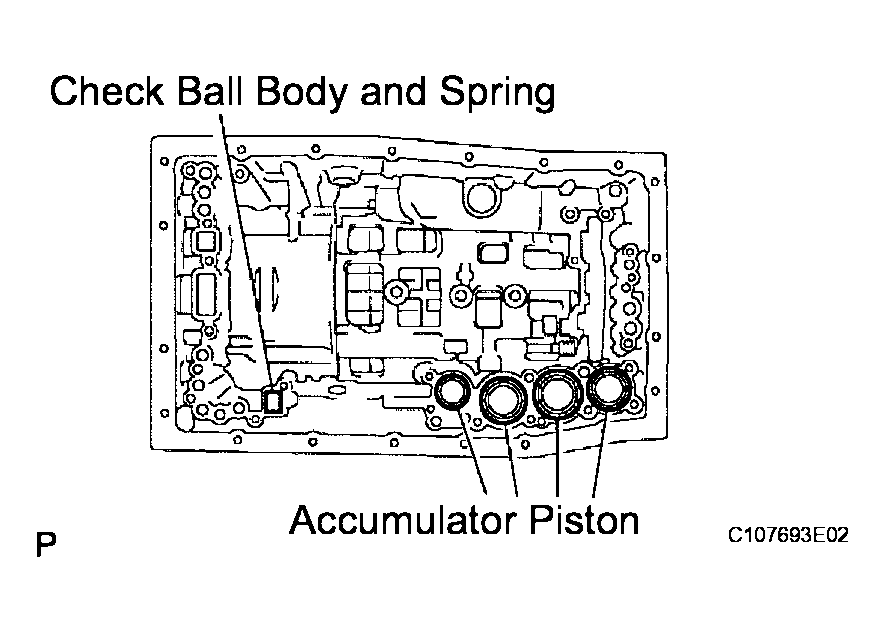

2. Check the accumulator pistons, check ball body and spring as shown in the illustration.
   Fig 2: Identifying Accumulator Piston

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

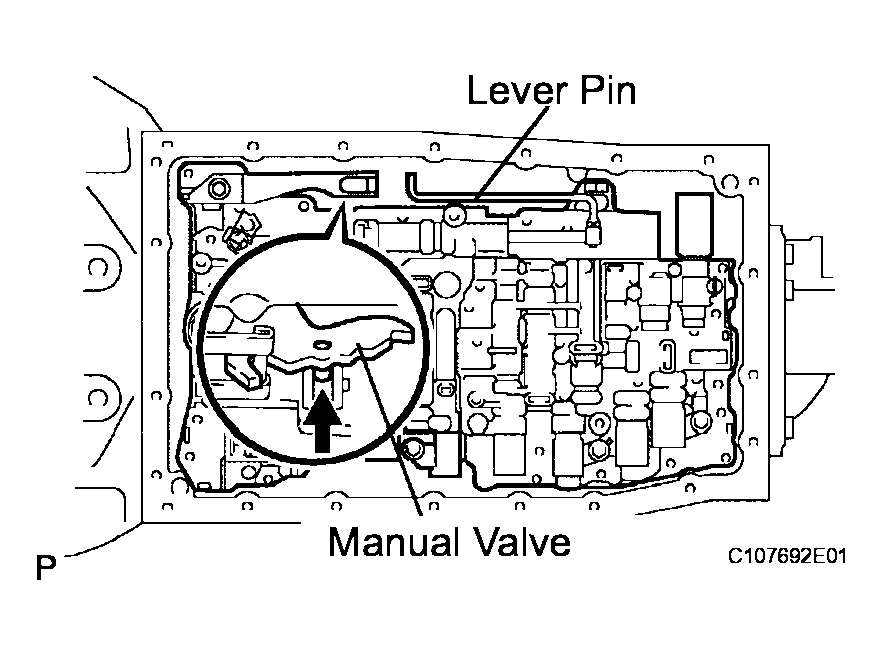

3. Align the groove of the manual valve with the pin of the lever.
   Fig 3: Aligning Groove Of Manual Valve With Pin Of Lever

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

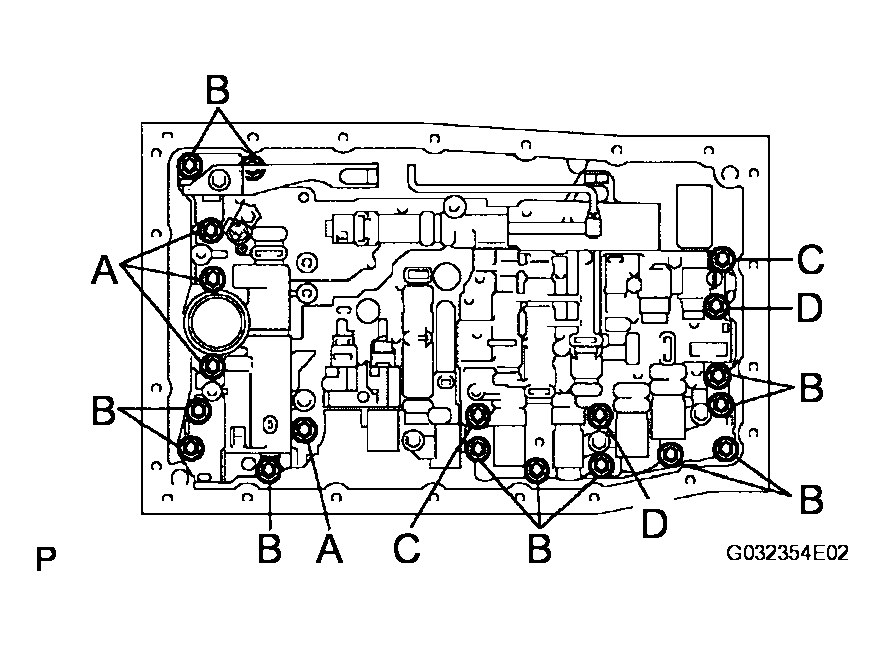

4. Install the 20 bolts.

   Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

   Bolt length:

   Bolt A:

   36 mm (1.42 in.)

   Bolt B:

   25 mm (0.98 in.)

   Bolt C:

   45 mm (1.77 in.)

   Bolt D:

   50 mm (1.97 in.)

   Fig 4: Identifying Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
