Valve Body: Components

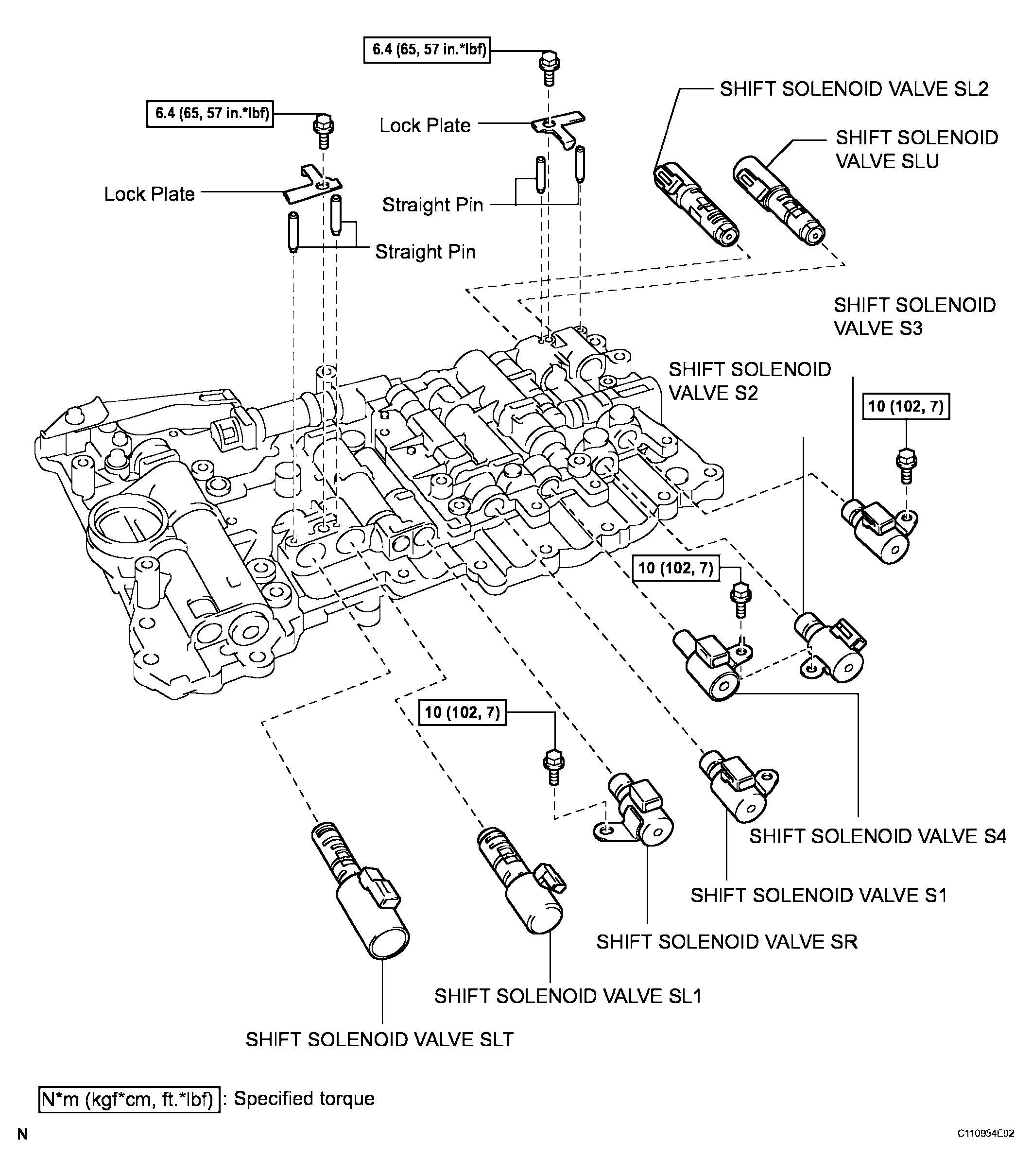

Fig 1: Valve Body Replacement Components With Torque Specifications
G04028814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
