Transfer Valve Body Assembly: Components

Fig 1: Transfer Valve Body Assembly Replacement Components With Torque Specifications (1 Of 2)
G04028957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

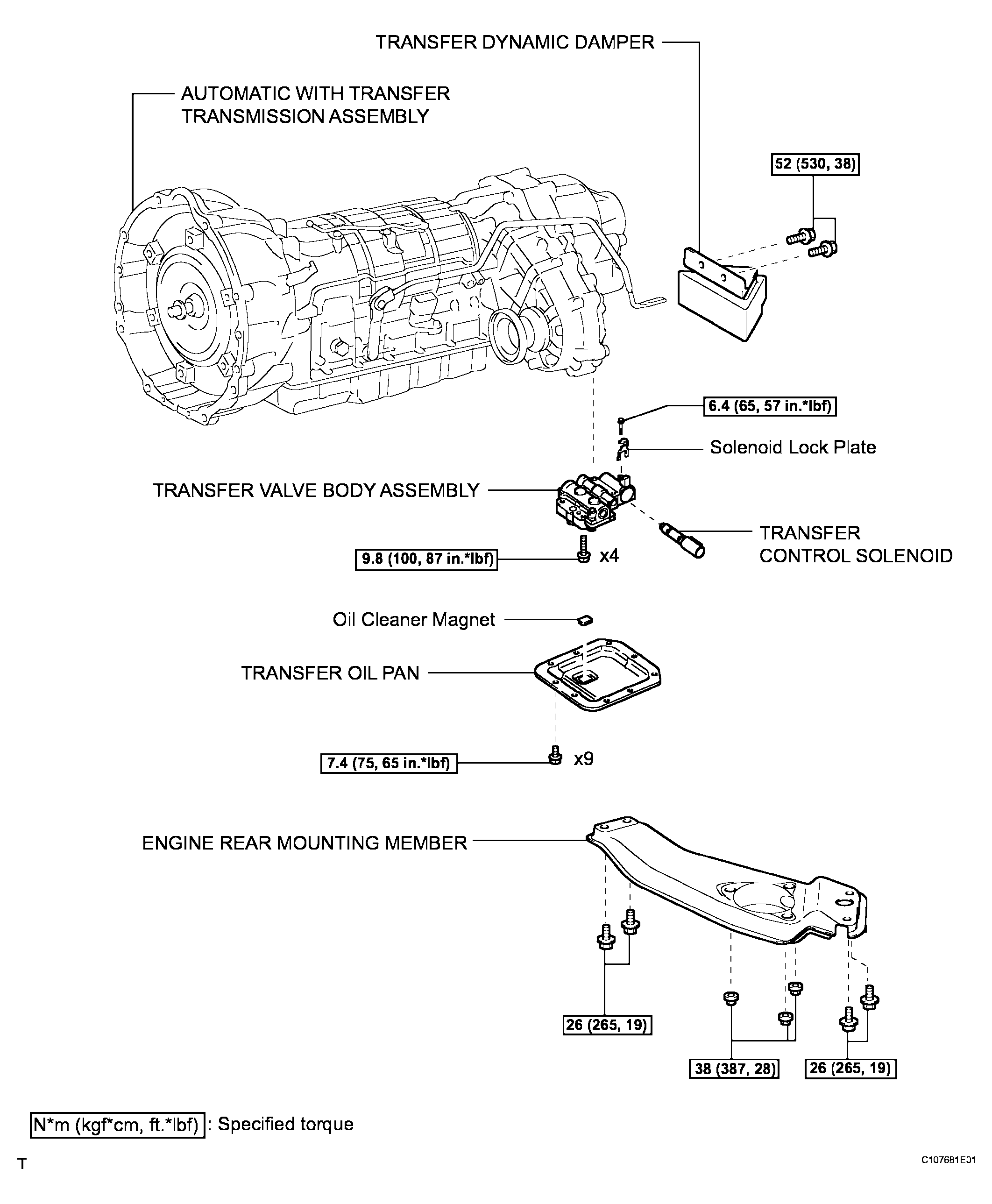

Fig 2: Transfer Valve Body Assembly Replacement Components With Torque Specifications (2 Of 2)
G04028958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
