Remote Control Mirror: Notes

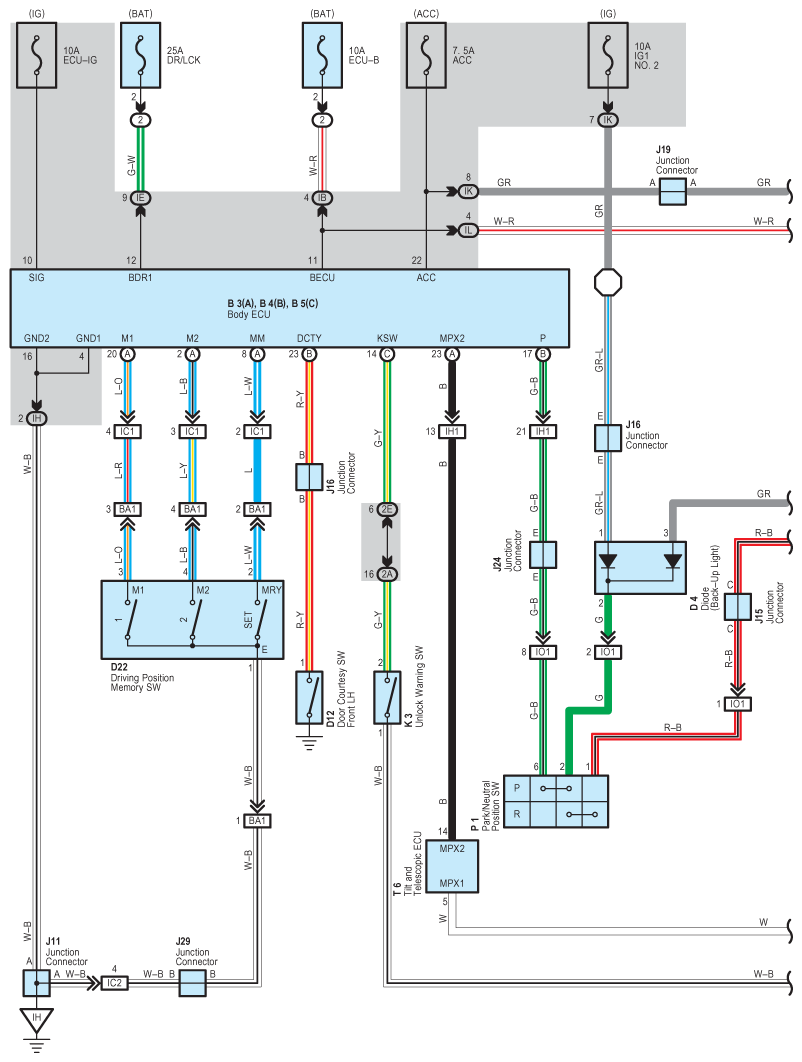

Fig 1: Remote Control Mirror Wiring Diagram (1 Of 3)
G08910141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

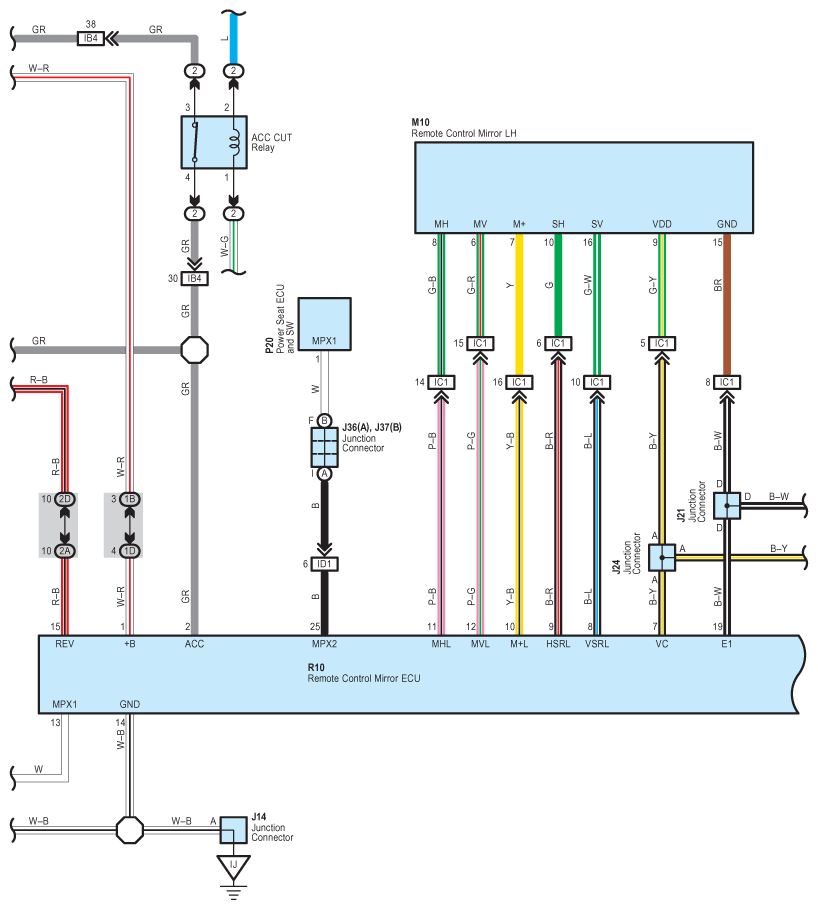

Fig 2: Remote Control Mirror Wiring Diagram (2 Of 3)
G08910142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

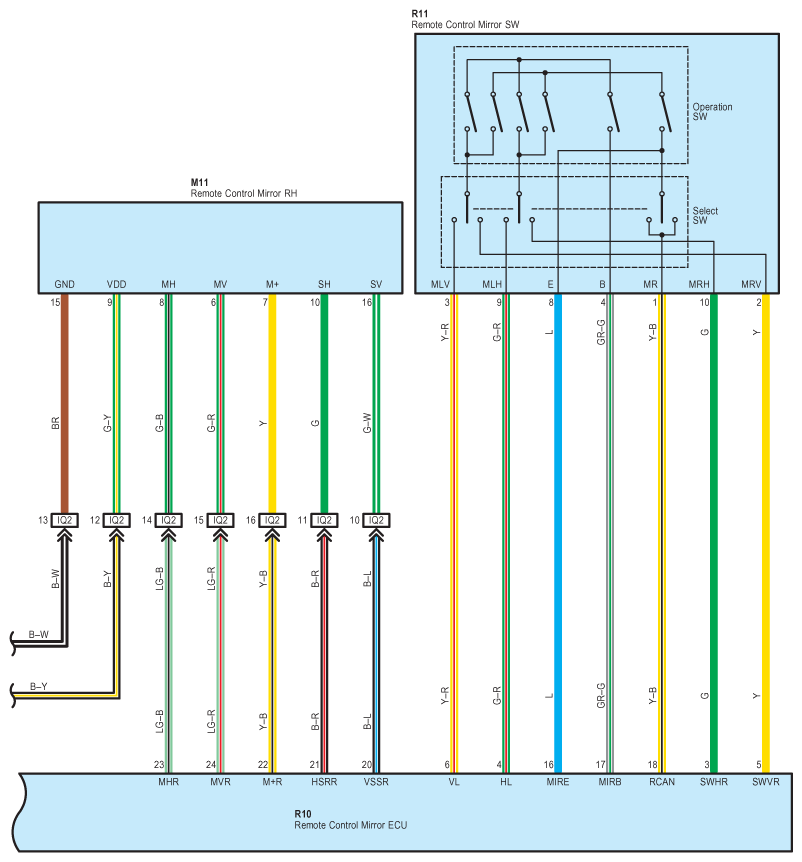

Fig 3: Remote Control Mirror Wiring Diagram (3 Of 3)
G08910143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
