Terminals Of Ecu

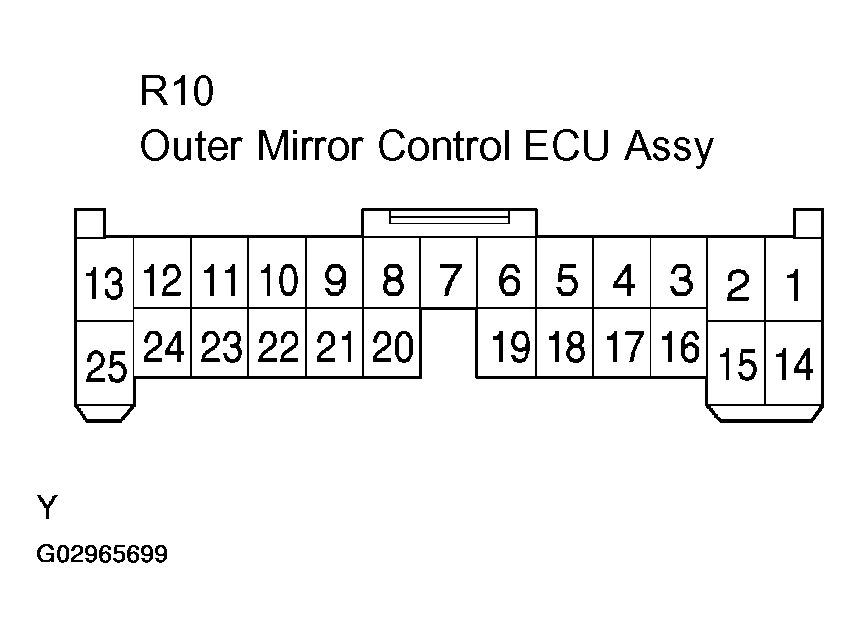

- CHECK OUTER MIRROR CONTROL ECU ASSY
- Disconnect the R10 mirror ECU connector.
- Check the voltage or continuity of each terminal of the wire harness side connector.
Standard:
OUTER MIRROR CONTROL ECU ASSY (1 OF 4)Symbols (Terminal No.) Wiring Color Condition Specified Condition GND (R10-14) <=> Body ground W-B <=> - Constant Continuity +B (R10-1) <=> Body ground W-R <=>- Constant 10 - 14 V ACC (R10-2) <=> Body ground GR <=>- Ignition switch OFF -> ACC 0 V <=> 10- 14 V REV (R10-15) <=> Body ground R-B <=>- Ignition switch OFF -> ACC 0V <=> 10 - 14 V If the result is not as specified, there may be a malfunction on the wire harness side.
- Reconnect the R10 mirror ECU connector, and check the voltage of terminal of the connector.
Standard:
OUTER MIRROR CONTROL ECU ASSY (2 OF 4)Symbols (Terminal No.) Wiring Color Condition Specified Condition M+L (R10-10) <=> GND (R10-14) Y-B <=> W-B Ignition switch ACC, Left/Right adjustment switch L side, Mirror switch OFF -> RIGHT or DOWN 0 - 8 V or more MHL (R10-11) <=> GND (R10-14) P-B <=> W-B Ignition switch ACC, Left/Right adjustment switch L side, Mirror switch OFF -> LEFT 0 - 8 V or more MVL (R10-12) <=> GND (R10-14) P-G <=> W-B Ignition switch ACC, Left/Right adjustment switch L side, Mirror switch OFF -> UP 0 - 8 V or more M+R (R10-22) <=> GND (R10-14) Y-B <=> W-B Ignition switch ACC, Left/Right adjustment switch L side, Mirror switch OFF -> RIGHT or DOWN 0 - 8 V or more MHR (R10-23) <=> GND (R10-14) LG-B <=>W-B Ignition switch ACC, Left/Right adjustment switch L side, Mirror switch OFF -> LEFT 0 - 8 V or more MVR (R10-24) <=>GND (R10-14) LG-R <=>W-B Ignition switch ACC, Left/Right adjustment switch L side, Mirror switch OFF -> UP 0 - 8 V or more If the result is not as specified, the ECU may be malfunctioning.
Standard:
OUTER MIRROR CONTROL ECU ASSY (3 OF 4)Symbols (Terminal No.) Wiring Color Condition Specified Condition VSRL (R10-8) <=> Body ground B-L <=>- Ignition switch ACC, Left/Right adjustment switch L side, Mirror switch innermost position <=> outermost position Approx. 4 V ->0.23 V HSRL (R10-9) <=> Body ground B-R <=>- Ignition switch ACC, Left/Right adjustment switch L side, Mirror switch uppermost position <=> lowermost position Approx. 3.7 V ->0.27 V VSSR (R10-20) <=> Body ground B-L <=>- Ignition switch ACC, Left/Right adjustment switch L side, Mirror switch innermost position <=> outermost position Approx. 4 V ->0.23 V HSRR (R10-21) <=> Body ground B-R <=>- Ignition switch ACC, Left/Right adjustment switch R side, Mirror switch uppermost position <=> lowermost position Approx. 3.7 V ->0.27 V MHR (R10-23) <=> Body ground LG-B <=>- Ignition switch OFF, All lights OFF. All doors closed and left untouched for 30 sec. or more <=> Any door open No Hz output (0 HZ) <=> Hz output MVR (R10-24) <=> Body ground LG-R <=>- Ignition switch OFF. All lights OFF All doors closed and left untouched for 30 sec. or more <=> Any door open No Hz output (0 HZ) <=> Hz output If the result is not as specified, replace the mirror assy, or the multiplex control system may be malfunctioning.
Standard:
OUTER MIRROR CONTROL ECU ASSY (4 OF 4)Symbols (Terminal No.) Wiring Color Condition Specified Condition VC (R10-7) <=> Body ground B-Y <=>- Ignition switch OFF -> ACC 0 V ->5 V If the result is not as specified, the ECU may be malfunctioning.
