Inspection Procedure

  1. READ VALUE OF HAND-HELD TESTER
    1. Using the hand-held tester, check that un-lock warning switch signal is output when the switch is operated.

      Standard (Body ECU (Switch condition)):

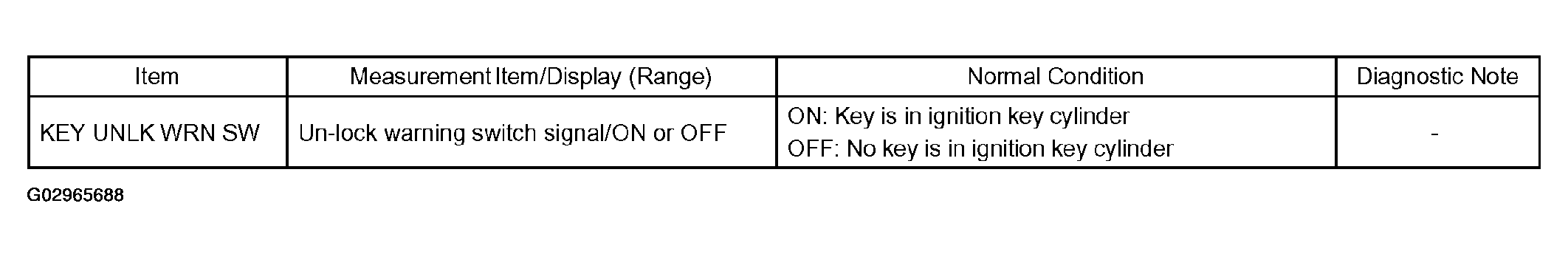

      Fig 1: Standard (Body ECU (Switch Condition)) Table
      G02965688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: Go to step   4 .
    2. NG: Go to next step.
  2. INSPECT UNLOCK WARNING SWITCH ASSY
    1. Remove the unlock warning switch.
    2. Inspect the unlock warning switch continuity.

      Standard:

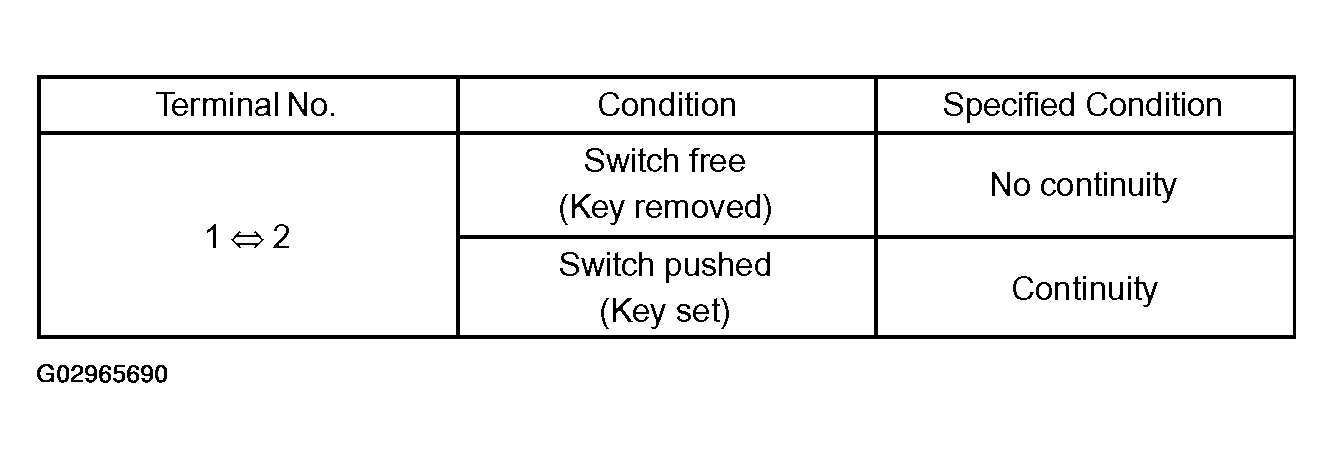

      Fig 2: Unlock Warning Switch Assy Table
      G02965690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

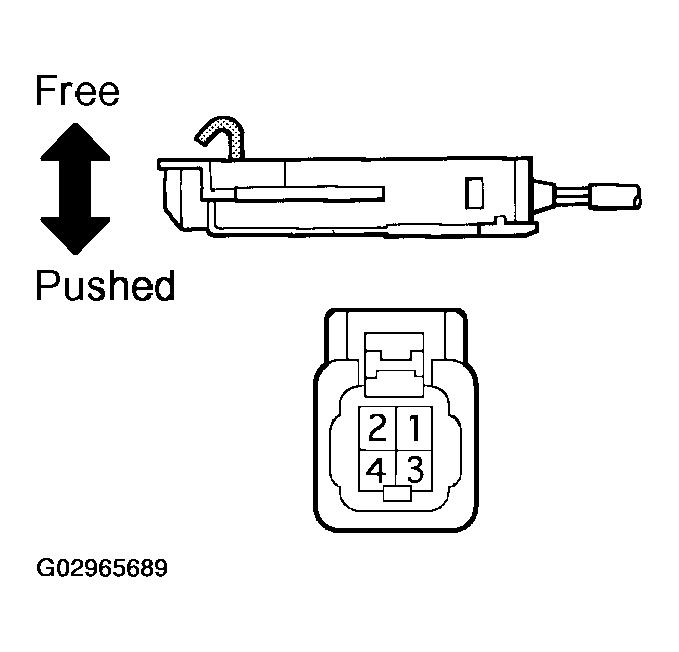

      Fig 3: Inspecting Unlock Warning Switch Assy
      G02965689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE UNLOCK WARNING SWITCH ASSY
    2. OK: Go to next step.
  3. CHECK WIRE HARNESS (UNLOCK WARNING SWITCH ASSY <=> INSTRUMENT PANEL JUNCTION BLOCK ASSY (BODY ECU))
    1. Disconnect the K3 unlock warning switch and B5 body ECU connectors.
    2. Check the continuity between the wire harness side connectors.

      Standard (Check for open):

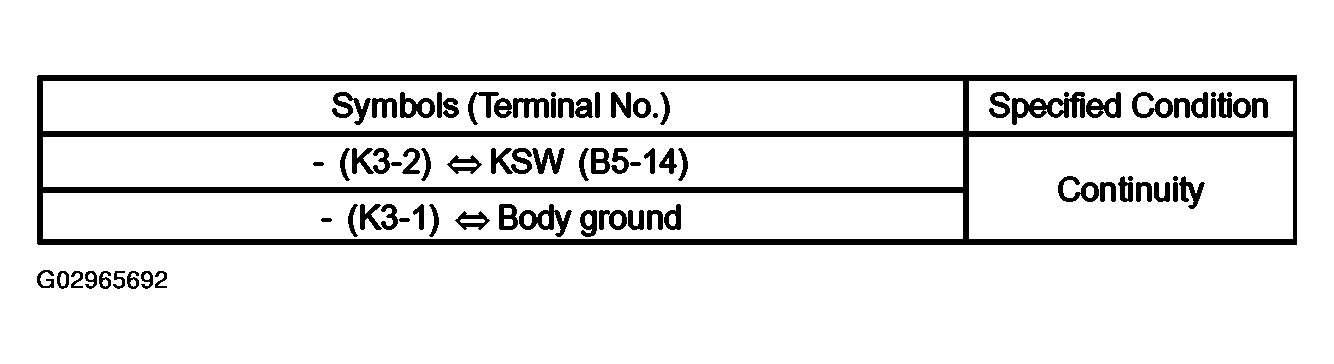

      Fig 4: Unlock Warning Switch Assy <=> Instrument Panel Junction Block Assy (Body ECU) Table
      G02965692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

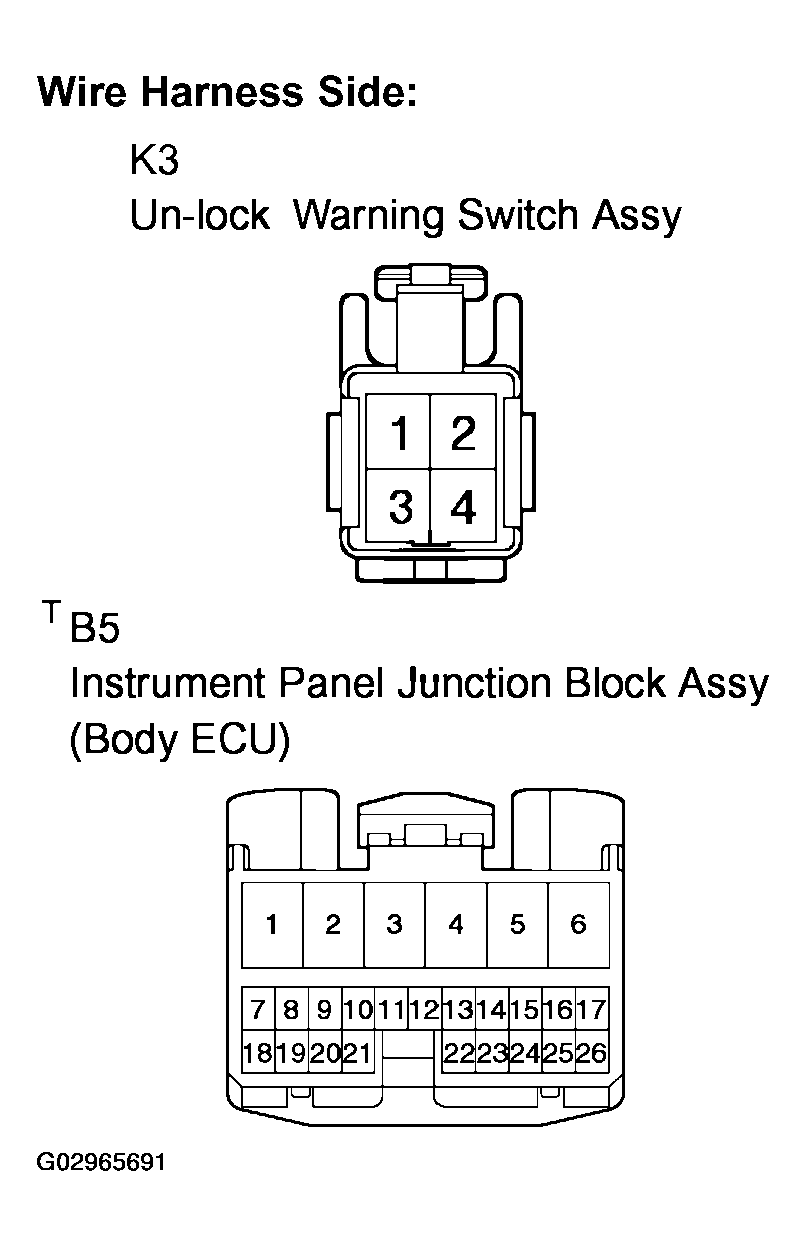

      Fig 5: Checking Wire Harness (Unlock Warning Switch Assy <=> Instrument Panel Junction Block Assy (Body ECU))
      G02965691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
  4. READ VALUE OF HAND-HELD TESTER
    1. Using the hand-held tester, check that driver side door courtesy switch signal is output when the switch is operated.

      Standard (Body ECU (Switch condition)):

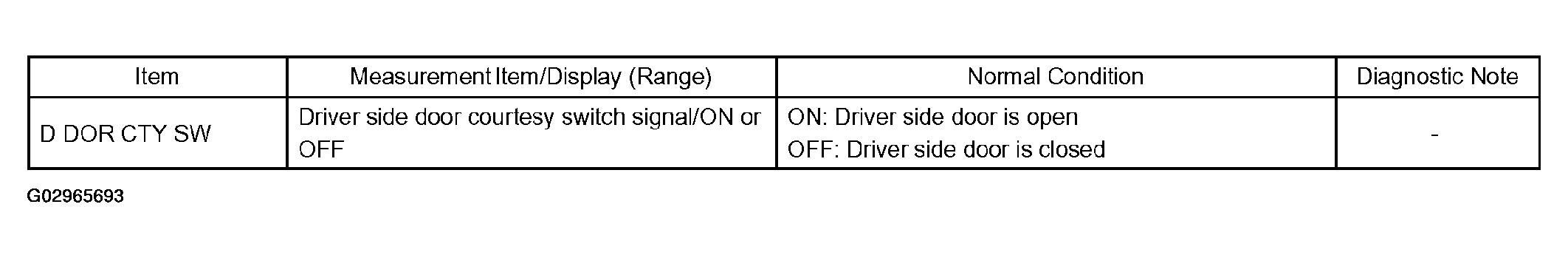

      Fig 6: Standard (Body ECU (Switch Condition)) Table
      G02965693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
    2. NG: Go to next step.
  5. INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE)
    1. Remove the courtesy lamp switch.
    2. Inspect the courtesy lamp switch continuity.

      Standard:

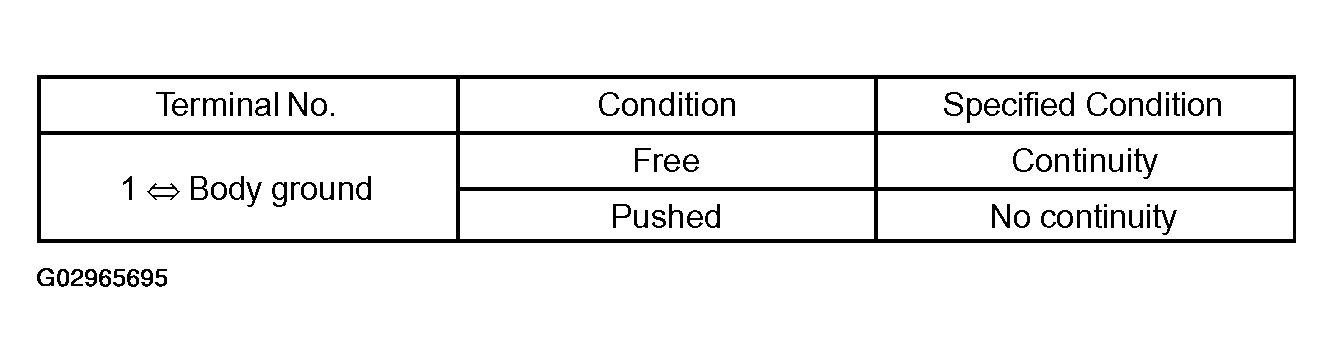

      Fig 7: Front Door Courtesy Lamp Switch Assy (Driver Side) Table
      G02965695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

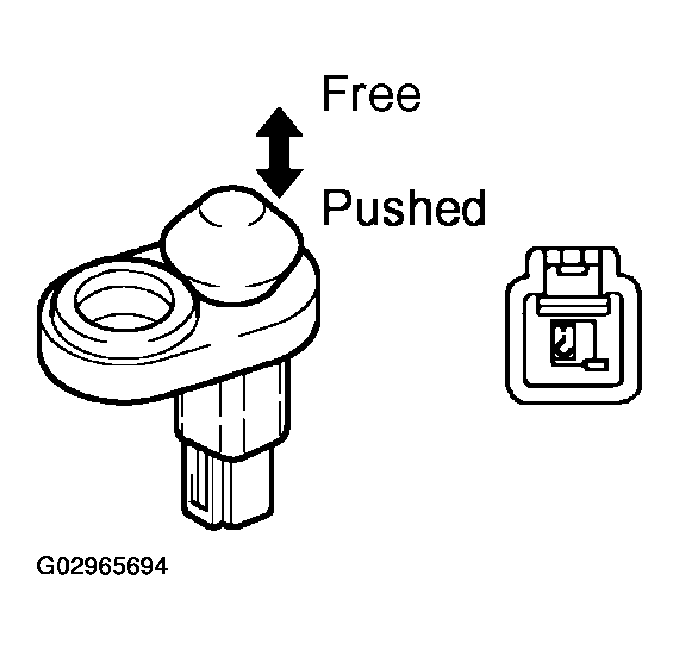

      Fig 8: Inspecting Front Door Courtesy Lamp Switch Assy (Driver Side)
      G02965694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY
    2. OK: Go to next step.
  6. CHECK WIRE HARNESS (FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE) <=> INSTRUMENT PANEL JUNCTION BLOCK ASSY (BODY ECU))
    1. Disconnect the D12 courtesy lamp switch and B4 body ECU connectors.
    2. Check the continuity between the wire harness side connectors.

      Standard (Check for open):

      FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE) <=> INSTRUMENT PANEL JUNCTION BLOCK ASSY (BODY ECU)) CONTINUITY

      Symbols (Terminal No.) Specified Condition
      - (D12-1) <=> DCTY (B4-23) Continuity

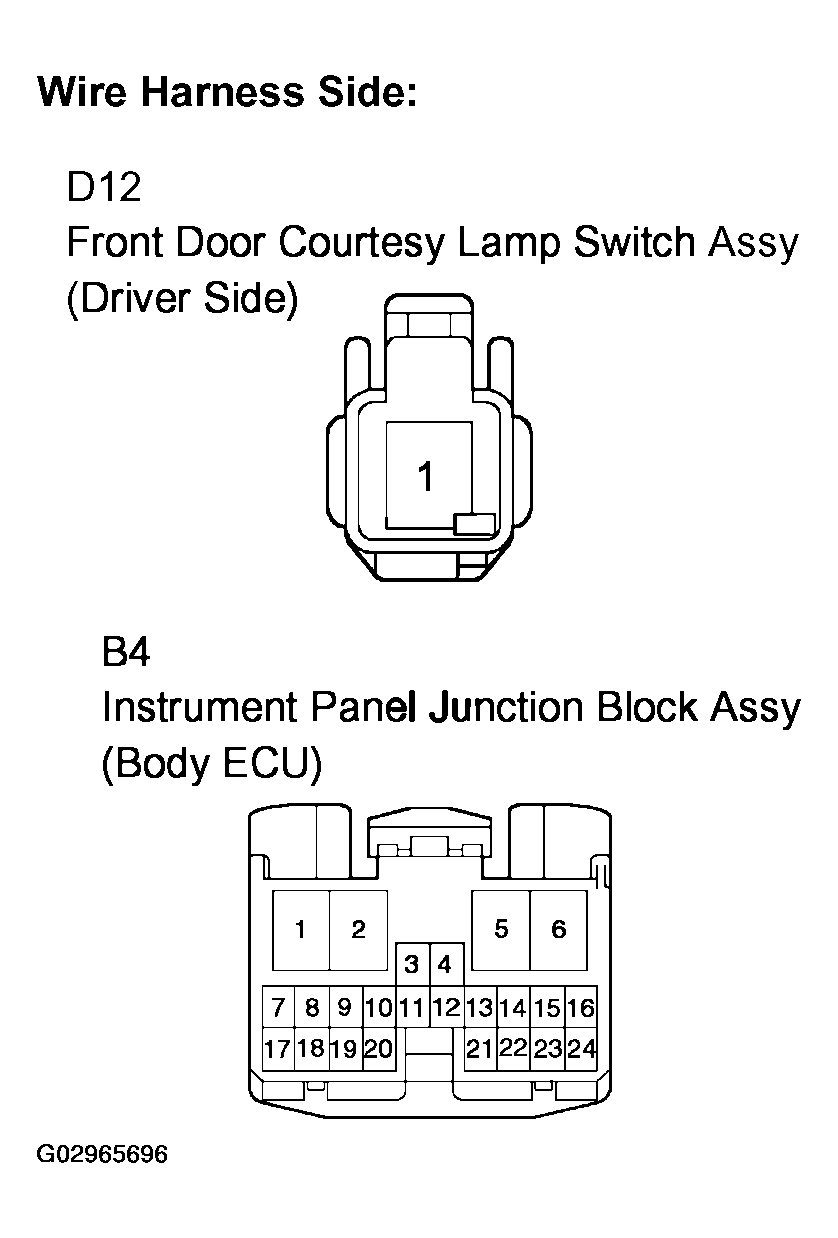

      Fig 9: Checking Wire Harness (front Door Courtesy Lamp Switch Assy (Driver Side) <=> Instrument Panel Junction Block Assy (Body ECU))
      G02965696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
