Inspection Procedure

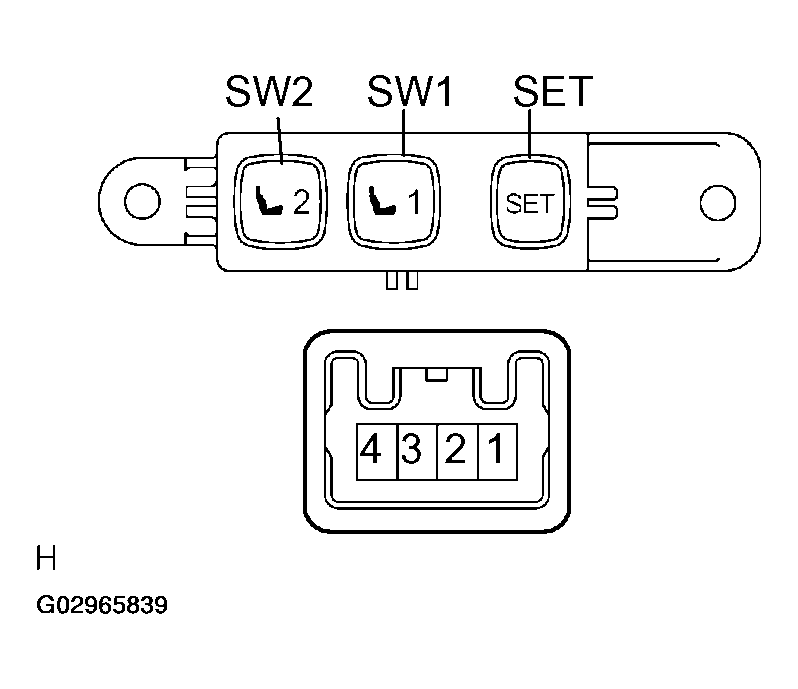

- INSPECT SEAT MEMORY SWITCH
- Disconnect the seat memory switch connector.
- Check the continuity of each terminal when each switch is operated.
Standard:
SEAT MEMORY SWITCHTerminal No. Switch Position Specified Condition 1 <==> 2 SET switch ON Continuity 2 <==> 3 SW1 switch ON Continuity 2 <==> 4 SW2 switch ON Continuity
- NG: REPLACE SEAT MEMORY SWITCH
- OK: Go to next step.
- CHECK WIRE HARNESS (SEAT MEMORY SWITCH <==> INSTRUMENT PANEL JUNCTION BLOCK ASSY (BODY ECU))

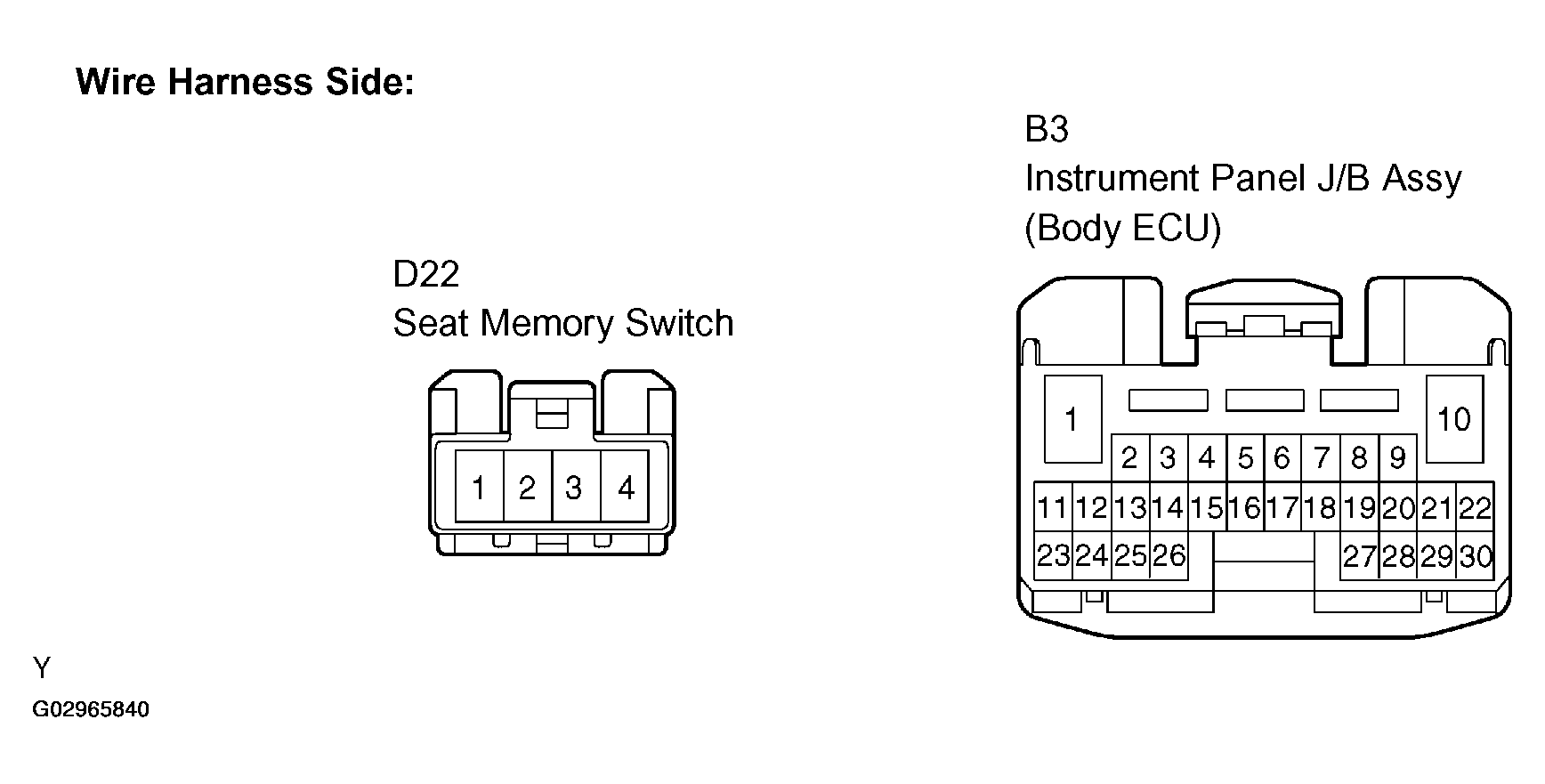

- Disconnect the D22 switch and B3 ECU connectors.
- Check the continuity between the wire harness side connectors.
Standard:
SEAT MEMORY SWITCH <==> INSTRUMENT PANEL JUNCTION BLOCK ASSY (BODY ECU)Symbols (Terminal No.) Condition Specified Condition M1 (D22-3) <==> M1 (B3-20) Constant Continuity M2 (D22-4) <==> M2 (B3-2) Constant Continuity MRY (D22-2) <==> MM (B3-8) Constant Continuity E (D22-1) <==> Body ground Constant Continuity
- NG: repair OR replace harness and connector
- OK: CHECK AND REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY (BODY ECU) (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
