Conditioning For Sensor Testing

HINT:

Perform the operation with the engine speeds and time durations described below prior to checking the waveforms of the A/F and HO2 sensors. This is in order to activate the sensors sufficiently to obtain the appropriate inspection results.

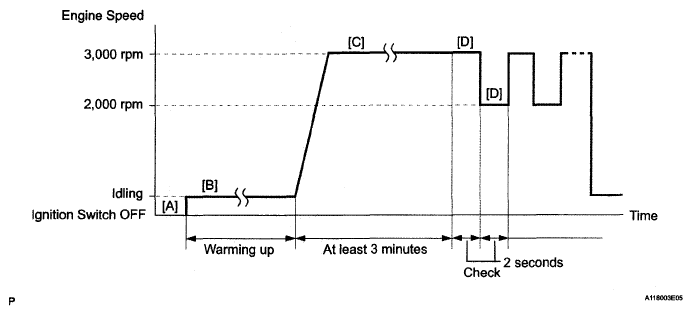

Fig 1: Identifying Drive Pattern Of Vehicle Speed & Time Durations

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Connect the intelligent tester to the DLC3 with CAN VIM [A].
Start the engine and warm it up with all the accessories switched OFF, until the engine coolant temperature stabilizes [B].
Run the engine at an engine speed of between 2,500 rpm and 3,000 rpm for at least 3 minutes [C].
While running the engine at 3,000 rpm for 2 seconds and 2,000 rpm for 2 seconds, check the waveforms of the A/F and HO2 sensors using the tester [D].

HINT:

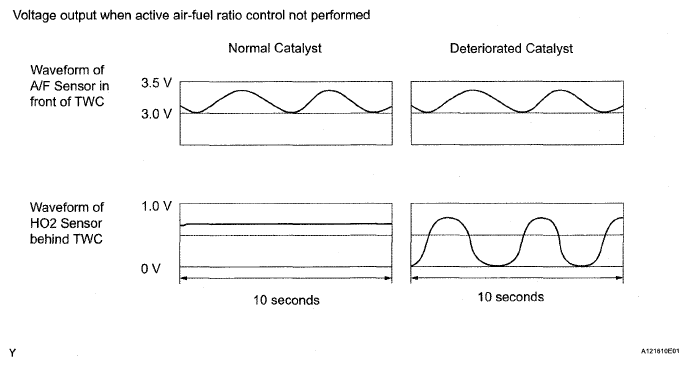

Fig 2: Identifying A/F Sensor & HO2 Sensor (TWC) Waveform

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

If either of voltage outputs of the Air Fuel Ratio (A/F) or Heated Oxygen (HO2) sensors does not fluctuate, or either of the sensors makes a noise, the sensor may be malfunctioning.
If the voltage outputs of both the sensors remain lean or rich, the air fuel ratio may be extremely lean or rich. In such cases, perform the following A/F CONTROL using the intelligent tester.
If the Three-Way Catalytic Converter (TWC) has deteriorated, the HO2 sensor (located behind the TWC) voltage output fluctuates up and down frequently, even under normal driving conditions (active air fuel ratio control is not performed).

A/F CONTROL
HINT:

Intelligent tester only:

Malfunctioning areas can be identified by performing the A/F CONTROL function provided in the ACTIVE TEST. The A/F CONTROL function can help to determine whether the Air Fuel Ratio (A/F) sensor, Heated Oxygen (HO2) sensor and other potential trouble areas are malfunctioning.

The following instructions describe how to conduct the A/F CONTROL operation using the intelligent tester.
1. Connect the intelligent tester to the DLC3 with CAN VIM.
2. Start the engine and turn the tester ON.
3. Warm up the engine at an engine speed of 2,500 rpm for approximately 90 seconds.
4. On the tester, enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / A/F CONTROL.
5. Perform the A/F CONTROL operation with the engine in an idling condition (press the RIGHT or LEFT button to change the fuel injection volume).
6. Monitor the voltage outputs of the A/F and HO2 sensors (AFS B1S1 and O2S B1S2 or AFS B2S1 and O2S B2S2) displayed on the tester.

HINT:

The A/F CONTROL operation lowers the fuel injection volume by 12.5% or increases the injection volume by 25%.
Each sensor reacts in accordance with increases in the fuel injection volume.

Standard voltage:

STANDARD VOLTAGE TABLE

Tester Display (Sensor)	Injection Volume	Status	Voltage
AFS B1S1 or AFS B2S1 (A/F)	+25%	Rich	Less than 3.0
AFS B1S1 or AFS B2S1 (A/F)	-12.5%	Lean	More than 3.35
O2S B1S2 or O2S B2S2 (HO2)	+25%	Rich	More than 0.55
O2S B1S2 or O2S B2S2 (HO2)	-12.5%	Lean	Less than 0.4

NOTE: The Air Fuel Ratio (A/F) sensor has an output delay of a few seconds and the Heated Oxygen (HO2) sensor has a maximum output delay of approximately 20 seconds.

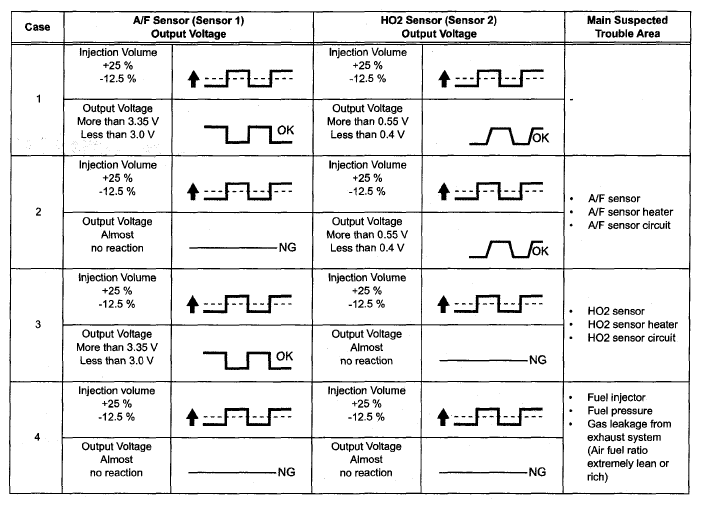

Fig 3: Identifying A/F Sensor Output Voltage & HO2 Sensor Output Voltage Table

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Following the A/F CONTROL procedure enables technicians to check and graph the output voltages of both the A/F and HO2 sensors.
To display the graph, enter the following menus on the tester: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST/A/F CONTROL/ USER DATA/AFS B1S1 and O2S B1S2 or AFS B2S1 and O2S B2S2. Then press the YES button and ENTER button, followed by the F4 button.
