Height Control Sensor: Installation

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

INSTALL HEIGHT CONTROL SENSOR SUBASSEMBLY REAR
1. Install the height control sensor with the 2 bolts.
  Torque: 13.5 N*m (138 kgf*cm, 10 ft.*lbf)

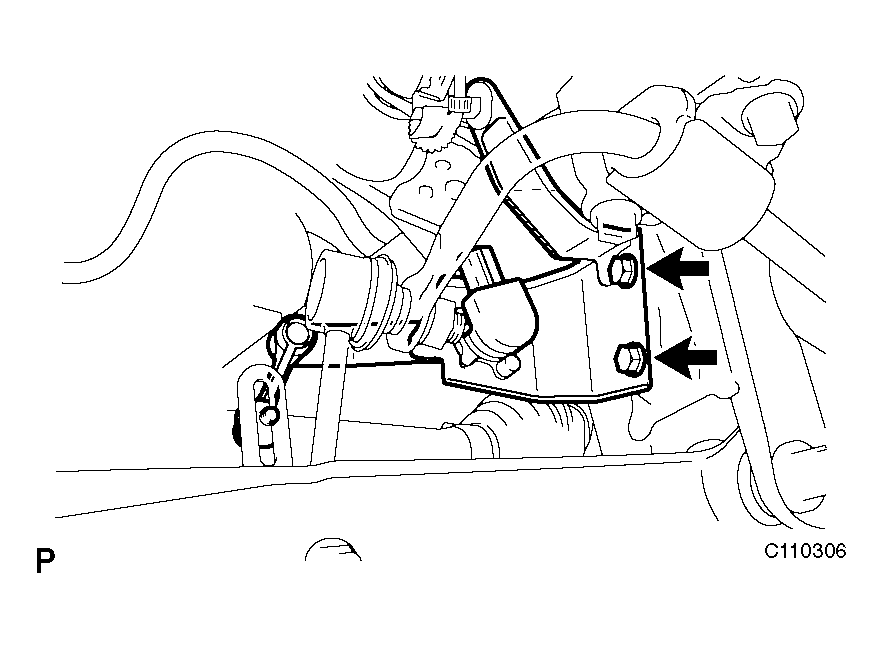

  Fig 1: Identifying Height Control Sensor With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align matchmarks on the height control sensor and bracket.
3. Install the nut.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
4. Connect the connector.
5. Install the rear tire.

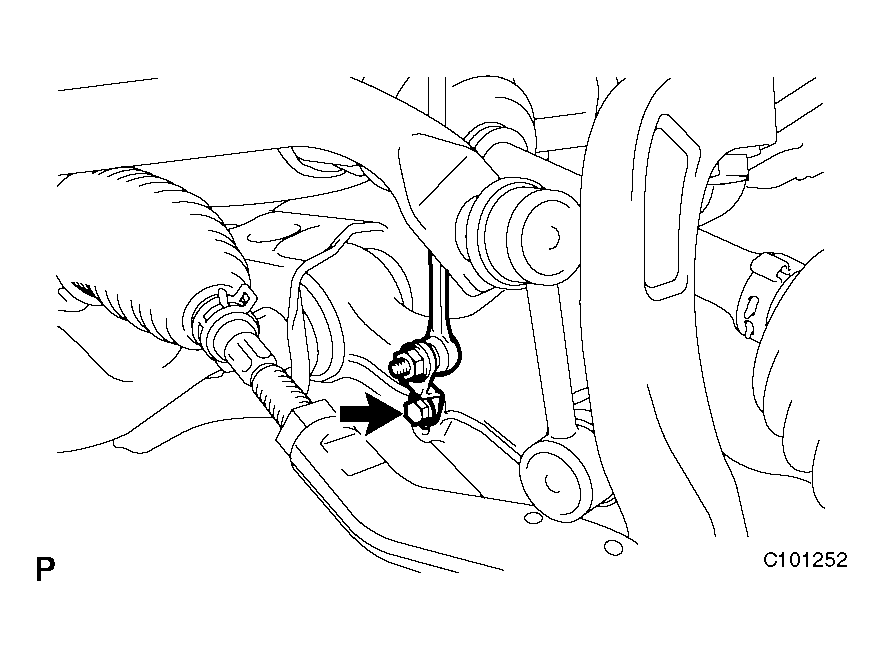

  Fig 2: Identifying Rear Tire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEIGHT CONTROL SENSOR SUBASSEMBLY FRONT
1. Install the height control sensor with the 2 bolts.
  Torque: 13.5 N*m (138 kgf*cm, 10 ft.*lbf)

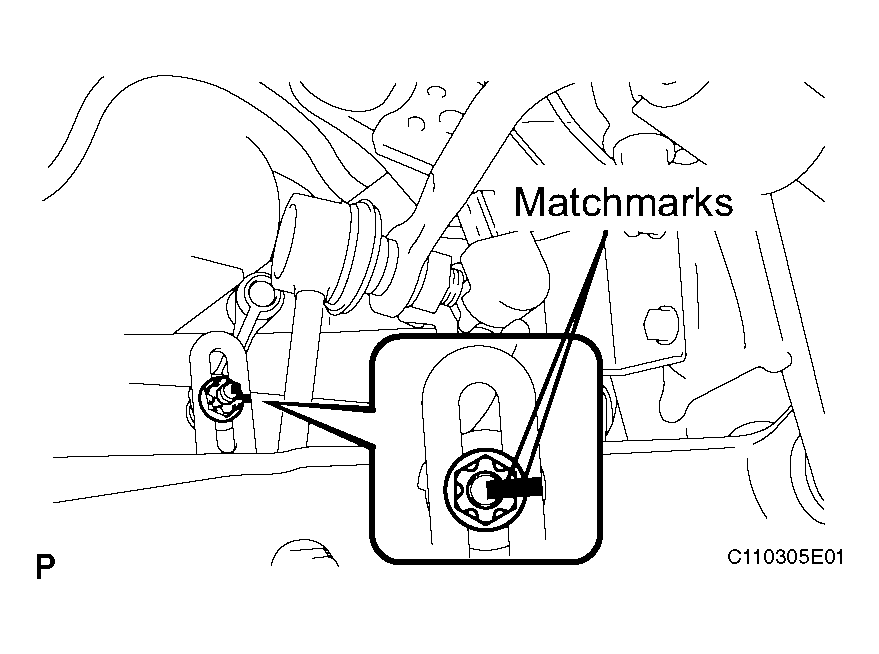

  Fig 3: Identifying Height Control Sensor With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. 4WD:
  Install the height control sensor link with the bolt to the lower arm.

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

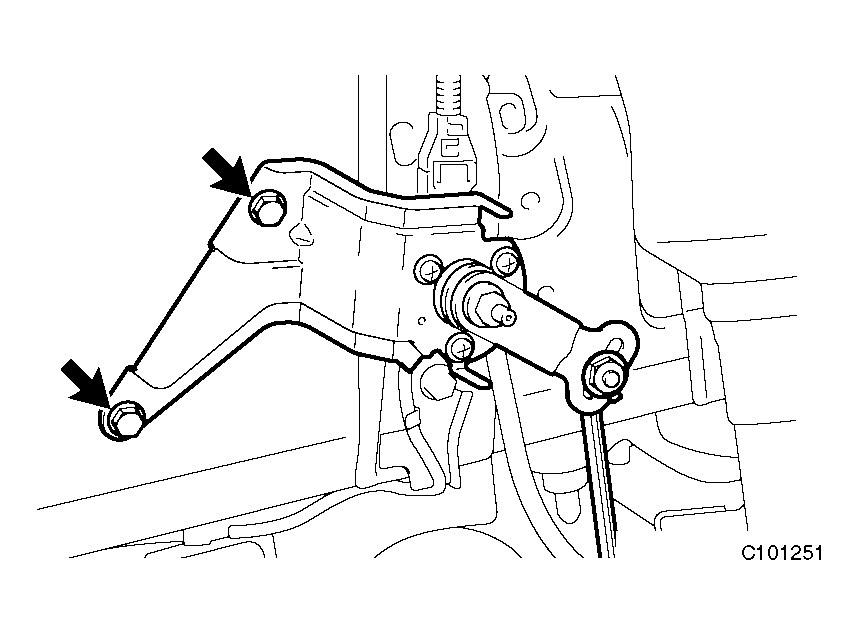

  Fig 4: Identifying Height Control Sensor Link With Bolt To Lower Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. 2WD:
  Install the height control sensor link with the nut to the lower arm.

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
4. Install the front tire.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
ADJUST HEADLIGHT AIMING (See ADJUSTMENT )

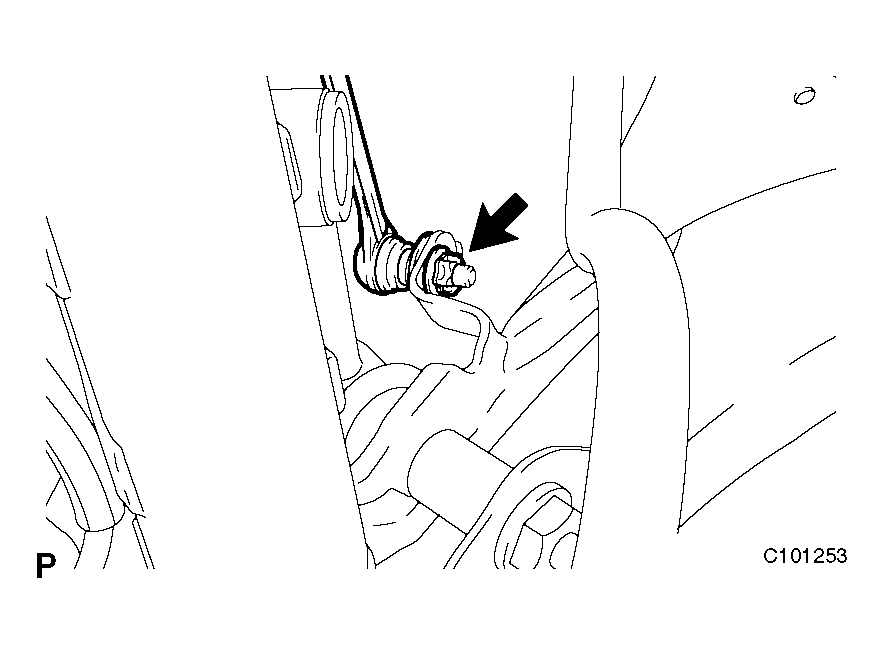

Fig 5: Identifying Height Control Sensor Link With Nut To Lower Arm (2WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
