Customize Parameters
WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
The followings are the possible items to be customized.
NOTE:
- After confirming whether the items of the customer's request is applicable or not for the customized items, perform the customize operation.
- Be sure to record the current value before customizing.
- In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)
ILLUMINATED ENTRY
ILLUMINATED ENTRY - CUSTOMIZE PARAMETERS
| Display | Default | Contents | Setting |
|---|---|---|---|
| I/L ON / ACC OFF | ON | Function to light the interior light when the engine switch is operated from on (IG) to off | ON / OFF |
| LIGHTING TIME | 15s | To change the lighting time after closing the door. (It will quickly fade out in case of turning the engine switch on (IG)) | 7.5s / 15s / 30s |
| LIGHT CONTROL | ON | Function to light up the step light and door inside handle light when the engine switch is on (IG) and the shift position is not P. | ON / OFF |
| I/L ON / UNLOCK | ON | Function to light, the interior light etc. when the door is unlocked with a transmitter, door key or door lock control switch. | ON / OFF |
| SEAT LIGHT CTRL | AVAIL | Function to light up the seat light when unlocking with the door key cylinder. | NOT AVL / AVAIL |
| STEERING LIGHT | AVAIL | Function to light up the steering light when unlocking with the door key cylinder. | NOT AVL / AVAIL |
| SHIFT LIGHT CTL | AVAIL | Function to light up the shift light when unlocking with the door key cylinder. | NOT AVL / AVAIL |
HINT:
Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.
LIGHT CONTROL
LIGHT CONTROL - CUSTOMIZE PARAMETERS
| Display | Default | Contents | Setting |
|---|---|---|---|
| LIGHT OFF DELAY | 30s | Function to keep on lighting the headlight for a certain period of time after closing all the doors with the engine switch turned off from on (IG) to off under the condition that the light control switch is at HEAD or AUTO with the headlight ON. | OFF / 30s / 60s / 90s |
| SENSITIVITY | NORMAL | To adjust the sensitivity of the lighting illumination. *1 | LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2 |

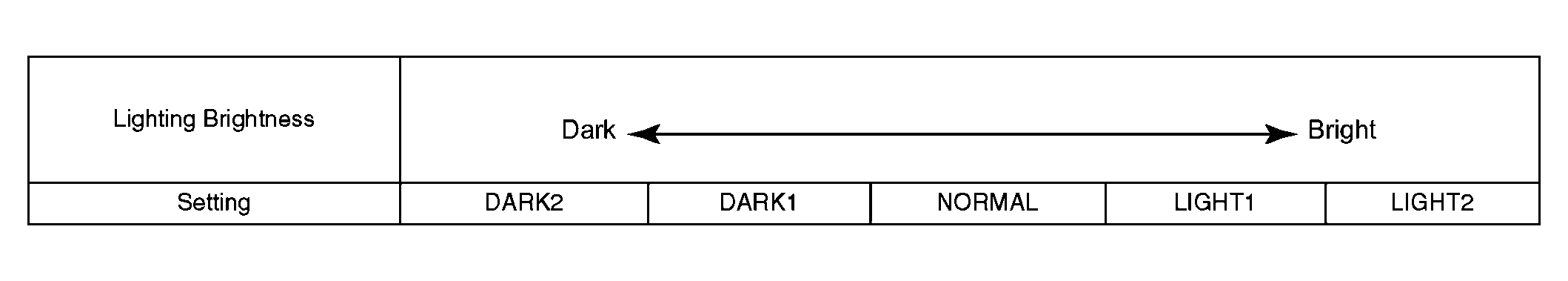

| DISP EX ON SEN | NORMAL | Changes the brightness when lowering lights such as the combination meter indicator light, A/C indicator light, and clock lamp. Refer to the illustration. Figure | LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2 |
| DISP EX OFF SEN | NORMAL | Changes the brightness when lowering lights such as the combination meter indicator light, A/C indicator light, and clock lamp. Refer to the illustration.*3 | LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2 |
| D/FOOT LIGHT T | 15s | Function to set how long the foot light stays on (driver's side). | OFF / 7.5s / 15s / 30s |
| P/FOOT LIGHT T | 15s | Function to set how long the foot light stays on (passenger's side). | OFF / 7.5s / 15s / 30s |
| FOOT LIGHTS | ON | Function to light up foot light. | ON / OFF |
