DTC Check / Clear

HINT:

• Illustrations may differ from the actual vehicle depending on the device settings and options.
• Turn the engine switch on (ACC), and then check that the map is displayed before starting the diagnostic mode. Otherwise, some items cannot be checked.

1. There are 2 methods to start diagnostic mode.
2. Method 1
   1. Start the engine.
   2. While pressing and holding the "INFO" switch, turn the light control switch as follows: TAIL --> OFF --> TAIL --> OFF --> TAIL --> OFF.
   3. The diagnostic mode starts and the "System Check Mode" screen will be displayed. Service inspection starts automatically and the result will be displayed.

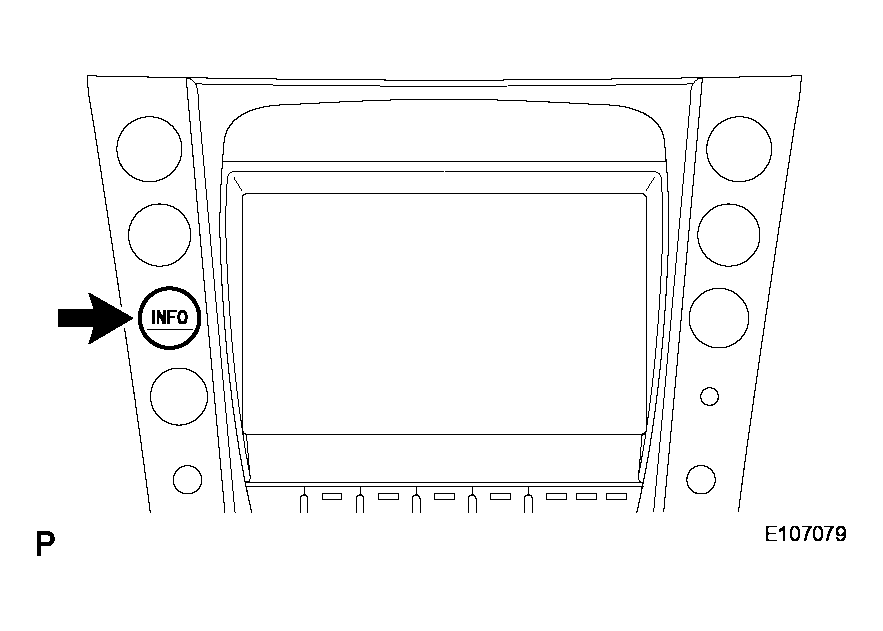

      Fig 1: Locating "INFO" Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Method 2
   1. Start the engine.
   2. Press the "DISP" switch.

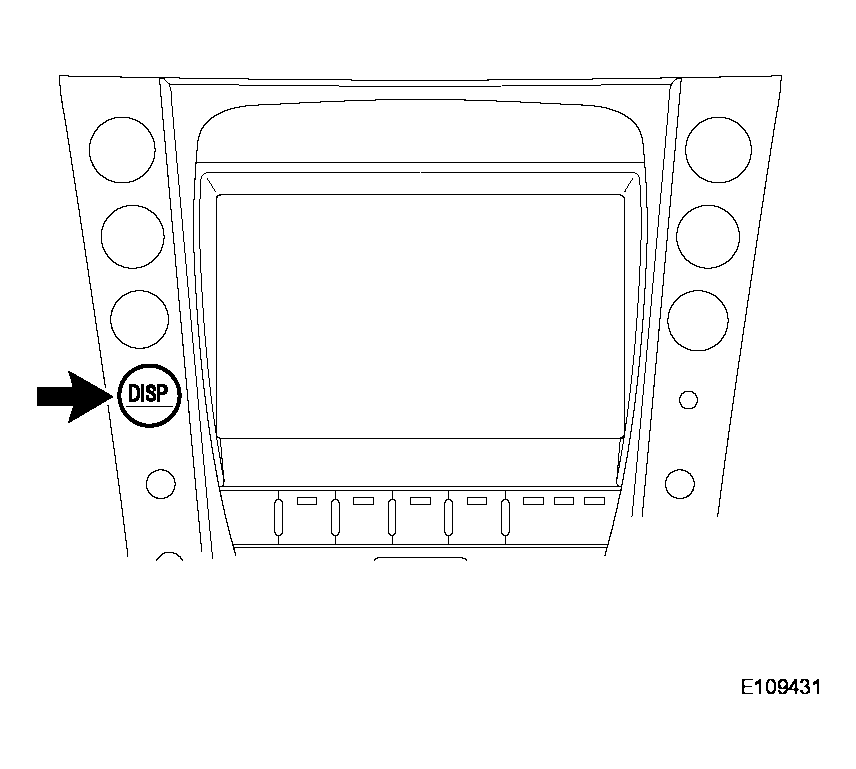

      Fig 2: Locating "DISP" Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Touch the corners of the screen in the following order: upper left --> lower left --> upper left --> lower left --> upper left --> lower left.
   4. The diagnostic mode starts and the "System Check Mode" screen will be displayed. Service inspection starts automatically and the result will be displayed.

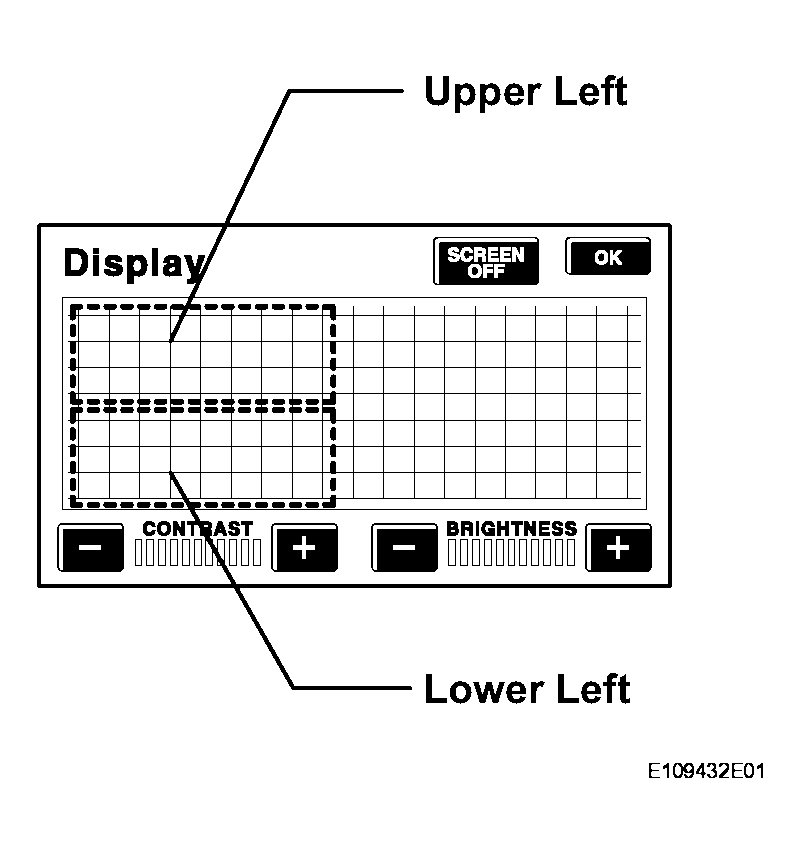

      Fig 3: Identifying Upper Left And Lower Left

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Diagnosis MENU
   1. The "Diagnostic MENU" screen will be displayed by pressing Menu on the "System Check Mode" screen.

1. There are 2 methods to end diagnostic mode.
   1. Turn the engine switch off.
   2. Press and hold the "DISP" switch for 3 seconds.

HINT:

Illustrations may differ from the actual vehicle depending on the device settings and options.

1. Start diagnostic mode.
   Fig 4: Identifying "System Check Mode" Display Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Read the system check result.
   1. If the check result is "EXCH", "CHEK" or "Old", touch the display to check its contents.

      HINT:

      • If all check results are "OK", go to the communication DTC check.
      • If a device name is not known, its physical address is displayed.
      • To return to the "System Check Mode" screen, press Service.

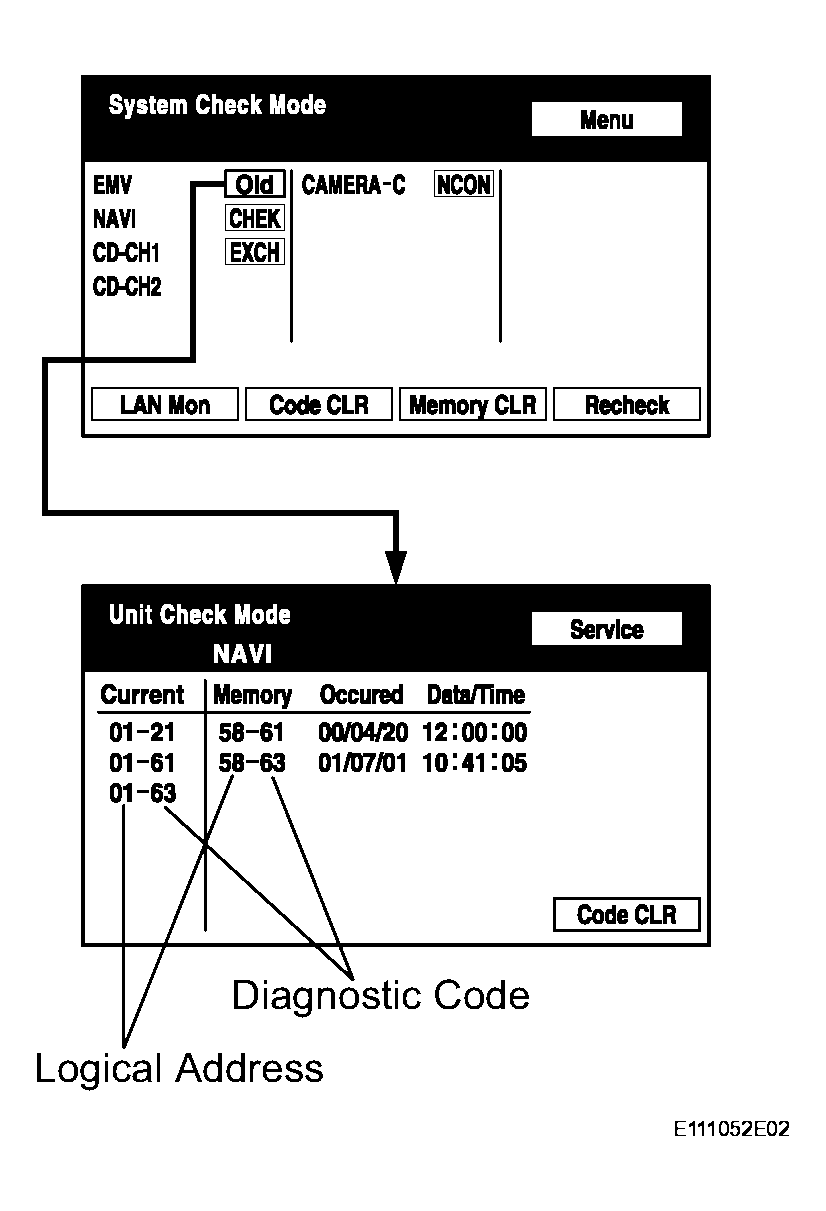

        Fig 5: Identifying "System Check Mode" Display Screen

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Read the communication diagnostic check result.
   1. Return to the "System Check Mode" screen, and press LAN Mon to enter the "LAN Monitor" screen.

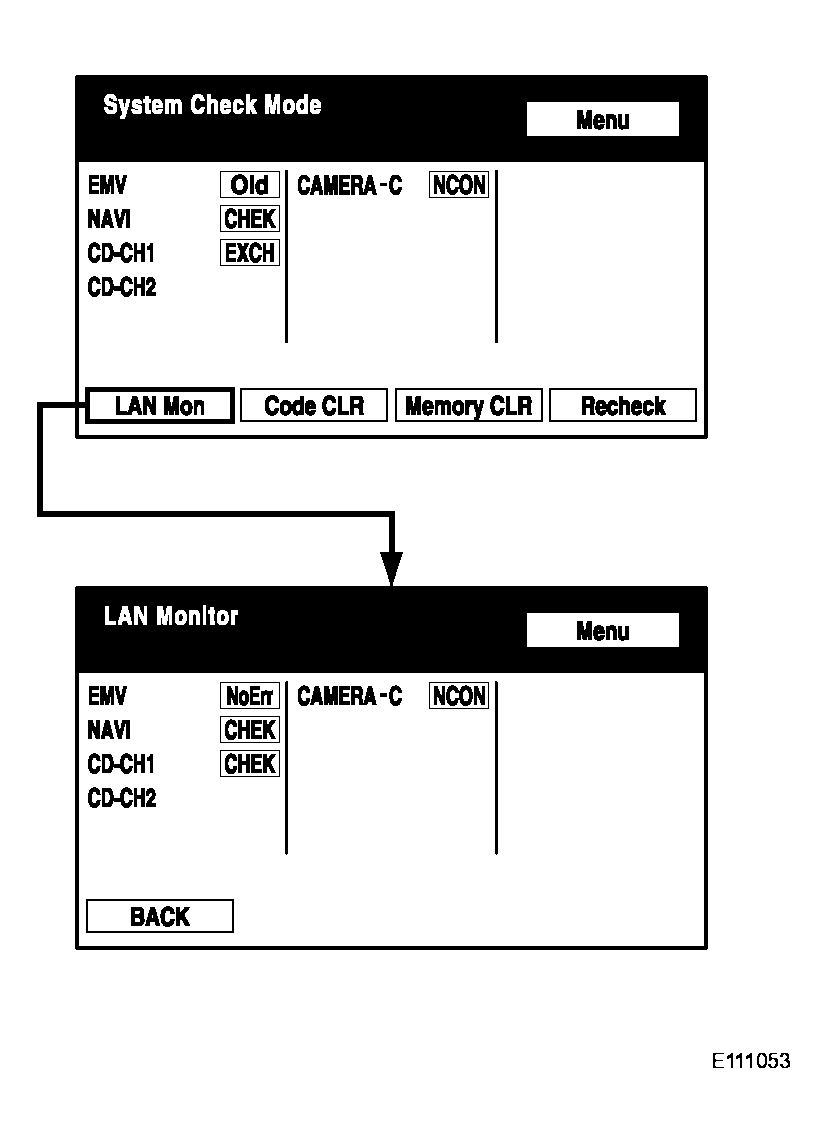

      Fig 6: Identifying "System Check Mode" Display Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

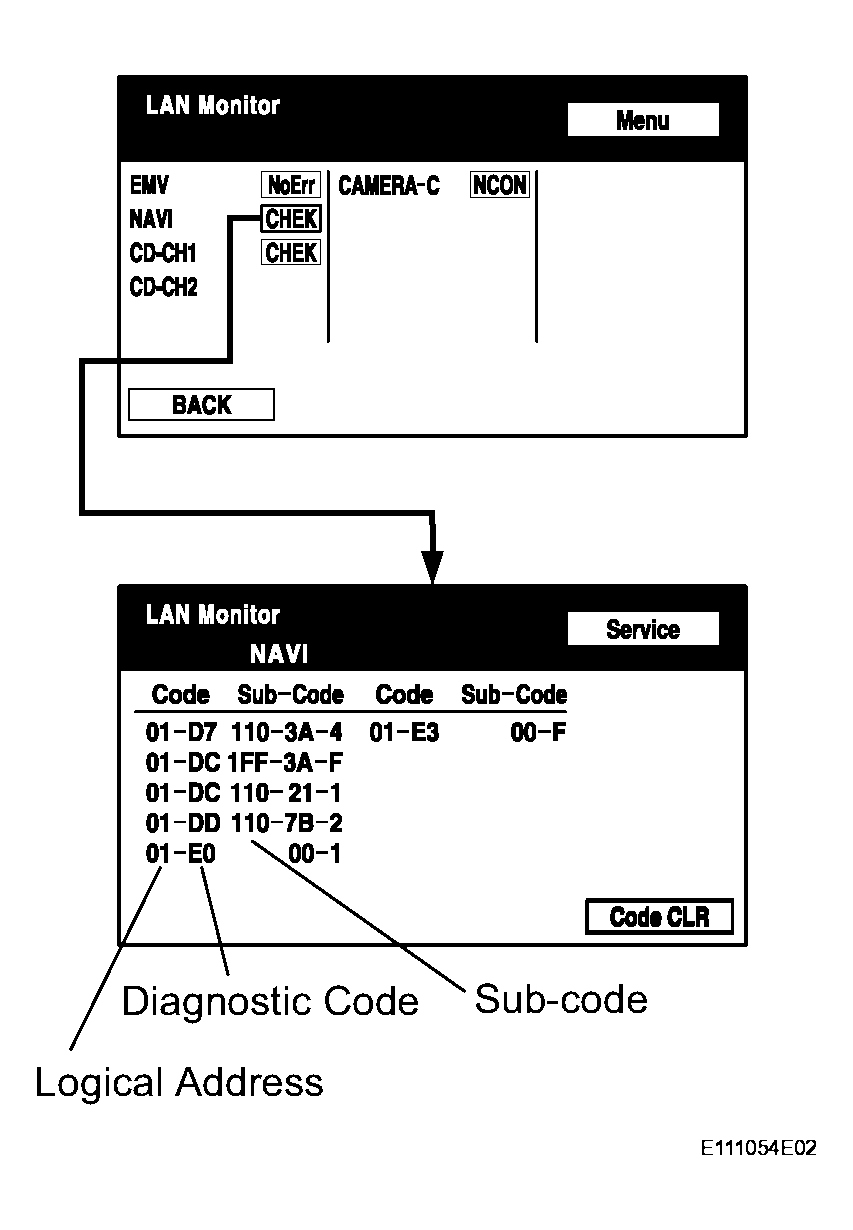

   2. If the check result is "CHEK" or "Old", touch the display to check its contents.

      HINT:

      • If all check results are "No Err", the system judges that no DTC exists.
      • The sub-code (relevant device) will be indicated by its physical address.
      • To return to the original "LAN Monitor" screen, press Service.

HINT:

Illustrations may differ from the actual vehicle depending on the device settings and options.

1. Start diagnostic mode.
   Fig 7: Identifying "LAN Monitor" Display Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Clear DTC.
   1. Press Code CLR for 3 seconds.
   2. DTC is cleared.

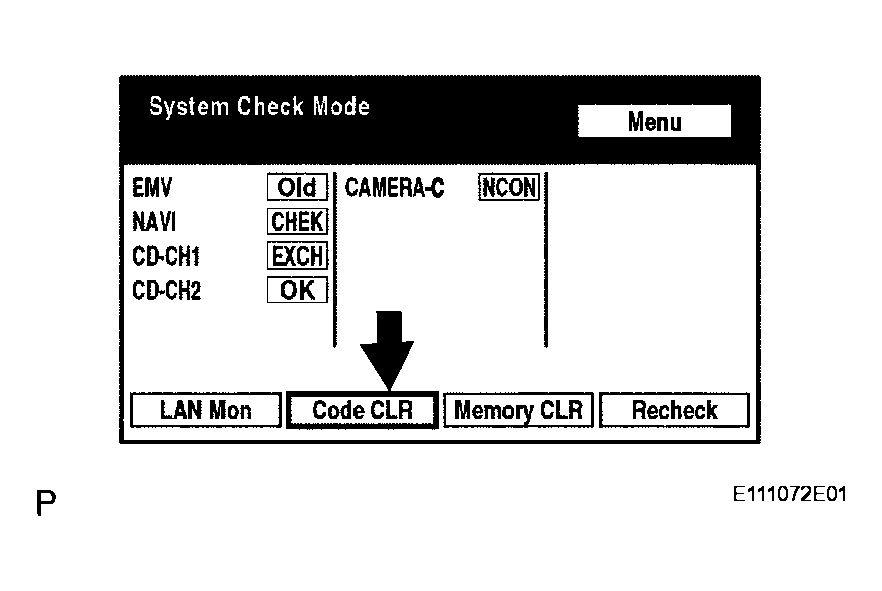

      Fig 8: Locating Code CLR Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Recheck DTC.
   1. Press Recheck.

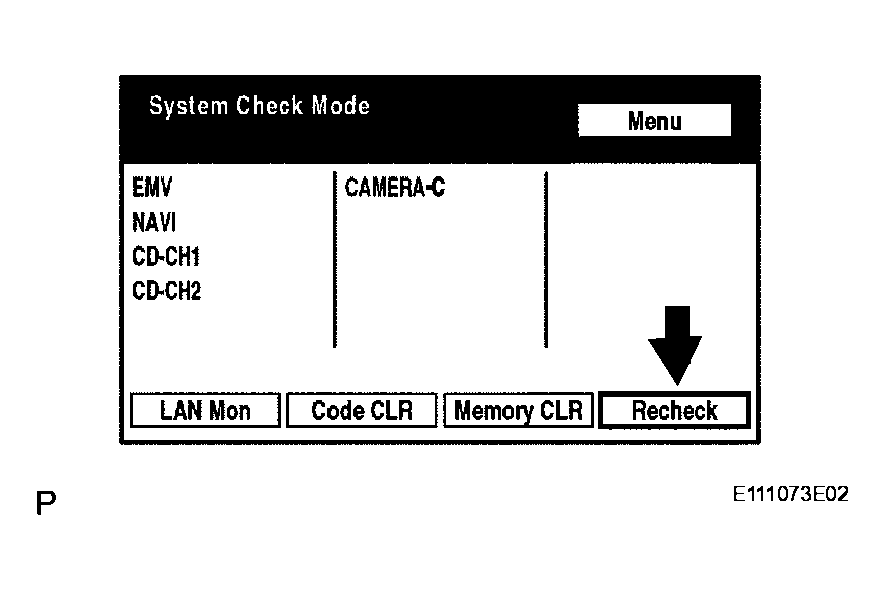

      Fig 9: Locating Press Recheck Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Confirm that all diagnostic codes are "OK" when the check results are displayed. If a code other than "OK" is displayed, perform troubleshooting again.

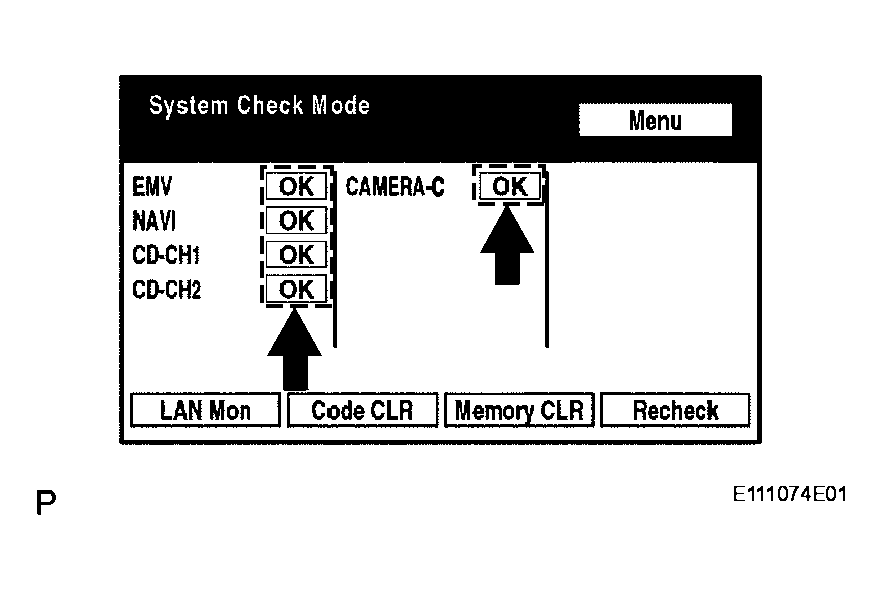

      Fig 10: Identifying "OK" Display Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Press LAN Mon to change to the "LAN Monitor" screen.

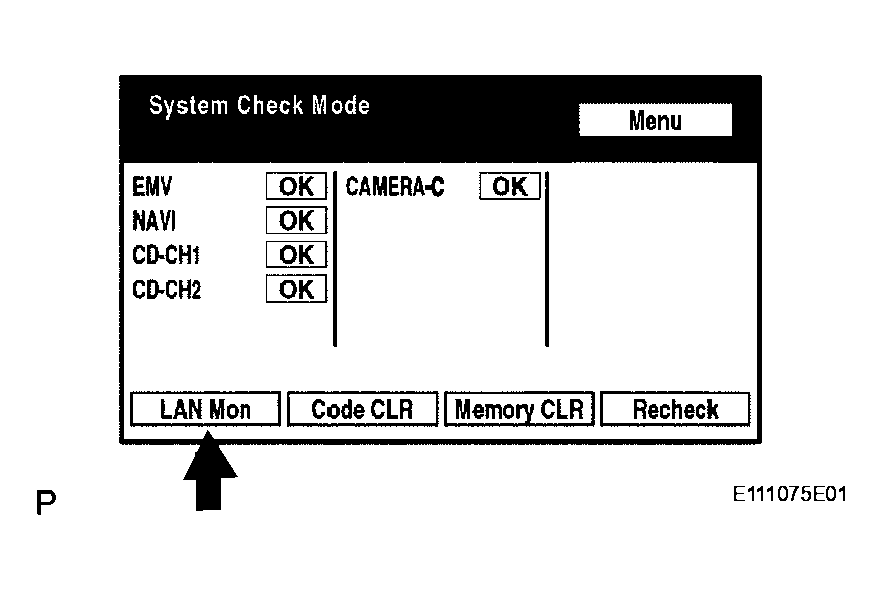

      Fig 11: Locating LAN Mon Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Confirm that all diagnostic codes are "No Err". If a code other than "No Err" is displayed, perform troubleshooting again.

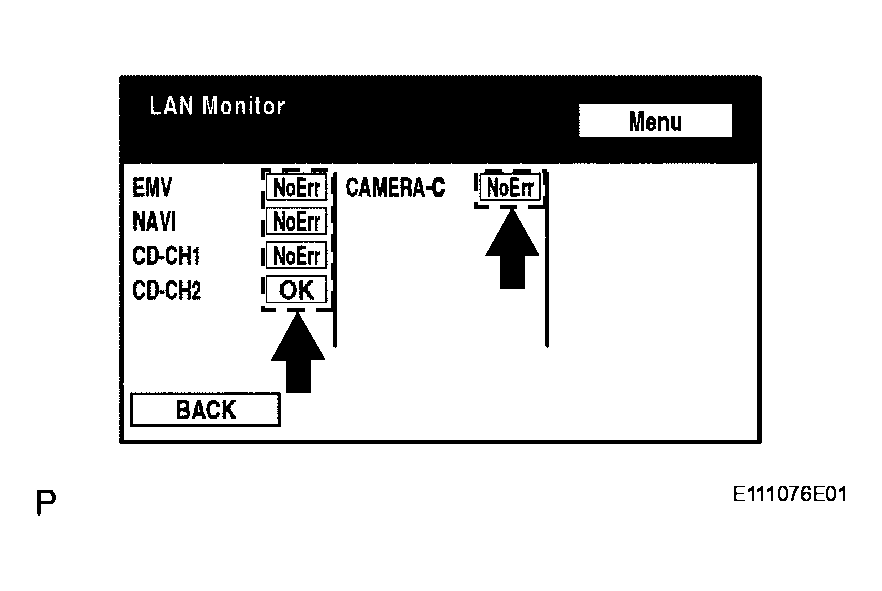

      Fig 12: Identifying "LAN Monitor" Display Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
