Memory Positioning Switch: Service and Repair

REMOVAL

1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
3. REMOVE COURTESY LIGHT ASSEMBLY
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
5. REMOVE FRONT INNER DOOR GLASS WEATHERSTRIP

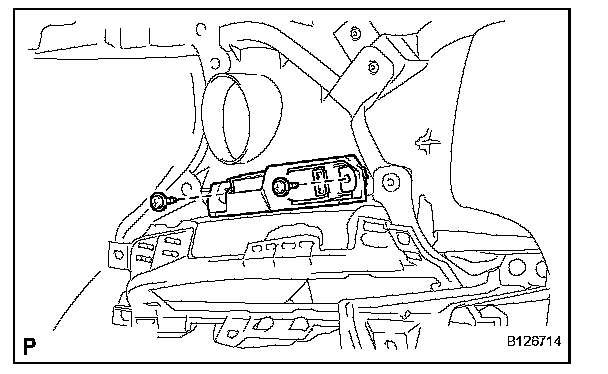

6. REMOVE SEAT MEMORY SWITCH
a. Disconnect the connector.
b. Remove the 2 screws and memory switch.

INSTALLATION

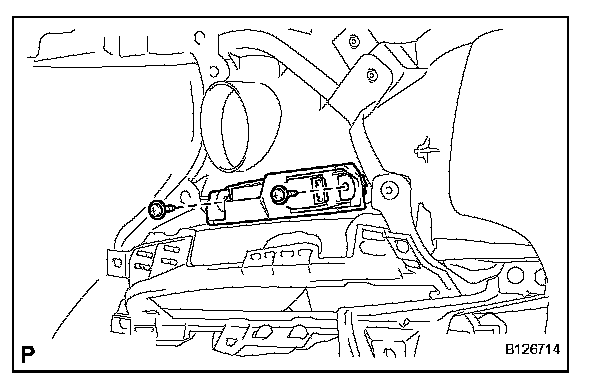

1. INSTALL SEAT MEMORY SWITCH
a. Install the switch with the 2 screws.
b. Connect the connector.

2. INSTALL FRONT INNER DOOR GLASS WEATHERSTRIP
3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
4. INSTALL COURTESY LIGHT ASSEMBLY
5. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
6. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
