Cruise Control Switch: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE NO. 2 LOWER STEERING WHEEL COVER
3. REMOVE NO. 3 LOWER STEERING WHEEL COVER
4. REMOVE STEERING PAD

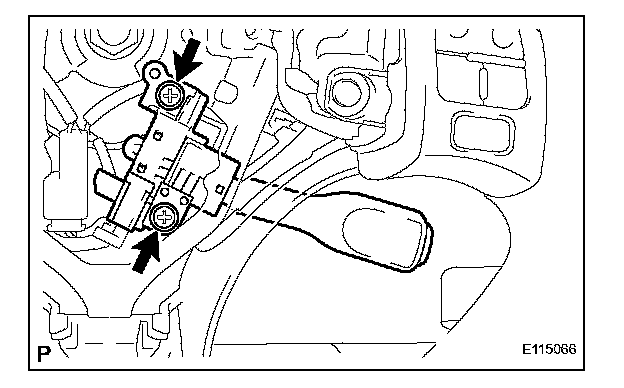

5. REMOVE CRUISE CONTROL MAIN SWITCH
a. Disconnect the connector.
b. Remove the 2 screws and the cruise control main switch.
INSTALLATION

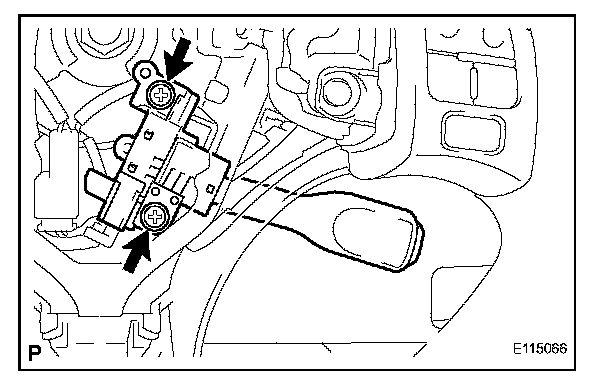

1. INSTALL CRUISE CONTROL MAIN SWITCH
a. Install the cruise control main switch with the 2 screws.
Torque: 1.7 to 3.0 N.m (17 to 31 kgf.cm, 15 to 27 in.lbf)
b. Connect the connector.
2. INSTALL STEERING PAD
3. INSTALL NO. 3 LOWER STEERING WHEEL COVER
4. INSTALL NO. 2 LOWER STEERING WHEEL COVER
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal.
7. INSPECT SRS WARNING LIGHT
