Open in CAN Main Bus Line

Open in CAN Main Bus Line

DESCRIPTION

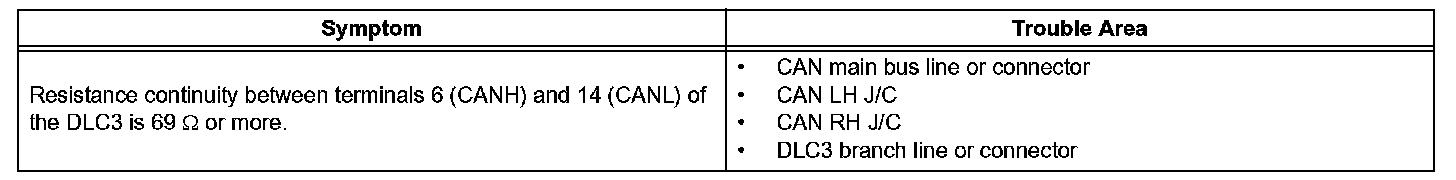

There may be an open circuit in the CAN main bus line and/or the DLC3 branch line when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 69 or more.

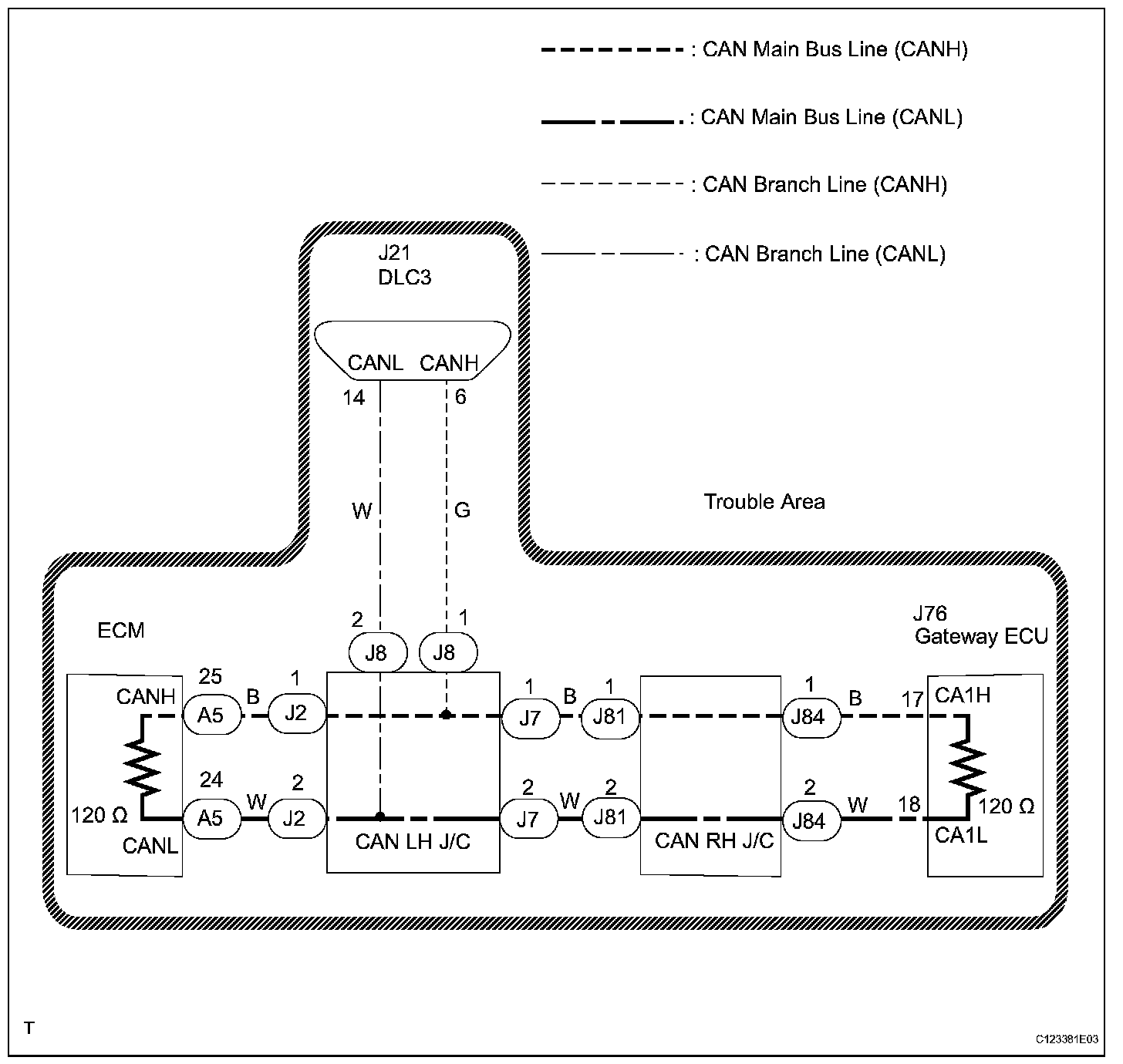

Wiring Diagram:

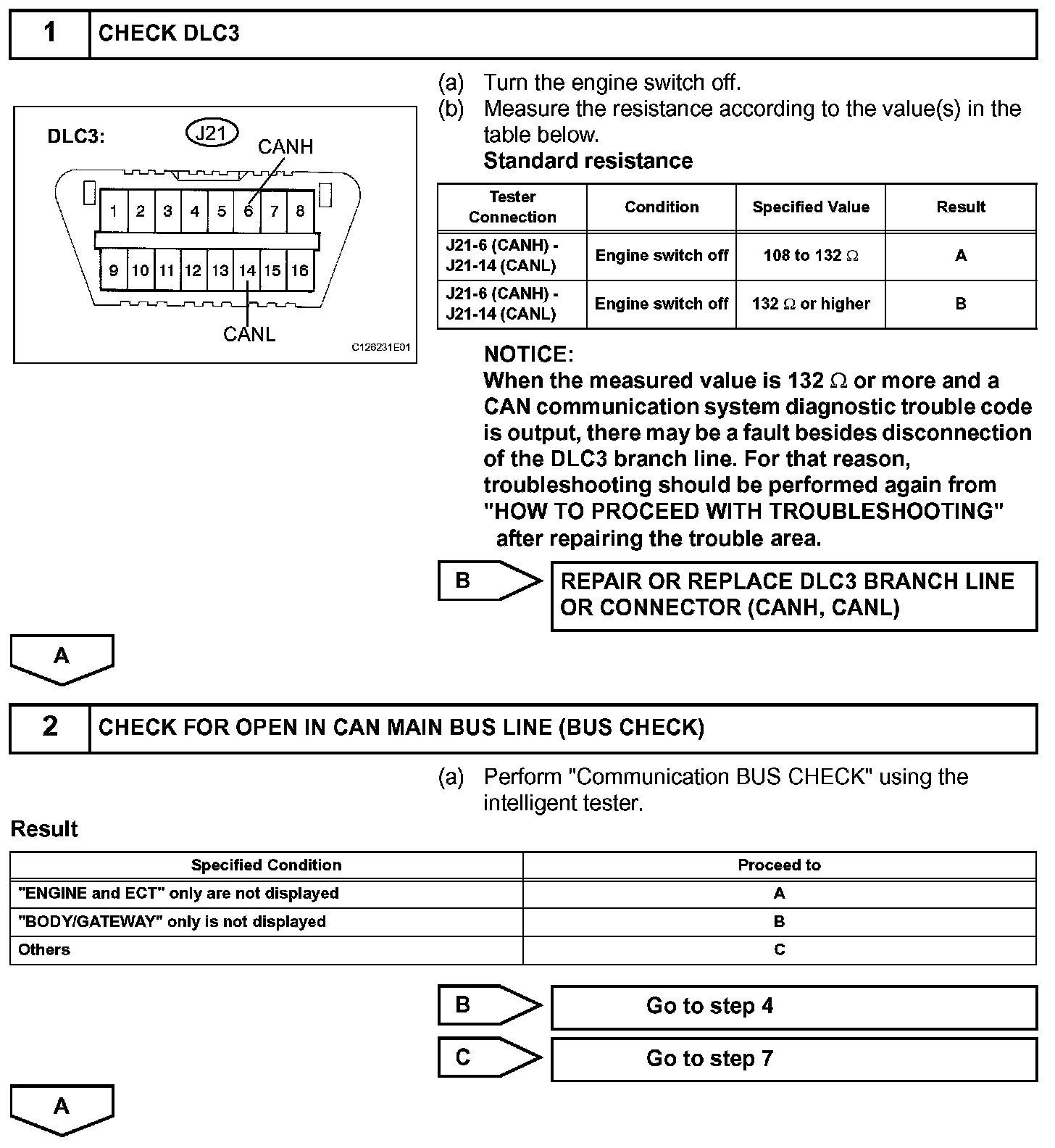

Step 1-2:

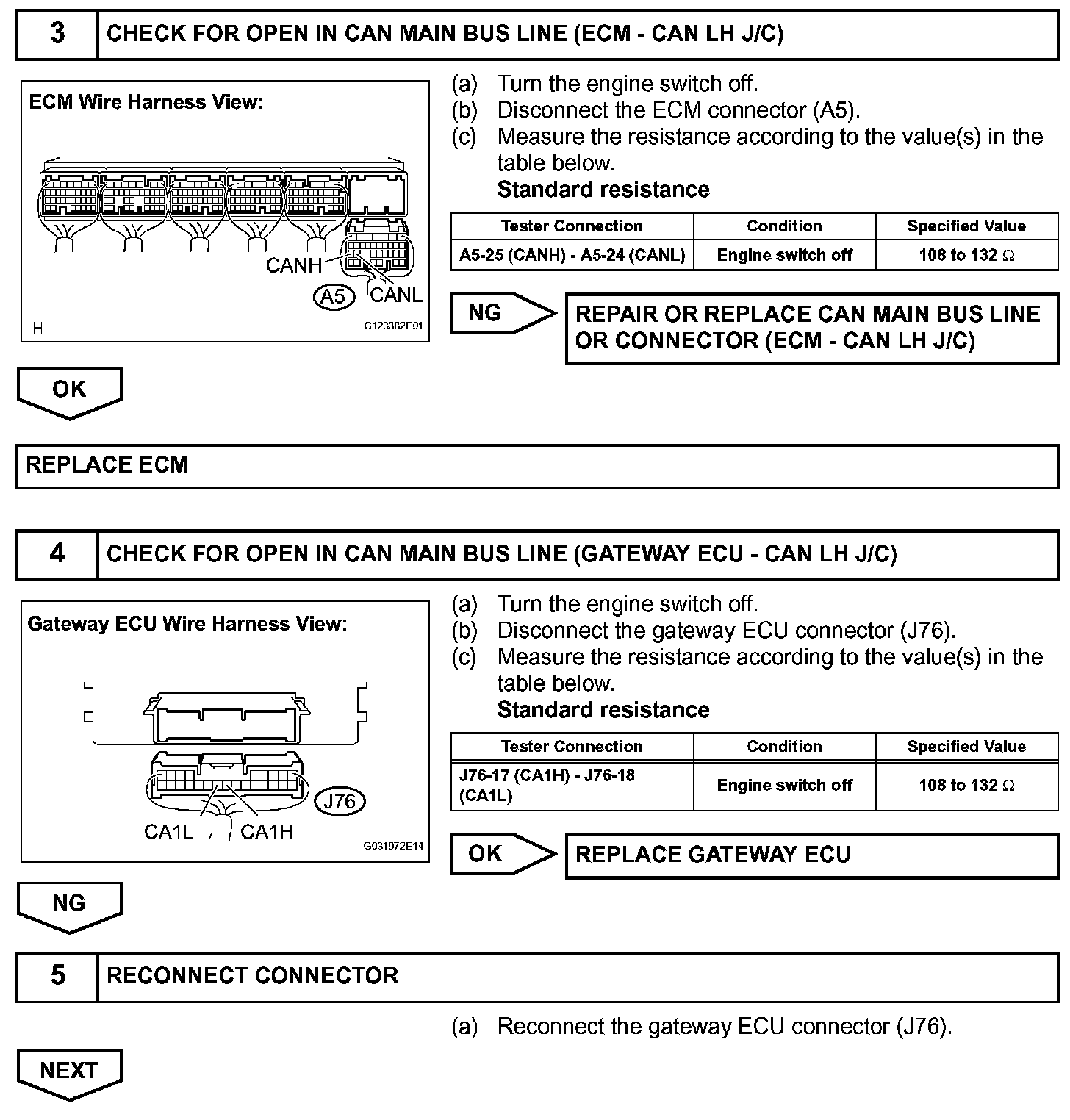

Step 3-5:

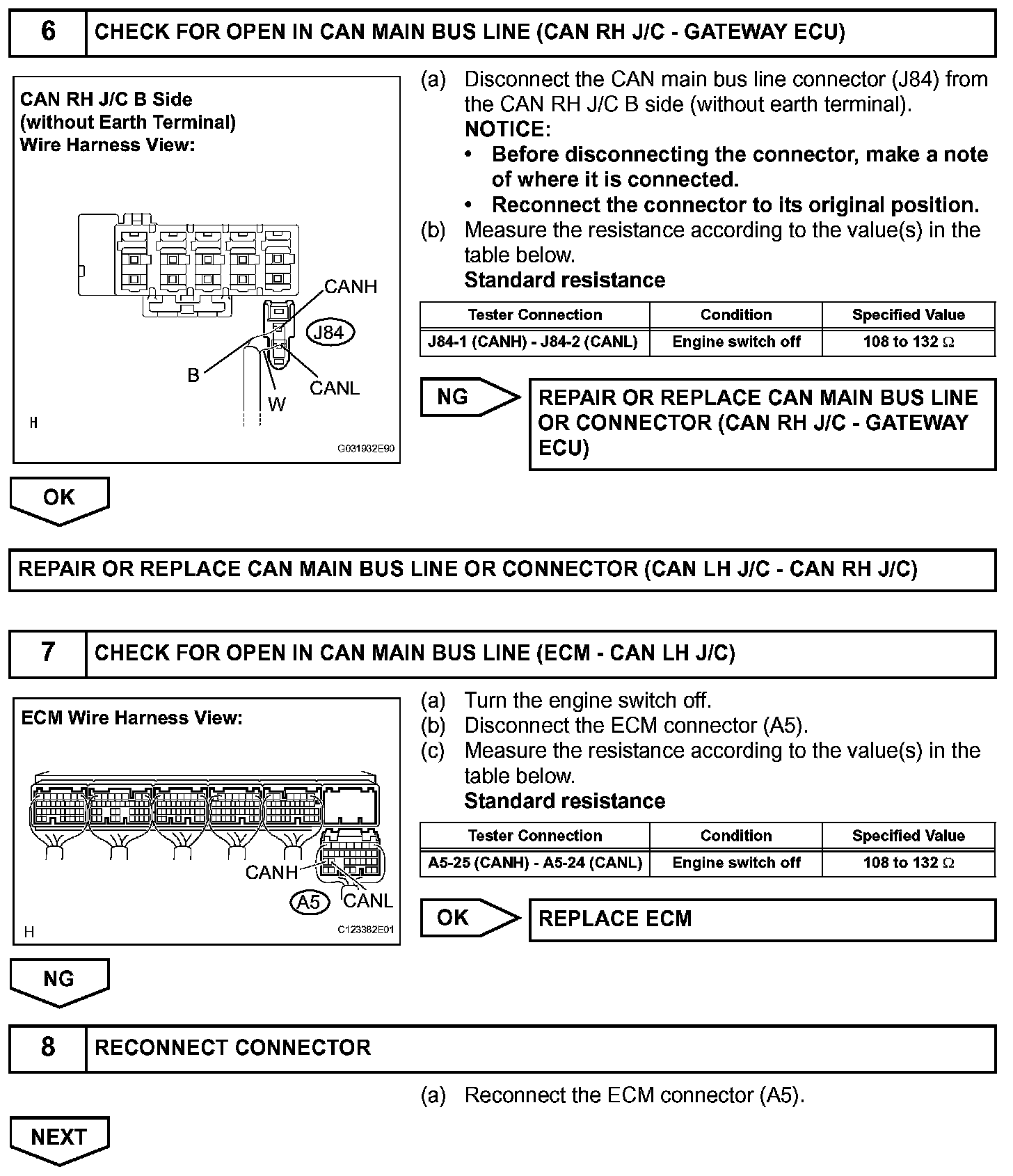

Step 6-8:

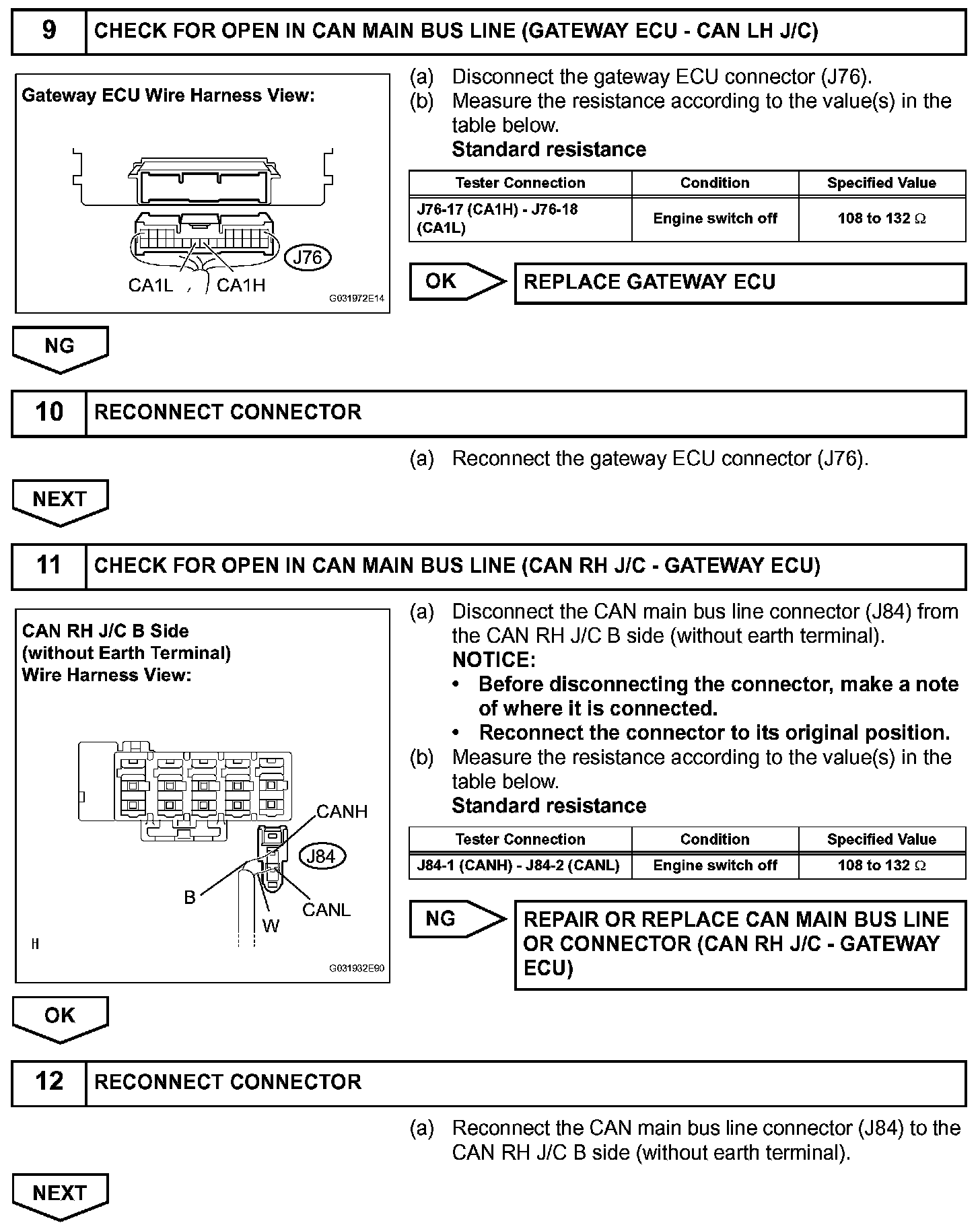

Step 9-12:

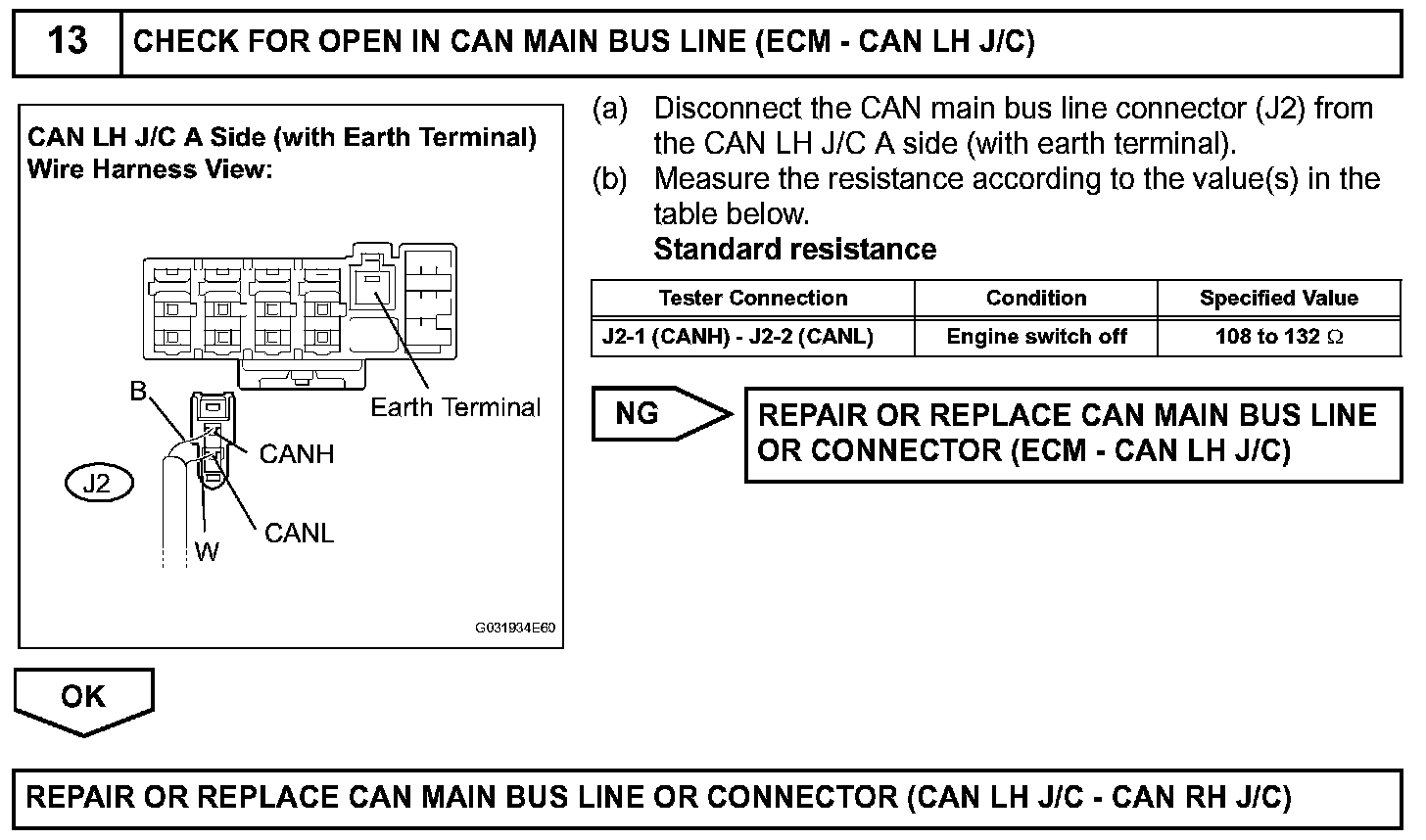

Step 13:

INSPECTION PROCEDURE
