Skid Control ECU Communication Stop Mode

Skid Control ECU Communication Stop Mode

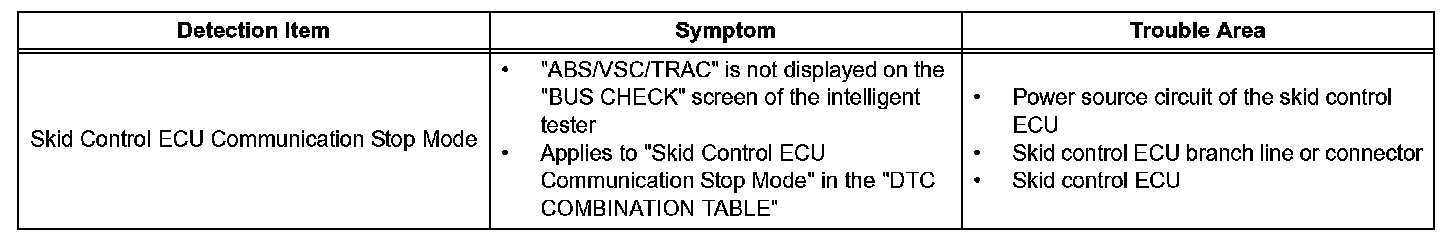

Detection Item:

DESCRIPTION

HINT: "ABS/VSC/TRAC" refers to the circuit that includes the skid control ECU.

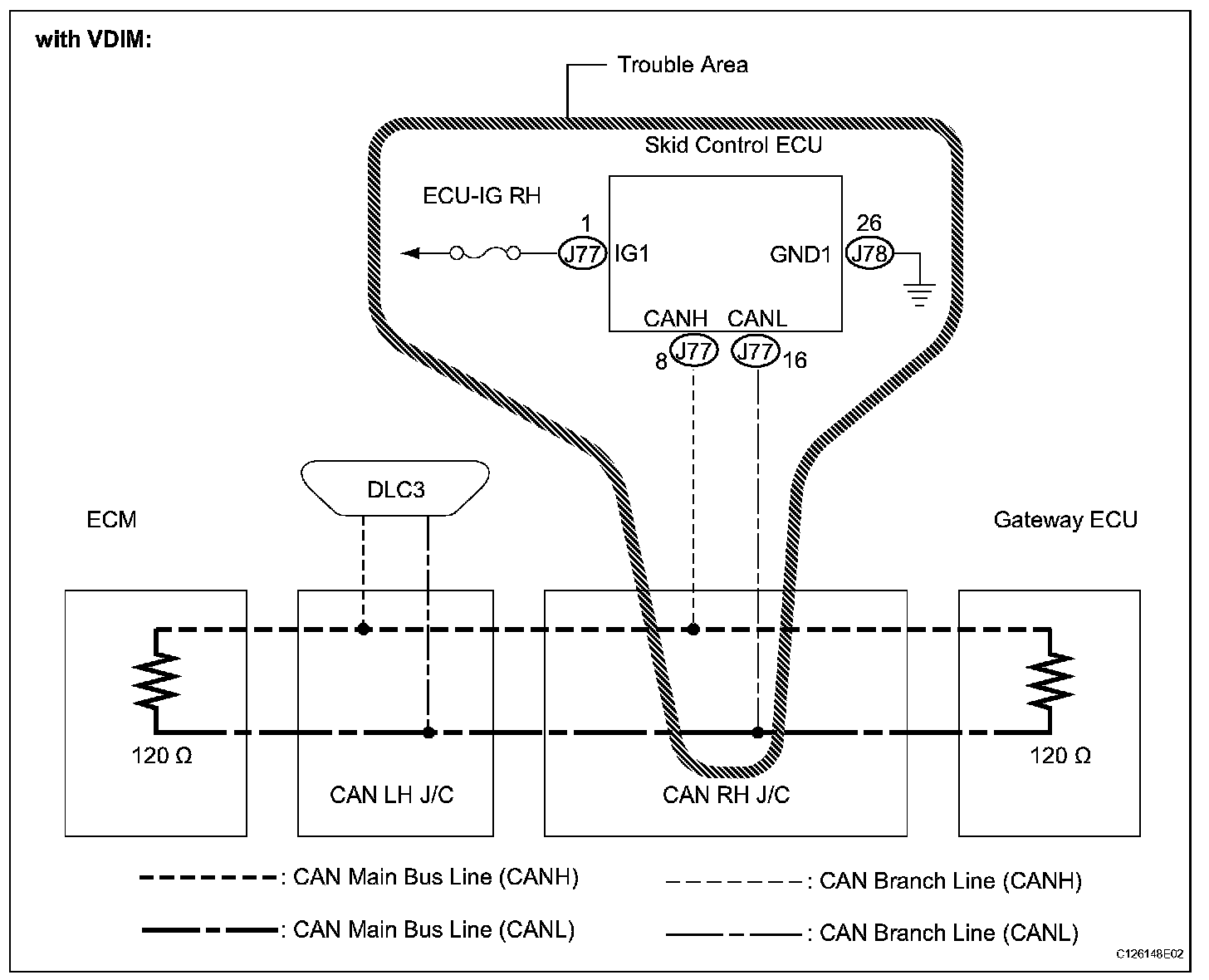

Wiring Diagram (Part 1):

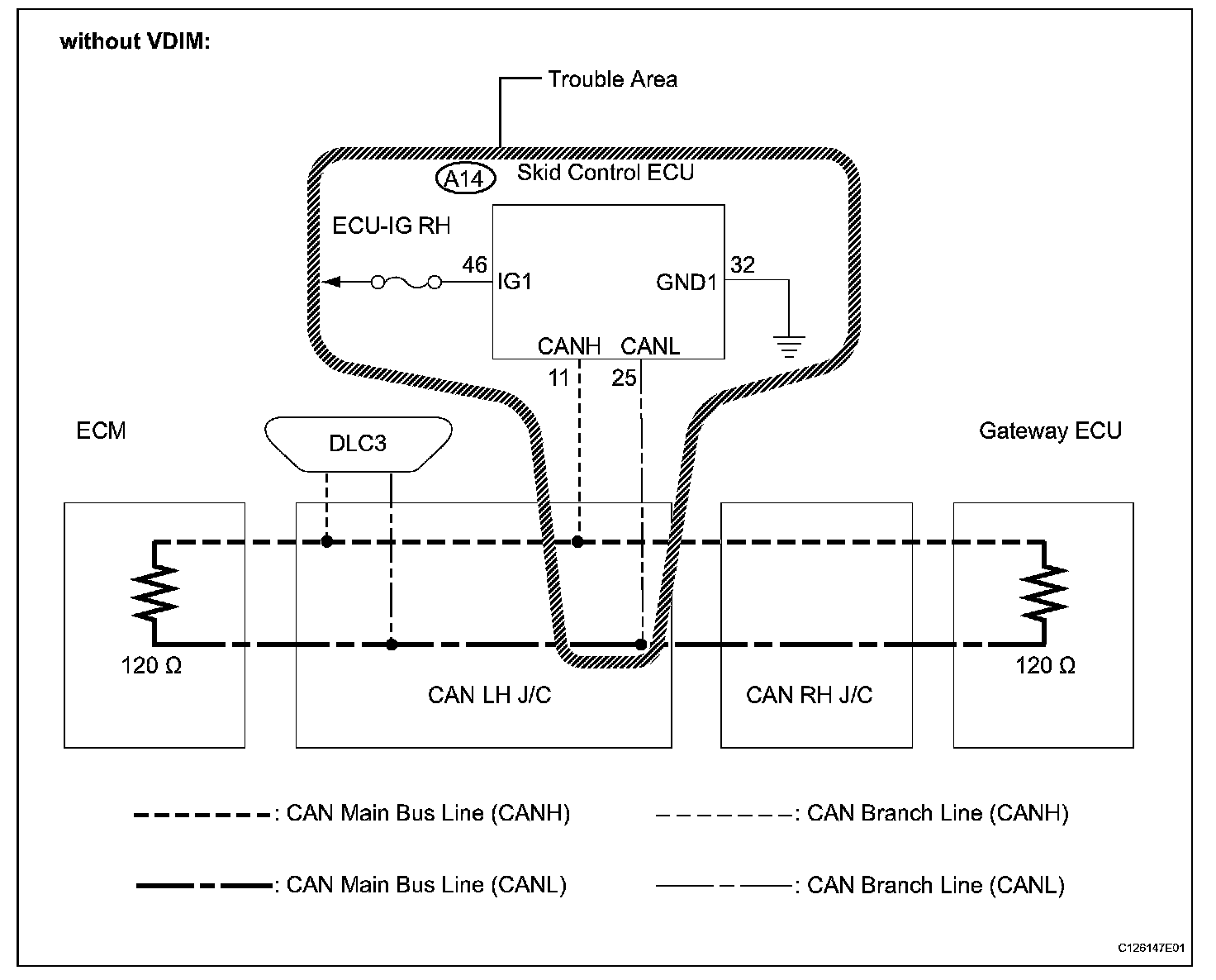

Wiring Diagram (Part 2):

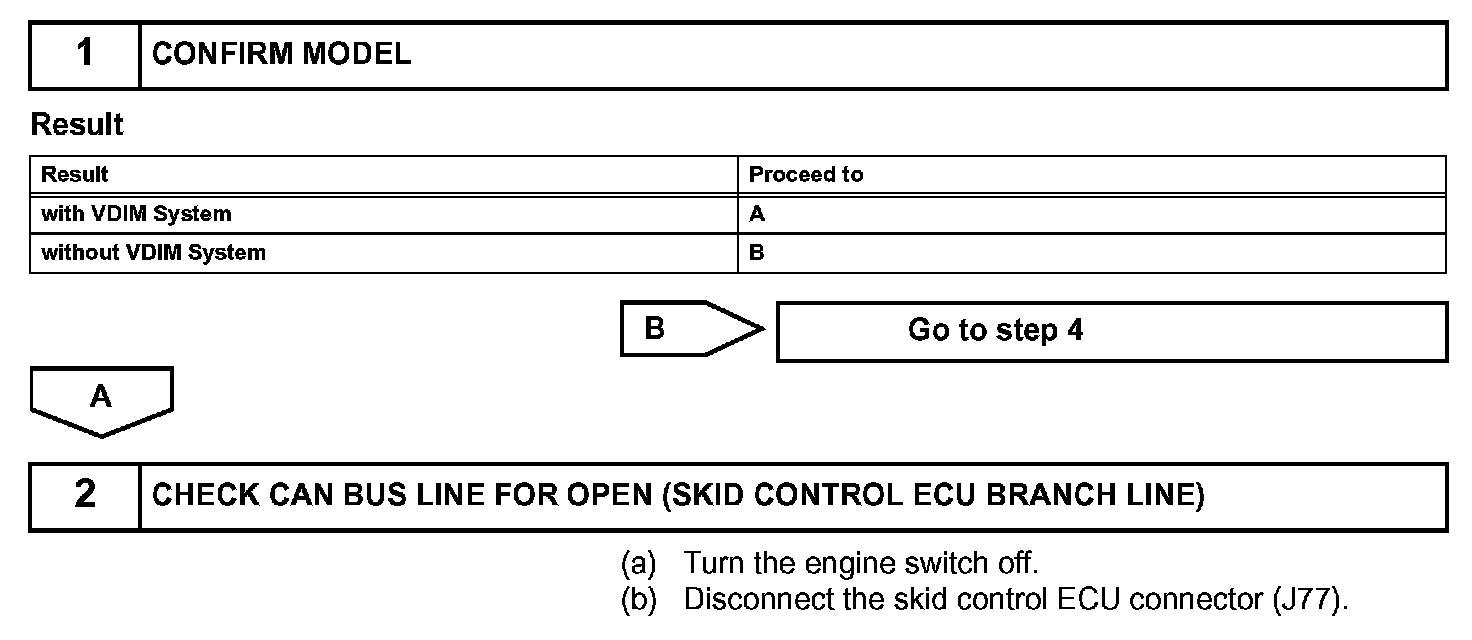

Step 1-2:

Step 2(continued)-4:

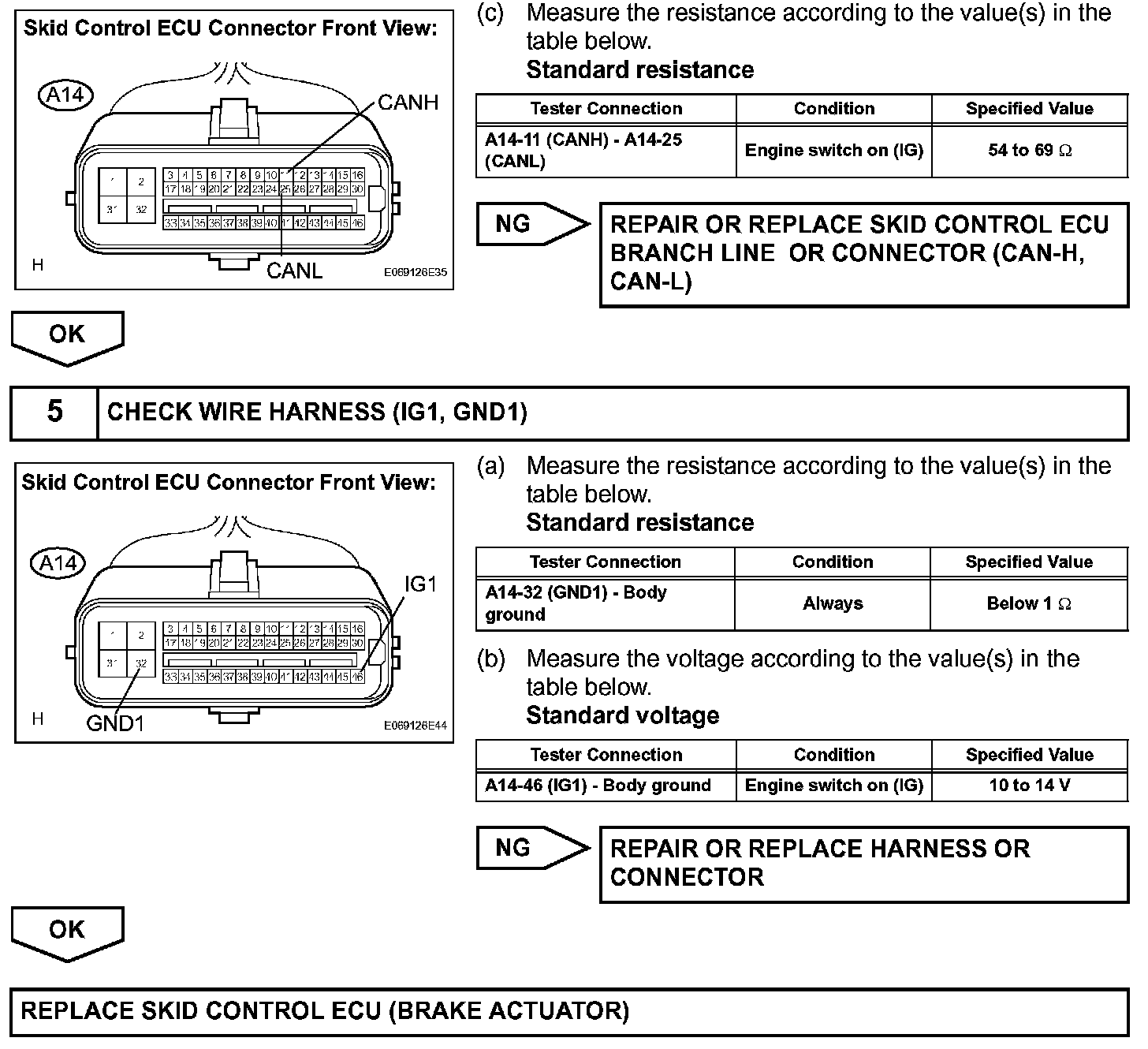

Step 4(continued)-5:

INSPECTION PROCEDURE
