Steering Angle Sensor Communication Stop Mode

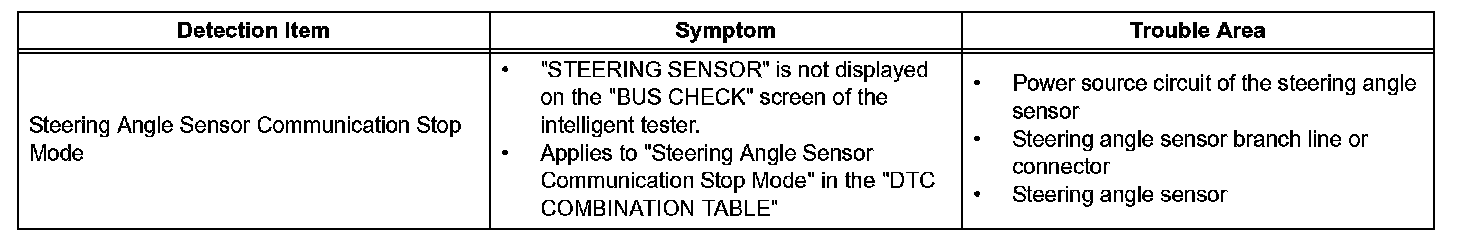

Steering Angle Sensor Communication Stop ModeDetection Item:
DESCRIPTION
HINT: "STEERING SENSOR" refers to the circuit that includes the steering angle sensor.

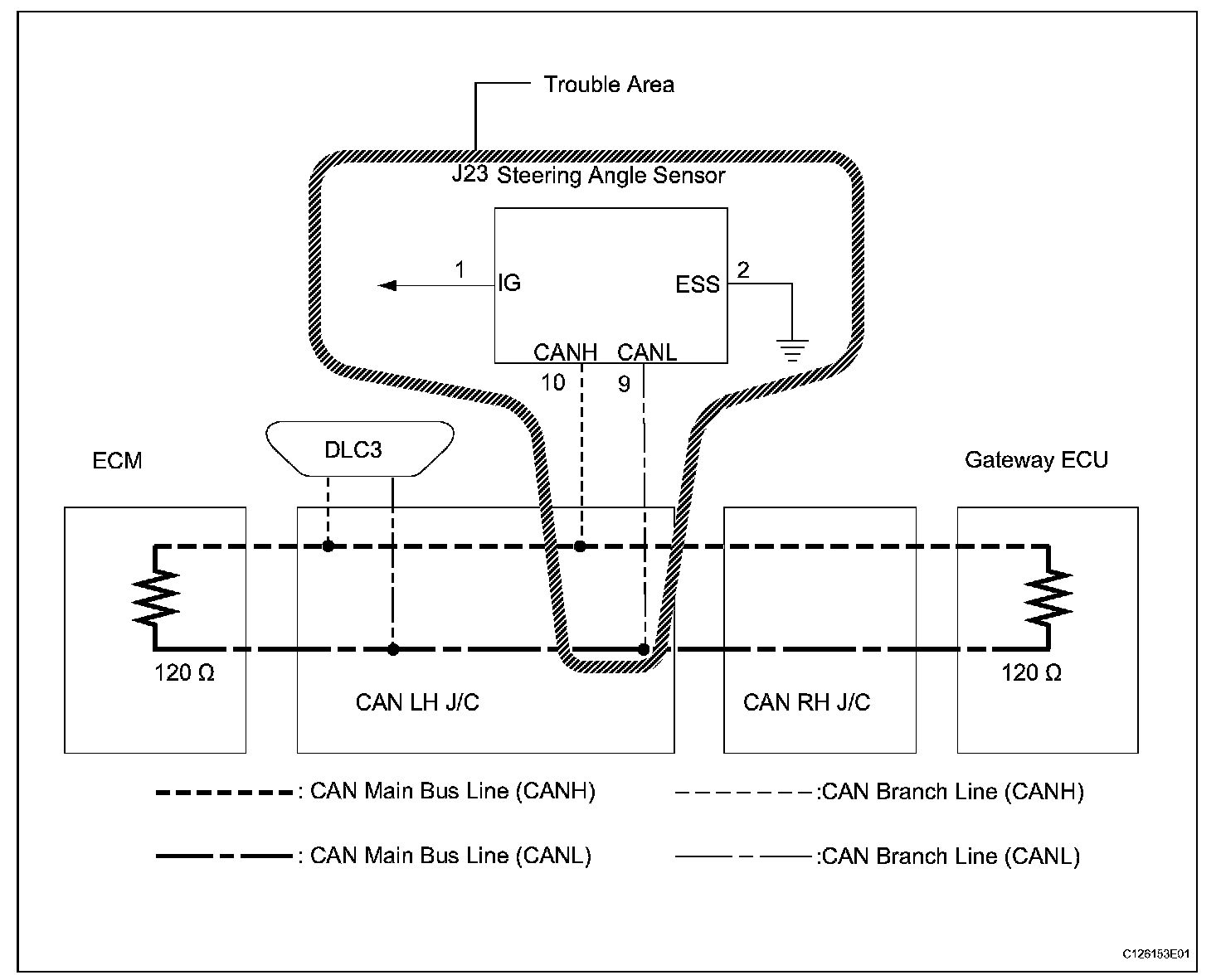

Wiring Diagram:

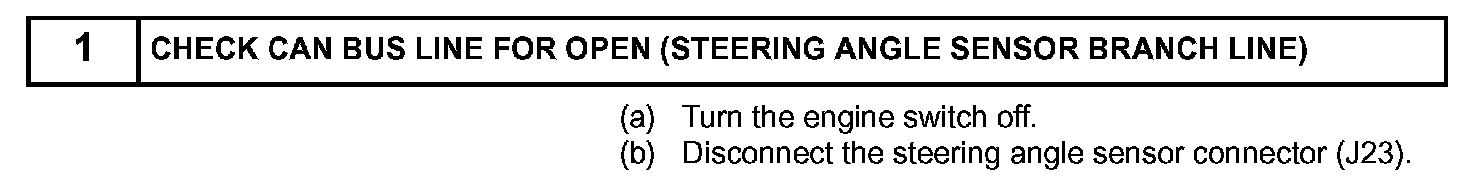

Step 1:

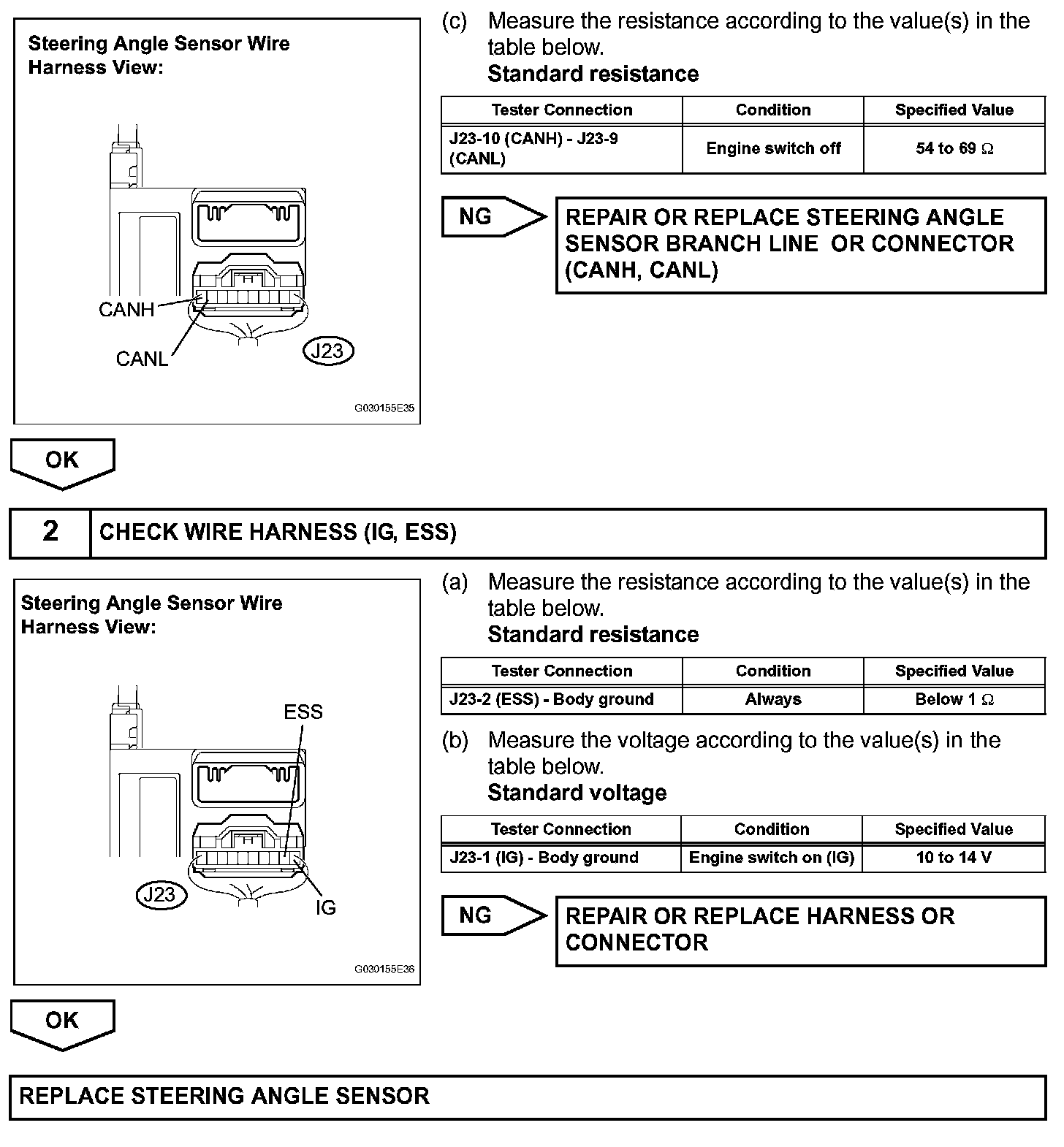

Step 1(continued)-2:
INSPECTION PROCEDURE
